Liquipoint T FTW 31, FTW 32
Endress + Hauser 15
Orientation

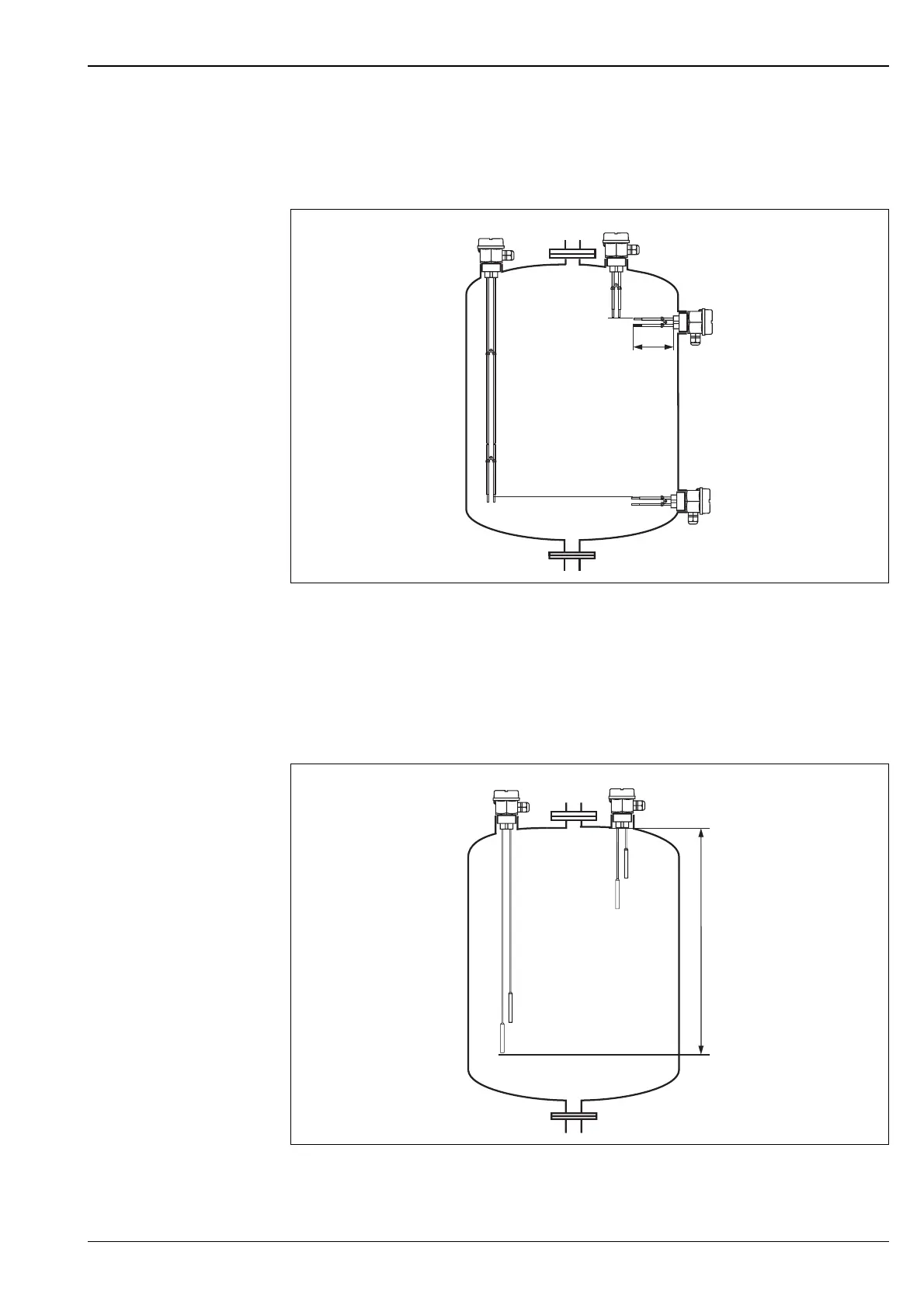

Rod probes (Dimensions in mm)
Level limit detection for standard applications in tanks made of plastic or metal.
L00-FTW3xxxx-11-05-xx-xx-002
a. Vertical mounting, minimum detection; Probe length set to the level limit required;
Rods must not come into contact with the tank.
b. Vertical mounting, maximum detection; Probe length set to the level limit required
c. Lateral mounting, maximum detection; Maximum probe length 200 mm (only applies to two-rod probes).
d. Lateral mounting, minimum detection; Maximum probe length 200 mm (only applies to two-rod probes).
Rope probes (Dimensions in mm)
Level limit detection for standard applications in tanks made of plastic or metal.
L00-FTW3xxxx-11-05-xx-xx-003
a. Vertical mounting, minimum detection; Rope length set to the level limit required;
Rope ends must not come into contact with the tank
b. Vertical mounting, maximum detection; Rope length set to the level limit required
200
b.
c.
d.
a.
250 - 15000
a.
b.
