Endress+Hauser Liquipoint T Series - Design and Dimensions (NPT 1 1;2 Connection)

Liquipoint T FTW 31, FTW 32
Endress + Hauser 19

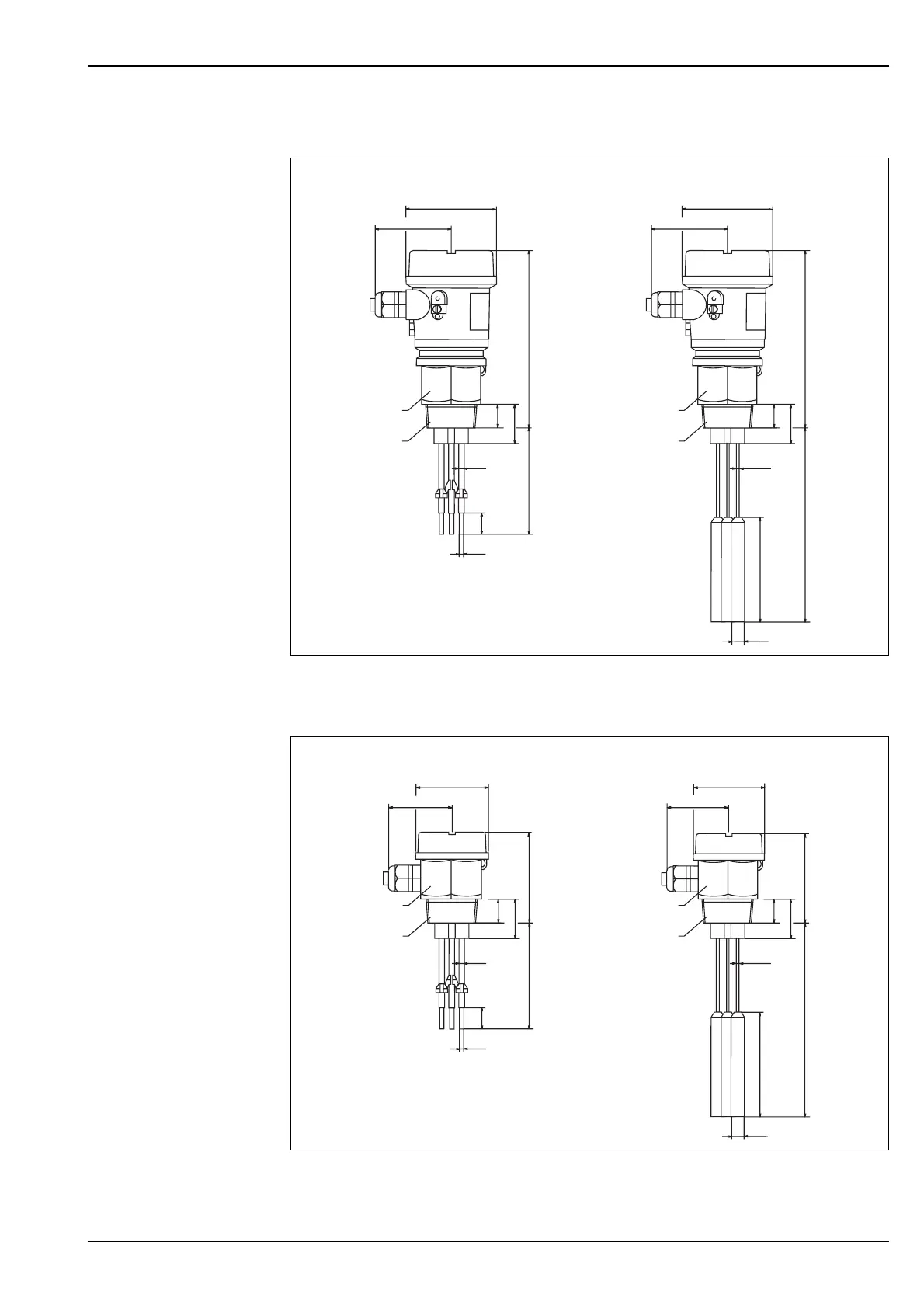

Rod and rope version with NPT 1 1/2" (compact-instrument version with electronic insert)
L00-FTW3xxxx-06-05-xx-en-003
Rod and rope version with NPT 1 1/2" (separate-instrument version without electronic insert)
L00-FTW3xxxx-06-05-xx-en-004
max. 76 max. 76
ø85 ø85
ø5
ø2,5
ø4
24
168
23,5
38,5
168
23,5
38,5
ø10
100
FTW 32
FTW 31
NPT 1½ NPT 1½
Probe length L
100 … 4 000 mm
Probe length L
250 mm
… 15 000 mm
AF 55 AF 55
max. 64
max. 64
ø66 ø66
FTW 32
FTW 31
ø5
ø4
24
ø2,5
ø10
100
NPT 1½ NPT 1½
86
23,5
38,5
86
23,5
38,5
Probe length L
100 … 4 000 mm
Probe length L
250 mm
… 15 000 mm
AF 55 AF 55
