Electrical connection Nivector FTI26
18 Endress+Hauser

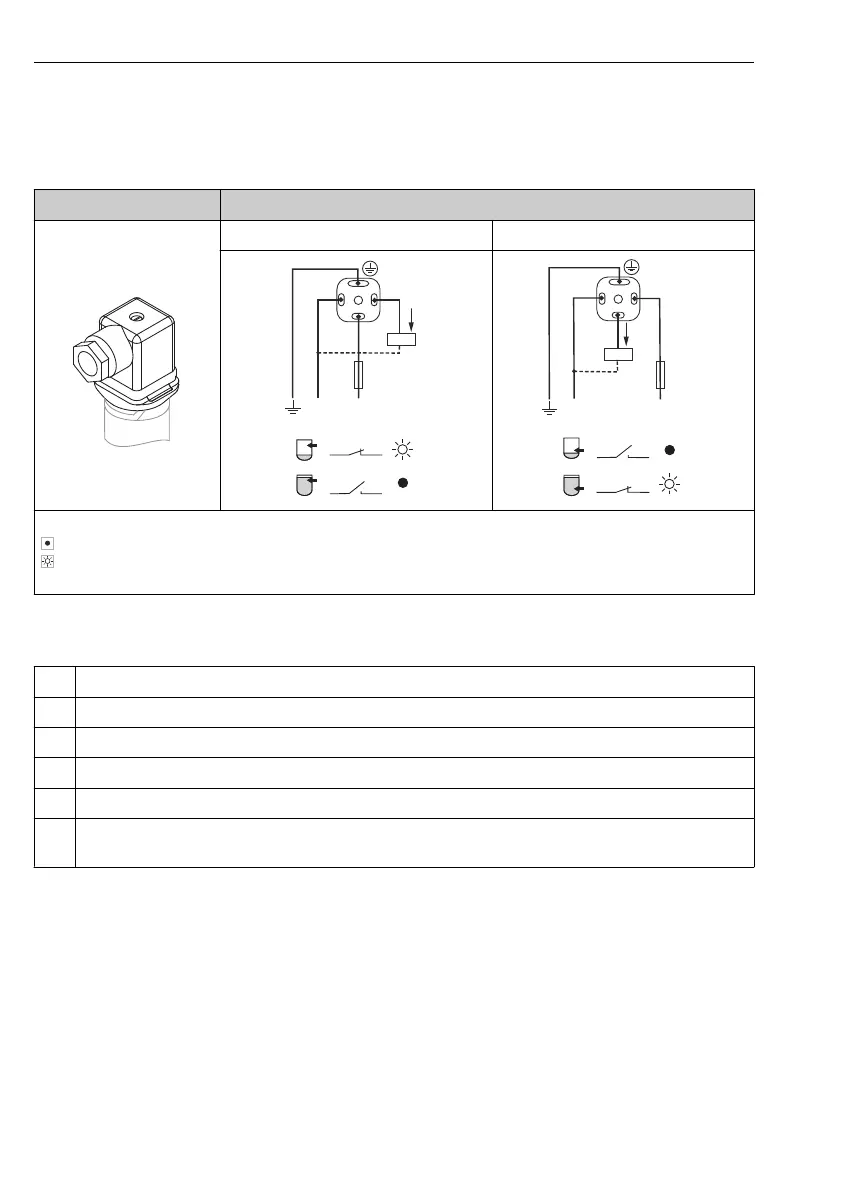

6.3 Valve plug
Depending on the assignment of the connector or the wiring of the cable, the device works in
either the MAX or MIN operating mode.
Electrical connection Mode of operation
Valve plug MAX MIN
A0022900
1
3
0.5A
L–
L+
2
K
+
–
L–
L+
3
0.5A
1
2
K
+
–
3
23
2
2
32
3
Symbols
K
Description
Yellow LED (ye) not lit
Yellow LED (ye) lit
External load
6.4 Post-connection check

Is the device or cable undamaged (visual check)?

Do the cables comply with the requirements?

Do the mounted cables have adequate strain relief?

Are the cable glands mounted and firmly tightened?

Does the supply voltage match the specifications on the nameplate?

If supply voltage is present, is the green LED lit?
With IO-Link communication: is the green LED flashing?
