Endress+Hauser Nivector FTI26 Brief Operating Instructions

Commissioning Nivector FTI26
20 Endress+Hauser
L
WARNING
Risk of injury and damage to property due to uncontrolled activation of processes!
‣
Make sure that downstream processes are not started unintentionally.
8.1 Function check
Before commissioning your measuring point, ensure that the post-installation and post-
connection checks have been performed:
• "Post-installation check" checklist→  15
• "Post-connection check" checklist →  18
8.2 Commissioning with an operating menu
For a detailed description of the IO-Link operating menu, see operating instructions.

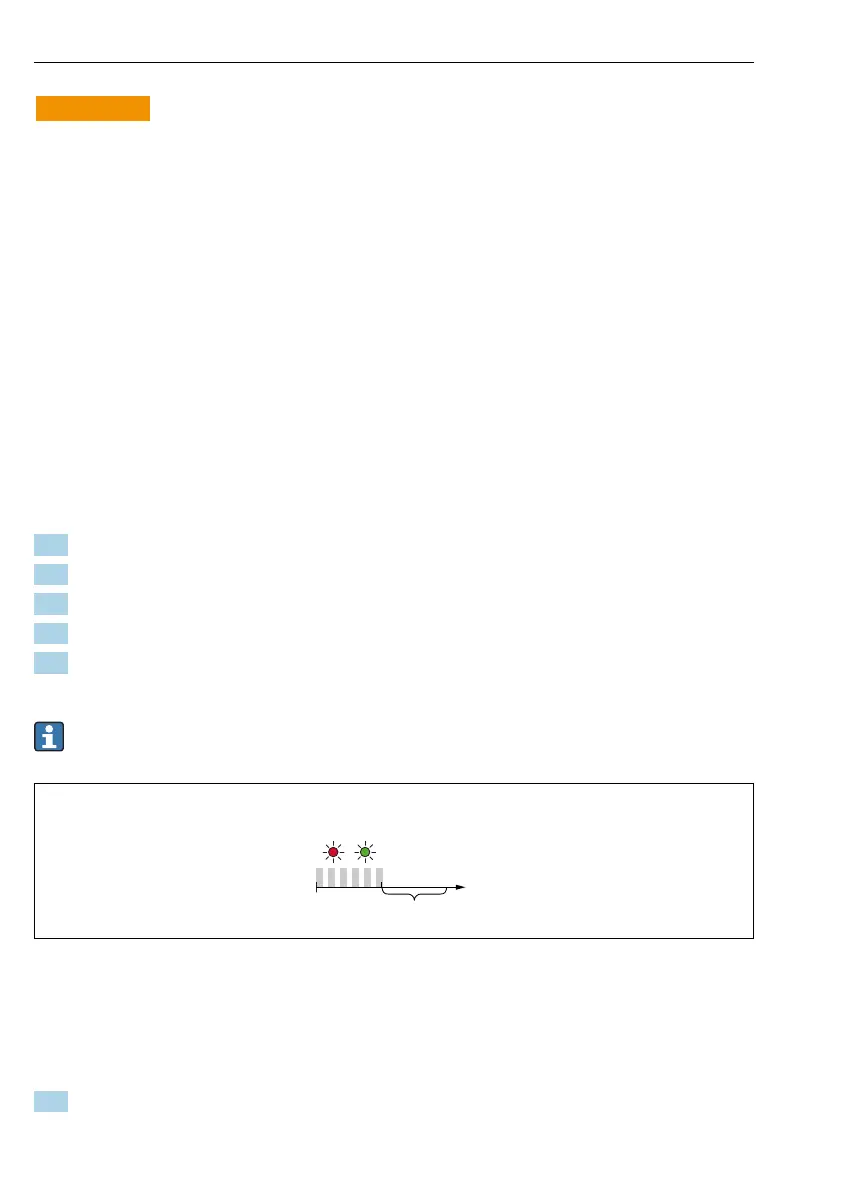

8.3 Operation with test magnet
8.3.1 Full adjustment
Prerequisite: Sensor is covered by the medium
1. Hold the test magnet against the marking on the housing.
2. Apply operating voltage to the device.
3. The green and red LEDs flash at a frequency of 1.5Hz.
4. The LEDs stop flashing after 5s.
5. Remove test magnet.
 The full adjustment is performed and the switching thresholds are set accordingly.
The test magnet must be removed in the timeframe between 5 seconds and 10 seconds.
A full adjustment is not performed if the magnet is removed outside this timeframe.
0
1.5Hz
rd/gn
5
t/s
A
A0036912
A Remove the magnet now for full adjustment.
8.3.2 Empty adjustment
Prerequisite: Sensor is free
1. Hold the test magnet against the marking on the housing
