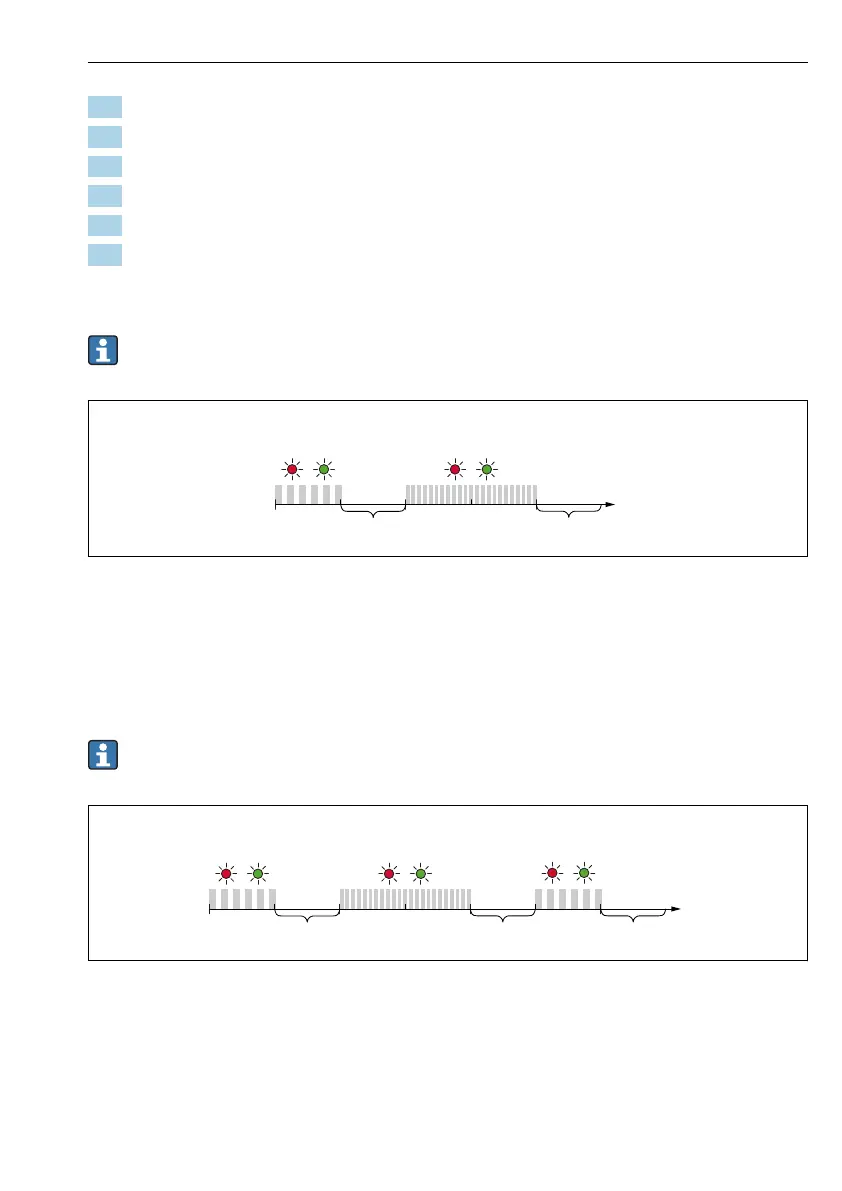

Endress+Hauser Nivector FTI26 Brief Operating Instructions

Nivector FTI26 Commissioning
Endress+Hauser 21
2. Apply operating voltage to the device
3. The green and red LEDs flash at a frequency of 1.5Hz
4. The LEDs stop flashing after 5s
5. After 10s the green and red LEDs flash at a frequency of 3Hz
6. The LEDs stop flashing after 20s
7. Remove test magnet.
 The empty adjustment is performed and the switching thresholds are set
accordingly.
The test magnet must be removed in the timeframe between 20 seconds and 25 seconds.
An empty adjustment is not performed if the magnet is removed outside this timeframe.
0 10
1.5Hz
rd/gn
5
3Hz
rd/gn
20
t/s
A
B
A0036913
A Remove the magnet now for full adjustment.
B Remove the magnet now for empty adjustment.
8.3.3 Resetting to factory settings
If the test magnet is held against the marking for ≥ 30 seconds, the switching thresholds are
reset to the factory setting. Observe time or flashing frequencies!
If a medium-specific switching threshold is active, this is signaled by a flashing green
LED indicator during the first 5 seconds of the operating voltage being applied.
0 10 25 30
1.5Hz
rd/gn
5
3Hz
rd/gn
20
1.5Hz
rd/gn
t/s
A
B
C
A0036914
A Remove the magnet now for full adjustment.
B Remove the magnet now for empty adjustment.
C Remove the magnet now to reset to factory settings.
