Installation Proline Prosonic Flow 91W
8 Endress+Hauser
2.3 Determining the necessary installation distances
The installation distances that are necessary for installation depend on:
• Insertion version: Clamp On with strapping band, installation in pipe
• Number of traverses or single-path/dual-path version
2.4 Mounting the transmitter
The transmitter can be mounted in the following ways:
• Wall mounting
• Pipe mounting (with separate mounting kit)
"
Caution!
• The ambient temperature range (–25 to +60 °C / –13 to +140 °F) may not be exceeded at
the mounting location. Avoid direct sunlight.
• If a warm pipe is used for the installation, ensure that the housing temperature does not
exceed the max. permitted value
of +60 °C (+140 °F).
a0005819

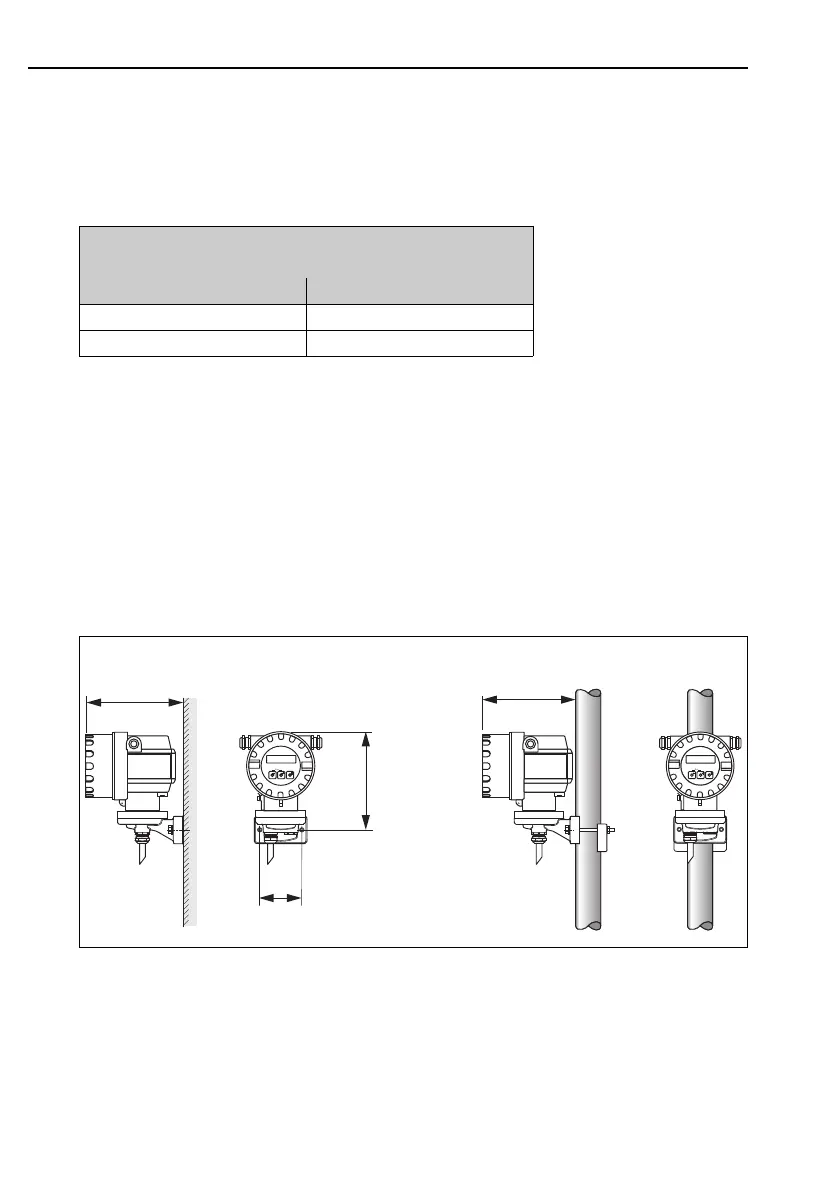

Fig. 4: Mounting the transmitter
A = Direct wall mounting, B = Pipe mounting
DN 50 to 4000 (2 to 160")
Clamp On (Strapping band)
1 traverse 2 traverses
SENSOR DISTANCE SENSOR DISTANCE
WIRE LENGTH POSITION SENSOR
190 (7.48)
Esc
E
- +
A
Esc
E
- +
B
80
(3.15)
172.5 (6.79)
&
185 ( 3.34)
&
mm (inch)
