7.8.2 HART output
This section is only valid for Operating mode = HART slave +4..20mA output.
Setup → Advanced setup → Communication → HART output → Configuration
Parameter Meaning / Action
System polling address Set the HART communication address of the device.
• Assign SV
• Assign TV
• Assign QV
Select which tank variables are to be transmitted by the HART variables.

By default, PV transmitts the same variable as the analog output and needs not to be
assigned.
7.8.3 Configuration of the Modbus output
D
E
F
C
B
A
1
1
1
1 3
2
2 4
1
HR
CDI
WP
on
SIM
2
2
3
3
4
4
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
POWER
A
1 2 3 4
A1-4
i
D
1
2 3 4
D1-4
A0031200

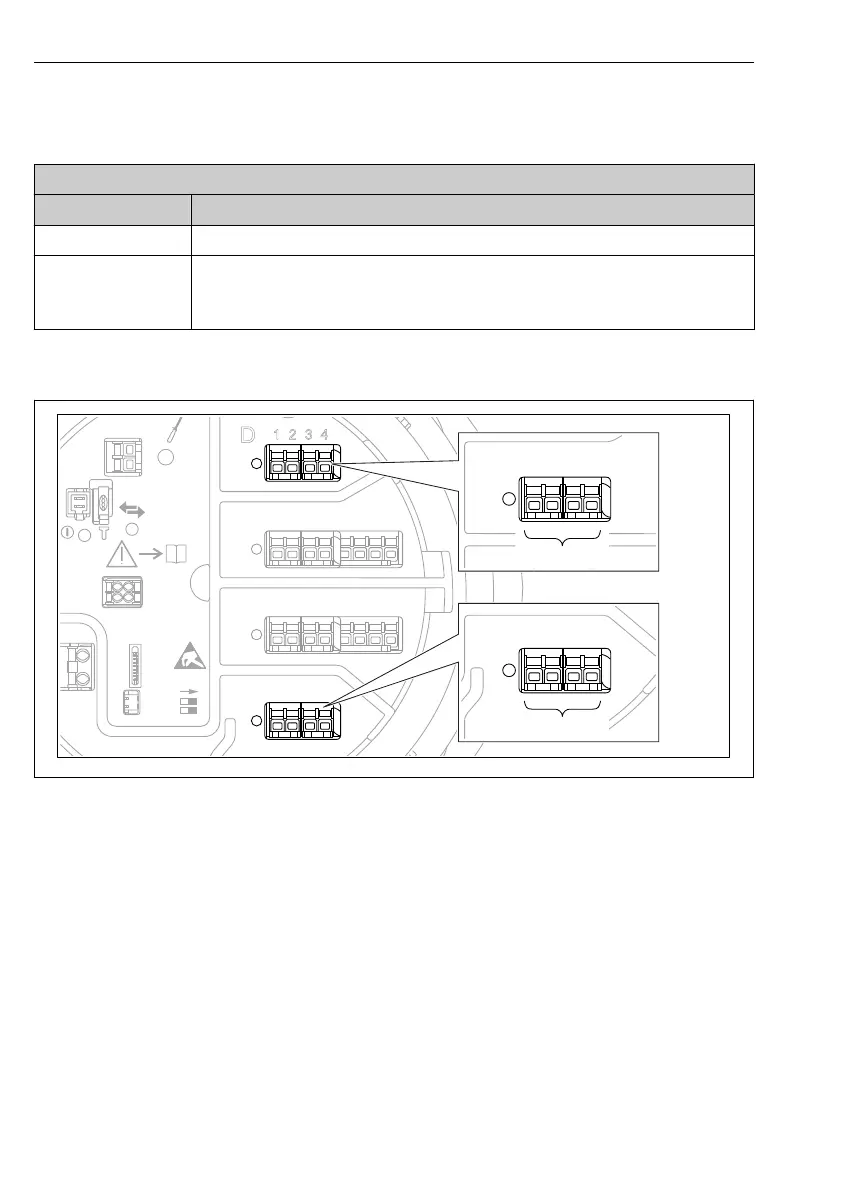

 36 Possible locations of the Modbus modules (examples); depending on the device version these
modules may also be in slot B or C →  31.
The Proservo NMS8x acts as a Modbus slave. Measured or calculated tank values are stored in
registers which can be requested by a Modbus master.
