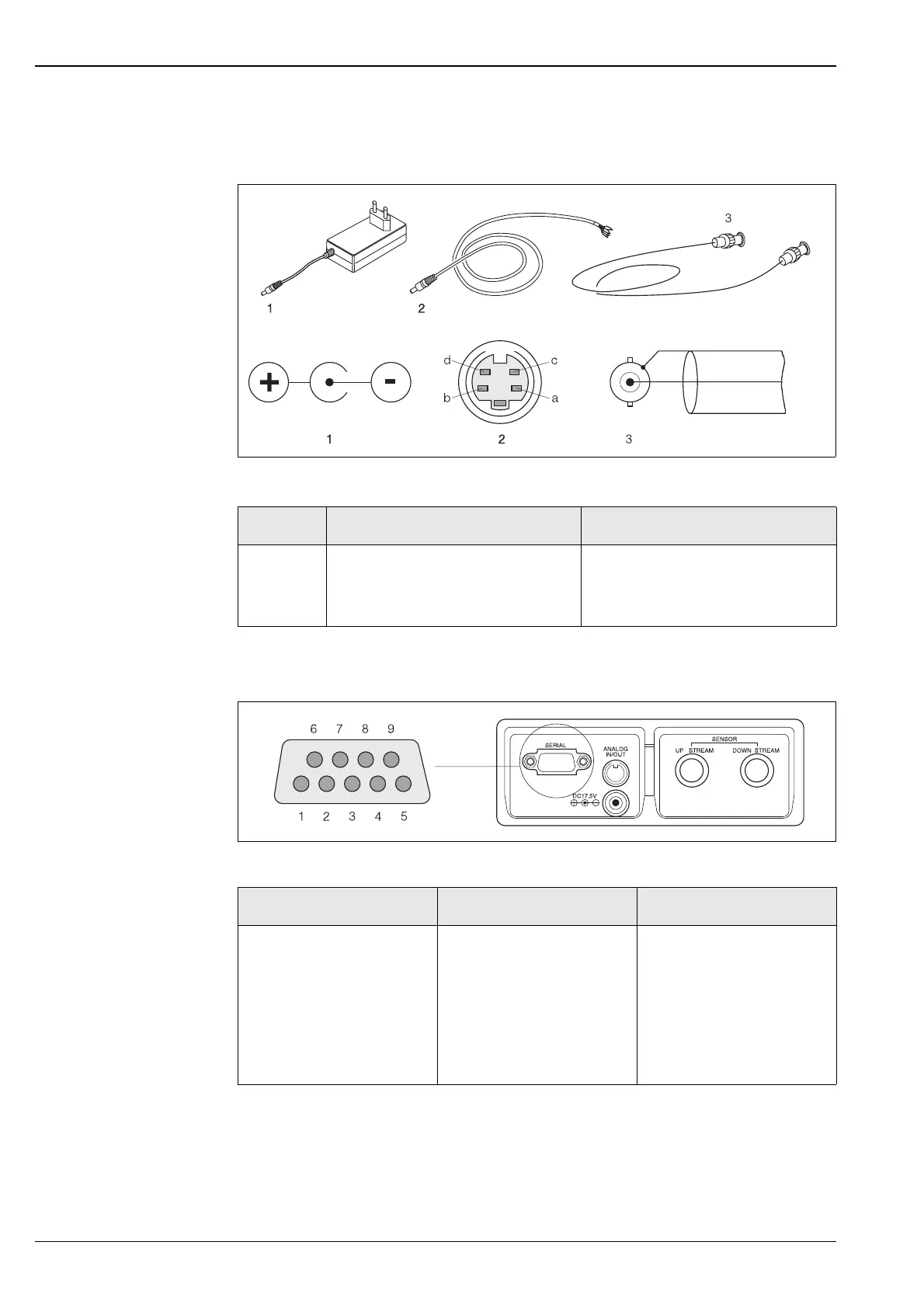

Cable connection Power supply connection of standard power supply (1)
Signal cable connection (input/output), circular connector, 4 pin (2)
Sensor cable connection (up stream/down stream), BNC connector (3)
Cable connections at the transmitter
Serial communication connection for data logging:
• D-SUB, 9 pin
D-SUB, 9 pin, socket
Pin Item Color
a
b
c
d
Analog input +
Analog output -
Analog input -
Analog output +
black
red
white
blue
Pin No. Symbol Item
1
2
3
4
5
6
7
8
9
–
R x D
T x D
D T R
G N D
D S R
R T S
C T S
–
–
Recive data
Send data
Data terminal ready
Signal ground
Data set ready
Send request
Send ready
–
