Digital field display 6 Operation
37
5.1.4 Connecting a passive current source

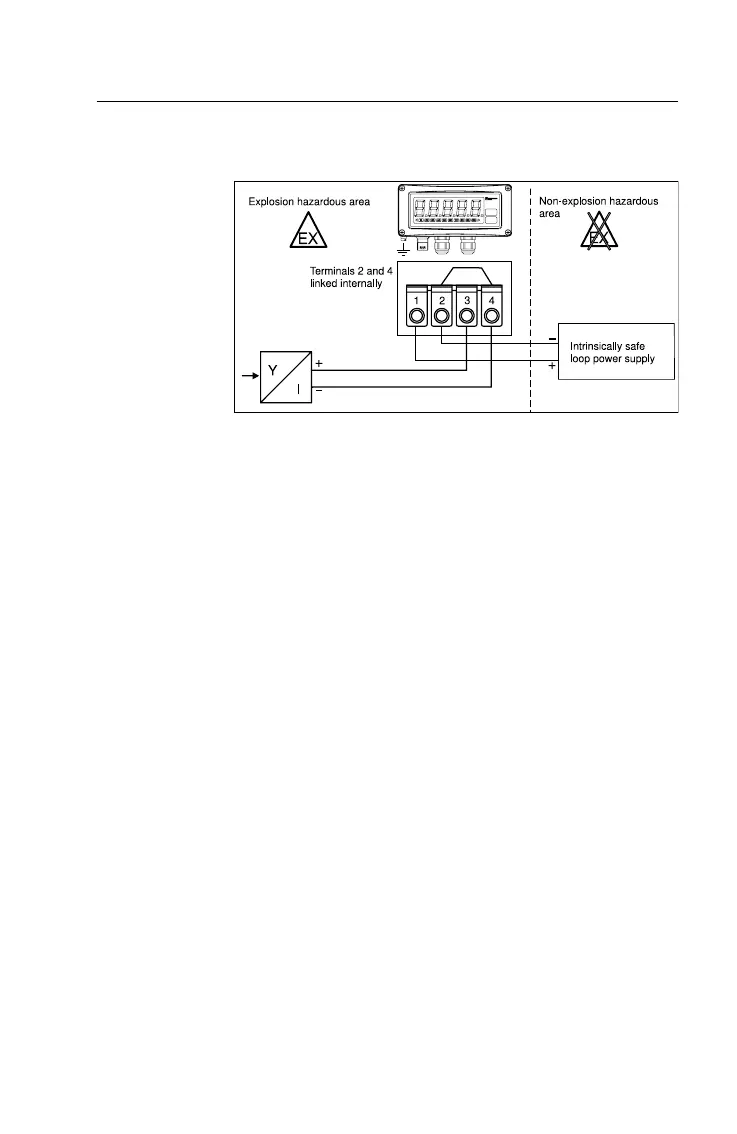

E.g. 2-wire transmitter with additional loop power supply:
ƒig. 6: Connecting a passive current source
An Ex certified unit can be applied as a front end display in the
non-hazardous area. This is not valid the other way round (non-
Ex unit in Ex area)!
5.2 Connection control
#
Before replacing the housing lid please make sure that the
electronics have been returned to the upright position and the
lock on the left hand side has latched in.
6 Operation
6.1 Operation overview
The following chapters inform on the commissioning and
operation of the field mounted display. These functions are
identical for both the Ex and non-Ex display versions.
