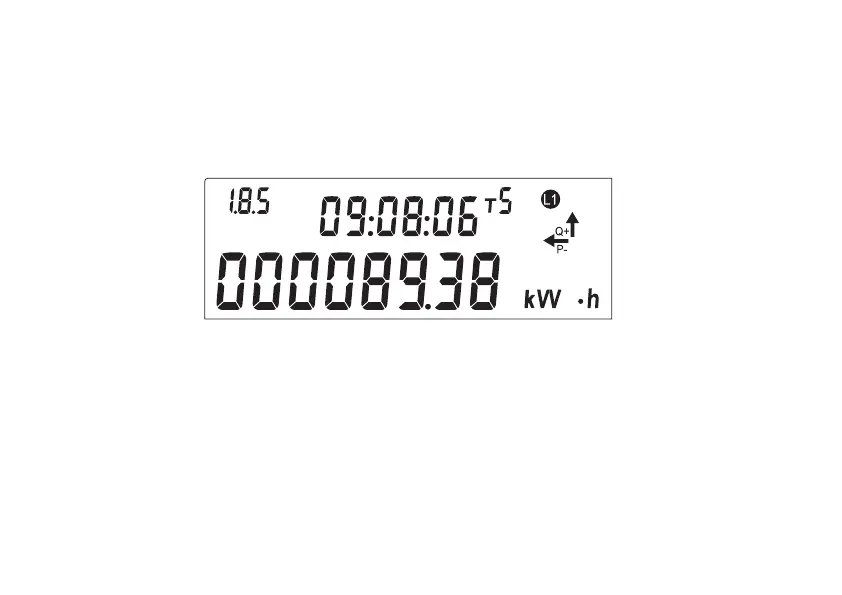

Figure 4.2 shows the value («00089.38 kW•h») of the active imported energy on an accrual basis for the fifth
tariff (OBIS code value is «1.8.5»). At the present moment:
• the active tariff is 5 («Т5»);
• the current time is «09h08m06s»;
• the reactive power direction is «Q+», active power direction is «P-»;
• phase «L1» is normal, energy is measured by the phase wire.
Figure 4.2 – Active imported energy on an accrual basis for the eights tariff
Figure 4.3 shows the value («00096.89 kVAr•h») of the reactive exported energy on an accrual basis for the third
tariff (OBIS code value is «4.8.3»). At the present moment:
• the active tariff is 3 («Т3»);
• the current time is «18h58m39s»;
• the reactive power direction is «Q+», active power direction is «P+»;
• phase «L1» is normal, energy is measured by the neutral wire.
