Starting a Charge Cycle
The charger will start automatically when a battery is connected or push the Stop/Start button if
the battery is already connected.
Delayed Start
If the charger was programmed for delayed start, charging will begin following that delay. When
the battery is plugged in to the charger, the display shows the time remaining before the
programmed charging starts.

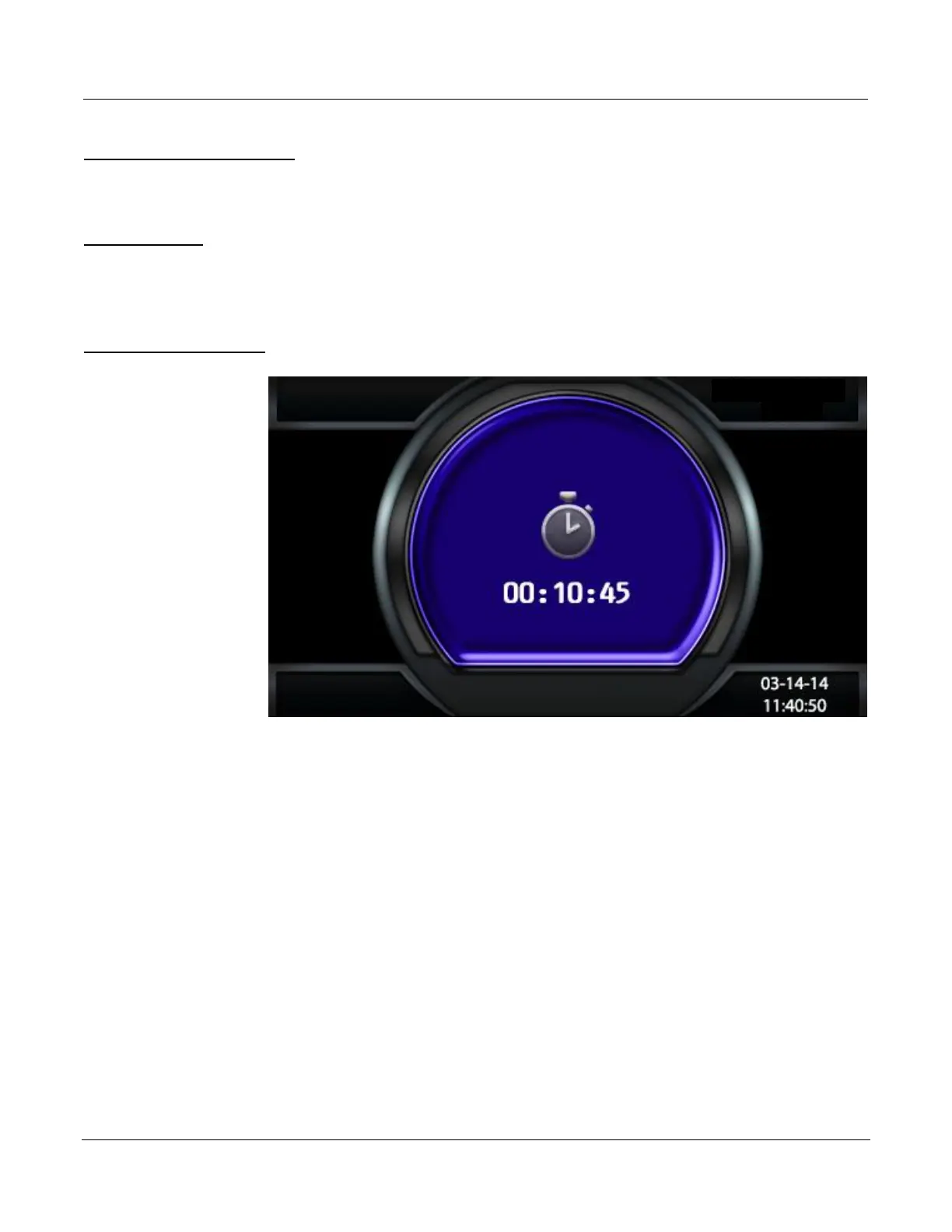

Count Down Display
Without a Wi-iQ
®
Device
If the Wi-iQ
®
device adapter is not enabled or no Wi-iQ devices are in range, effective
charging starts after the programmed delay. The charger uses Profile, Capacity and
Temperature settings programmed in the Configuration menu.
With a Wi-iQ
®
Device
If a Wi-iQ
®
device adapter is present and one or more Wi-iQ device is in range, the charger
will turn on and apply current to the battery. The display will show “SCAN” followed by
“IQLINK”. This routine determines which Wi-iQ device in range the battery charger is
connected to. Once the charger makes the determination it downloads data from Wi-iQ
device, displays the battery S/N, updates the profile capacity, and temperature for
charging, and starts the main charge.
