Enfinity 1000TL - Dimensions and Weight

9
•TerminalsofPVinverter

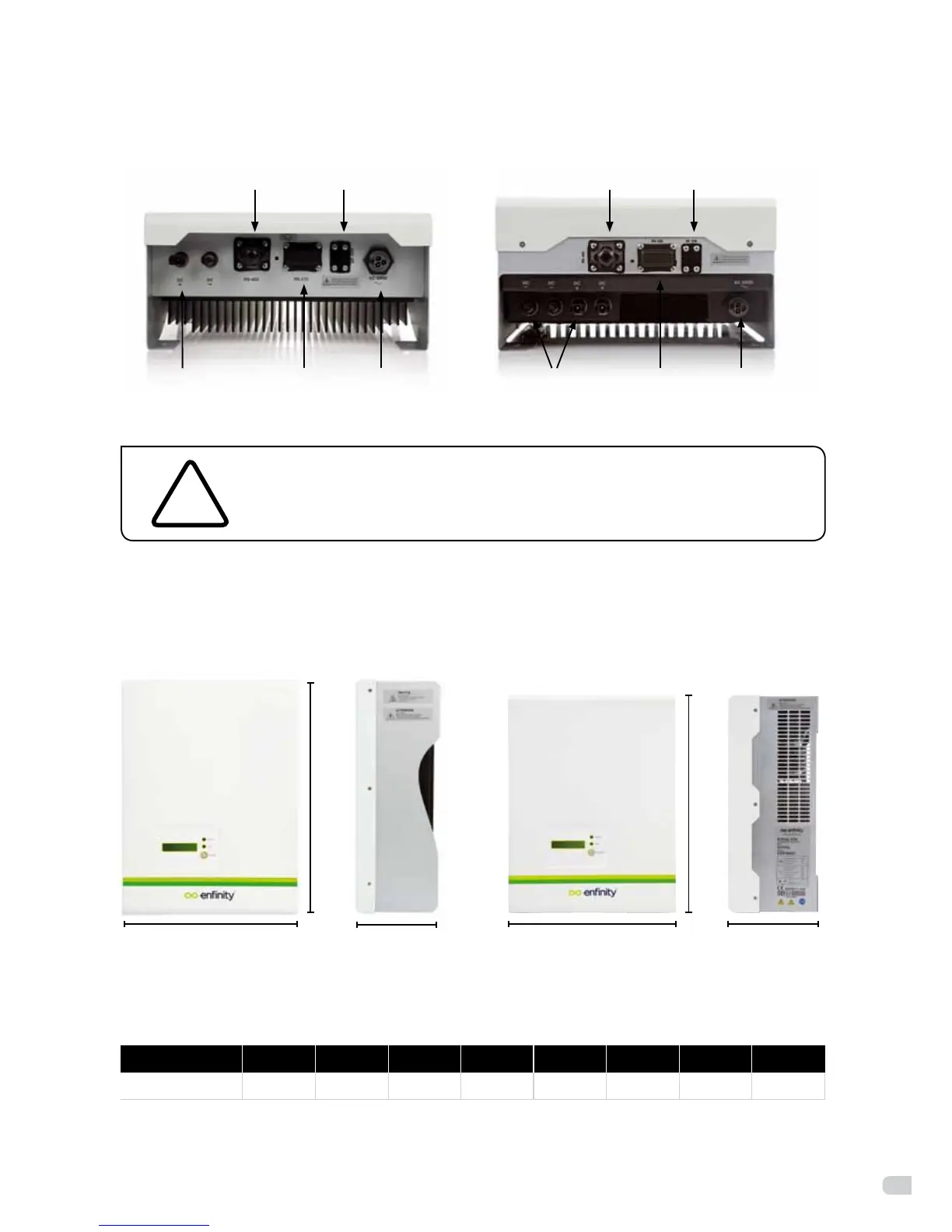

Figure 4: terminals of Enfinity 1000TL-2800TL inverters Figure 5: terminals of Enfinity 3300TL-5000TL inverters
!
CAUTION!
About SF-SW. Risk of electric shock! Only authorized personnel is allowed to set
the DIP switch (see page 33).
3.3 Dimensions and weight
•Dimension
Figure 6: Enfinity 1000TL-2800TL inverters Figure 7: Enfinity 3300TL-5000TL inverters
•Weight
Enfinity model 1000TL 1650TL 2200TL 2800TL 3300TL 3680TL 4400TL 5000TL
Weight 17.1kg 17.1kg 17.5kg 17.9kg 18.9kg 19.2kg 19.2kg 19.2kg
329mm
433mm
180mm
RS-485RS-485
DC InputDC Input RS-232RS-232 AC OutputAC Output
SF-SWSF-SW
332mm
450mm
161mm
