High DC Bus High DC Bus
DC bus voltage is higher
than the set value
DC Sensor Fault DC Sensor Fault Input DC detector failure
GFCI Failure GFCI Failure
Leakage current detecting
circuit failure
Others
Lock Lock Froze the information
Reconnect Reconnect
Reconnect to grid after
relay disconnect
Inverter’s Version Ver xx.xx Version information
8 Communication and monitoring
8.1 Communication interface
This product has a standard communication interface RS485 and RS232. Operating
information like output voltage, current, frequency, fault information, etc., can be
delivered to PC or other monitoring equipment via RS485 and RS232.
8.2 Communication
When the user wants to know the information of the power station and manage the entire power system,
we oer below two types of communications.
1 RS-232 Communication
RS-232 is one standard communication interface. It transmits the data between PC and
one single Enfinity inverter (figure 27).
RS-232
max. 12m

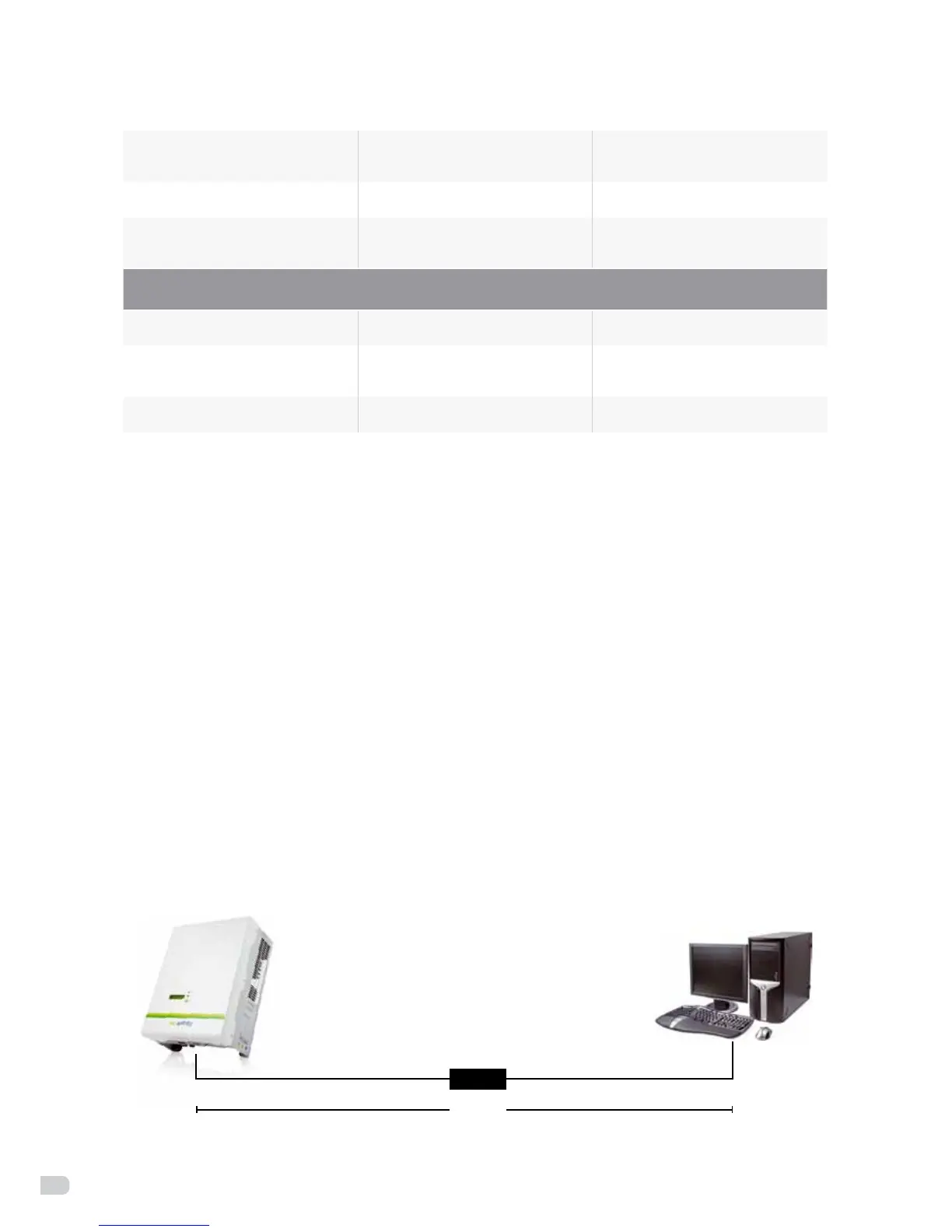

Figure 27: RS-232 communication diagram
