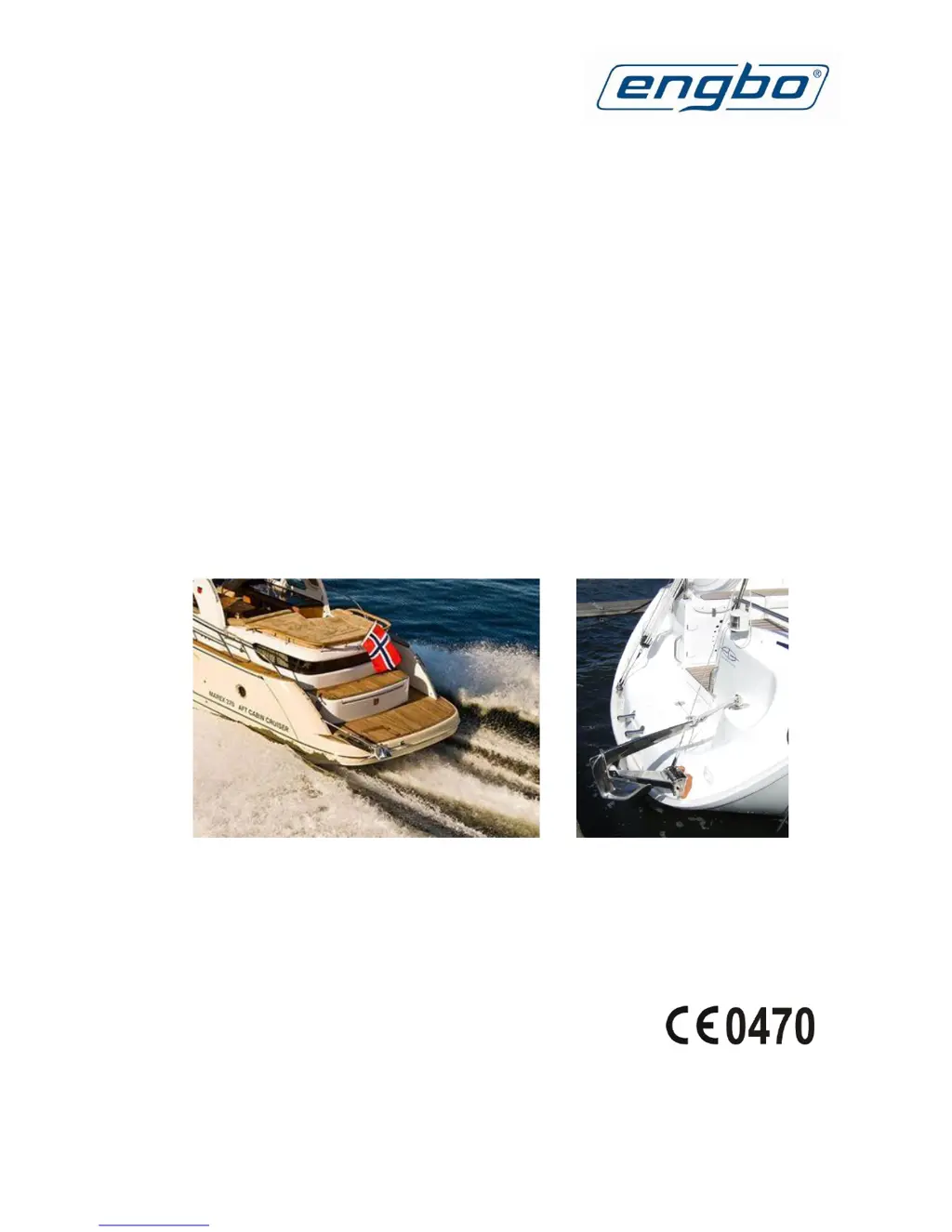

Engbo MAXI 32 User Manual (English)

Other manuals for Engbo MAXI 32

Questions and Answers:

A
allenjessicaAug 9, 2025
What to do if Engbo MAXI 32 windlass does not work or pulls very poorly?
- J
  Joseph LuceroAug 9, 2025
  If your Engbo boating equipment windlass isn't working well, start by checking the main power supply. Measure the voltage in the battery cables at the point where they connect to the windlass while it's running. If the voltage is less than 10.5V, investigate the cause. Inspect all connection points, including the main switch, fuse, battery shoes, and the battery's overall condition and voltage. If the voltage is above 10.5V but the motor still doesn't work, the electronic protection function might have shut it down due to prolonged use or overload. Let it cool down for about 20 minutes before trying again.
J
Jacqueline PenaAug 16, 2025
How to troubleshoot Engbo Boating Equipment if the windlass is completely dead?
- E
  Edward EnglishAug 16, 2025
  If your Engbo boating equipment windlass is completely dead, begin by verifying that the main switch is in the ON position and the fuse is intact. Ensure all connection points are making proper contact and that all connections align with the diagrams provided in the manual. Finally, confirm that there's sufficient voltage being supplied to the windlass motor.
P
Pamela RhodesAug 25, 2025
Why Engbo MAXI 32 Boating Equipment windlass will not drop anchor and only winds in for 3 s?
- J
  Joel SantiagoAug 25, 2025
  If your Engbo boating equipment windlass only winds in for 3 seconds and refuses to drop anchor, check that the connections to the electronic control unit (1, 2, and 3) match the diagram. Try swapping connections 1 and 3; this should restore correct function.
M
Michael RhodesAug 31, 2025
What to check if auto stop function does not work on Engbo Boating Equipment?
- D
  Dwayne BruceAug 31, 2025
  If the auto stop function isn't working on your Engbo boating equipment, specifically on rope windlasses, start by checking the following: - Ensure the connections to points 4, 5, and 6 are correctly configured according to the diagram. - Verify that the voltage to the emitter (between points 4 and 6) exceeds 10 V DC. - Confirm that the auto stop wires are properly positioned. - Check that the auto stop emitter is at the correct distance from the rope. If the voltage is adequate and the emitter distance is correct, but the lamp remains unlit, the emitter likely needs replacement.

Engbo MAXI 32 Specifications

General

Model	MAXI 32
Category	Boating Equipment
Voltage	12V / 24V
Type	Anchor Winch
Chain Size	8 mm
Rope Size	14 mm
Material	Stainless Steel

Summary

Introduction

General Procedures and Safety

Safety and Operational Guidelines

Essential guidelines for safe and proper operation of Engbo Maxi windlasses.

Operating Instructions

Preparation and Anchoring

Steps for preparing the boat and dropping the anchor.

Setting Off and Raising Anchor

Procedures for departing from shore and retrieving the anchor.

Wireless Remote Control Operation

Instructions for using the wireless remote control, including its functions.

Engbo Anchor System Description

System Description and Components

Overview of Engbo MAXI windlasses and their electronic control unit.

Control Panel and Remote Options

Standard Touch Panel

Details of the standard watertight touch panel for windlass control.

Wireless Remote Control Systems

Information on different wireless remote control models and features.

General Installation Guidelines

Windlass Mounting and Anchor Bracket

Guidance on windlass placement and choosing the correct anchor bracket.

Hull Conduit and Anchor Rope

Fitting hull conduits and selecting appropriate anchor rope.

Safety Line and Auto Stop Features

Instructions for fitting safety lines and understanding the auto stop function.

Wireless Remote Antenna Setup

Steps for fitting the aerial and coding the wireless remote.

Wireless Remote Control Coding

Pairing Remote and Receiver

Procedures for pairing the wireless remote control with the receiver unit.

Dimensional Sketches

Maxi 31, 32, 33, 34, 38 Series Dimensions

Physical dimensions for Maxi 31, 32, 33, 34, and 38 series windlasses.

Technical Specifications

Motor, Rope, and Chain Data

Specifications for motor output, rope, and chain including breaking strain.

Performance and Electrical Data

Details on pulling power, speed, power consumption, and battery requirements.

Weight, Auto Stop, and Boat Size

Specifications for unit weight, auto stop function, and recommended boat size.

Electrical Wiring and Connections

Switch Panel Wiring

Connecting the standard touch panel to the windlass control box.

Auto Stop and Motor Cable Connections

Wiring the auto stop switch and connecting motor/battery cables.

Battery, Main Switch, and Fuse Installation

Critical steps for safely connecting the battery, main switch, and fuse holder.

Electrical Wiring Diagram

Schematic of the complete electrical system for the windlass.

Fitting Instructions

General Fitting Advice

General guidance for positioning and fitting the windlass unit.

Hull, Stern, and Roller Fittings

Instructions for fitting hull conduits, line guides, and anchor rollers.

Fitting the Maxi 31 Windlass

Specific instructions for installing the Maxi 31 anchor winch.

Fitting the Maxi 32 Windlass

Specific instructions for installing the Maxi 32 anchor winch.

Maxi 32 Box Installation

Instructions for installing the Maxi 32 rope or chain box.

Fitting the Maxi 33 Windlass

Specific instructions for installing the Maxi 33 anchor winch.

Fitting the Maxi 40 Windlass

Specific instructions for installing the Maxi 40 anchor winch.

Fitting the Maxi 34-V Windlass

Instructions for installing the Maxi 34-V anchor winch.

Fitting the Maxi 34-D Windlass

Instructions for installing the Maxi 34-D anchor winch.

Fitting the Maxi 34-G Windlass

Instructions for installing the Maxi 34-G anchor winch.

Maxi 34-G Component Assembly

Diagram and notes for assembling Maxi 34-G components.

Fitting the Maxi 34-S Windlass

Instructions for installing the Maxi 34-S anchor winch.

Fitting the Maxi 34-H Windlass

Instructions for installing the Maxi 34-H anchor winch.

Fitting the Maxi 38 Windlass

Instructions for installing the Maxi 38 anchor winch.

Auto Stop Function and Indicators

Auto Stop Operation and Adjustment

How to operate and adjust the auto stop switch.

Fitting Auto Stop Rope Indicators

Steps for fitting brass wire indicators for the auto stop function.

Maintenance and Battery Replacement

Wireless Remote Battery Replacement

Guide for replacing batteries in the wireless remote control unit.

Replacing Line Wheels and Gypsies

Procedure for replacing worn line wheels or gypsies on the windlass.

Line Guide Adjustment and Winter Storage

Adjusting the line guide spring and preparing for winter storage.

Troubleshooting Common Issues

Diagnosing and Resolving Windlass Faults

Guide to diagnose and fix common windlass operational problems.

High Current Installation Considerations

General High Current Safety

Essential safety precautions for high-current installations.

Battery Selection and Requirements

Guidance on selecting appropriate battery capacity and type.

Battery Cable, Lug, and Fuse Connections

Correct installation of battery cables, lugs, and fuse holders.

Main Switch and Control Box Wiring

Procedures for connecting the main switch and control box.

Motor Terminal Connections

Correctly connecting cables to the motor terminals.
