Fitting instructions
General information
Position the windlass as high as possible so that there is plenty of space for the rope under it.
The bottom edge of the line wheel should be at least 50 cm above the surface on which the
rope (or chain) is to lie. This will leave room for 50 m of 16 mm woven Robline anchor rope or
approx. 30 m of chain.
If the height is less than 50 cm, check that the rope (or chain) does not bunch up against the
underside of the windlass. If this is the case, use a shorter rope (or chain).
We recommend side position of the windlass. Avoid any conflict between the anchor and the
side wave that turns in directly behind the boat.
NB Remember to secure the rope to the boat beneath the windlass at the point where the
rope runs out.

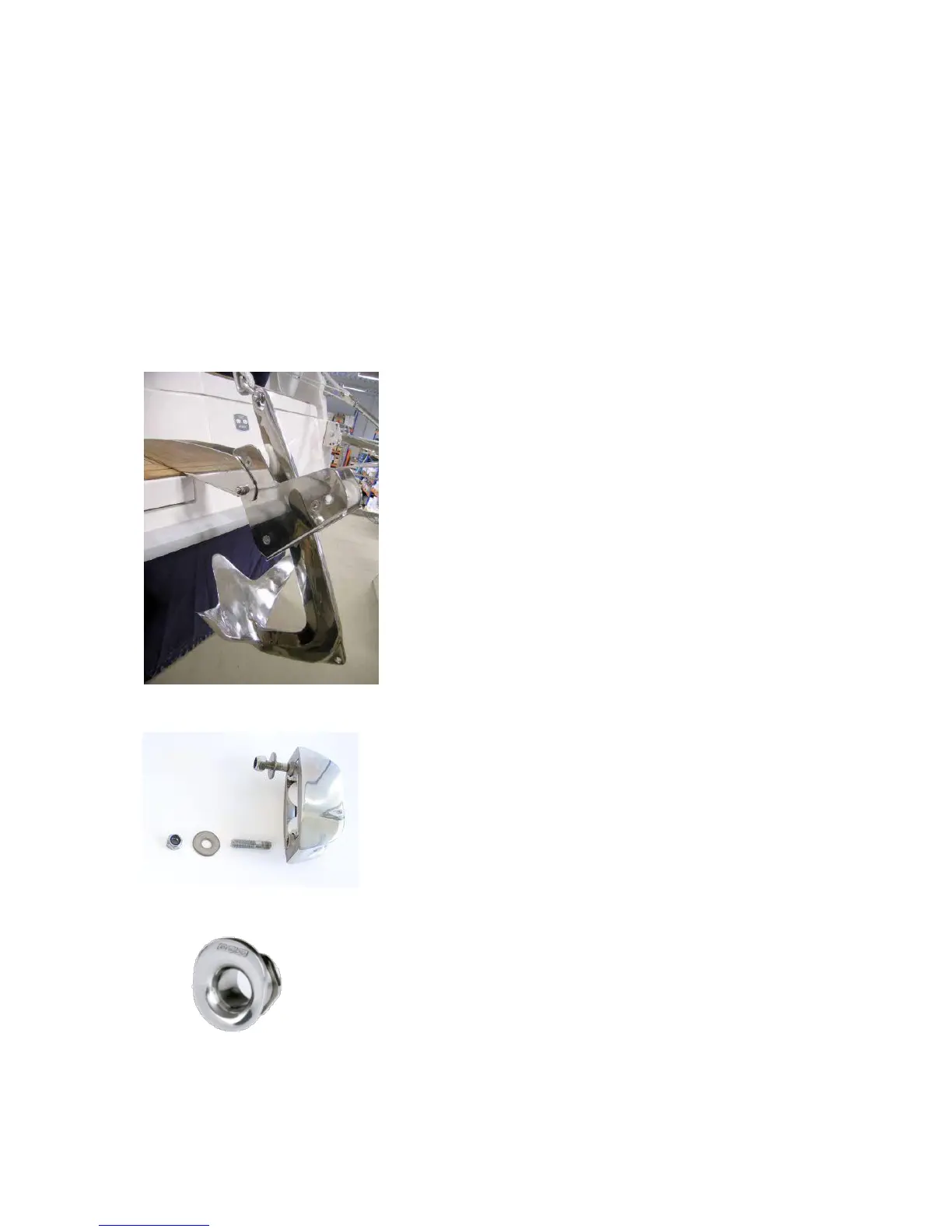

Hinged platform roller
Fit the anchor bracket with the pulleys beyond the edge of
the platform so that the anchor/rope clears the platform
when the anchor is raised.
Line guide in the stern
Check that the opening in the hull for the rope is correct in
relation to the direction of the rope. To prevent unnecessary
wear, the rope should not touch the edge of the opening either
vertically or horizontally. The opening must be oval (from top
to bottom) to accommodate the play in the rope roller when
the windlass is used.
Art. nr. 68-00008
Art. nr. 39-73000
Line guide
If it is difficult to lead the rope directly from the line wheel
to the anchor roller, it is a good idea to use a hull conduit
with pulleys, for instance 68-00008 or the simple
39-79000 to lead the rope through the hull.
The hull conduit may be installed with studs as shown in
picture.
