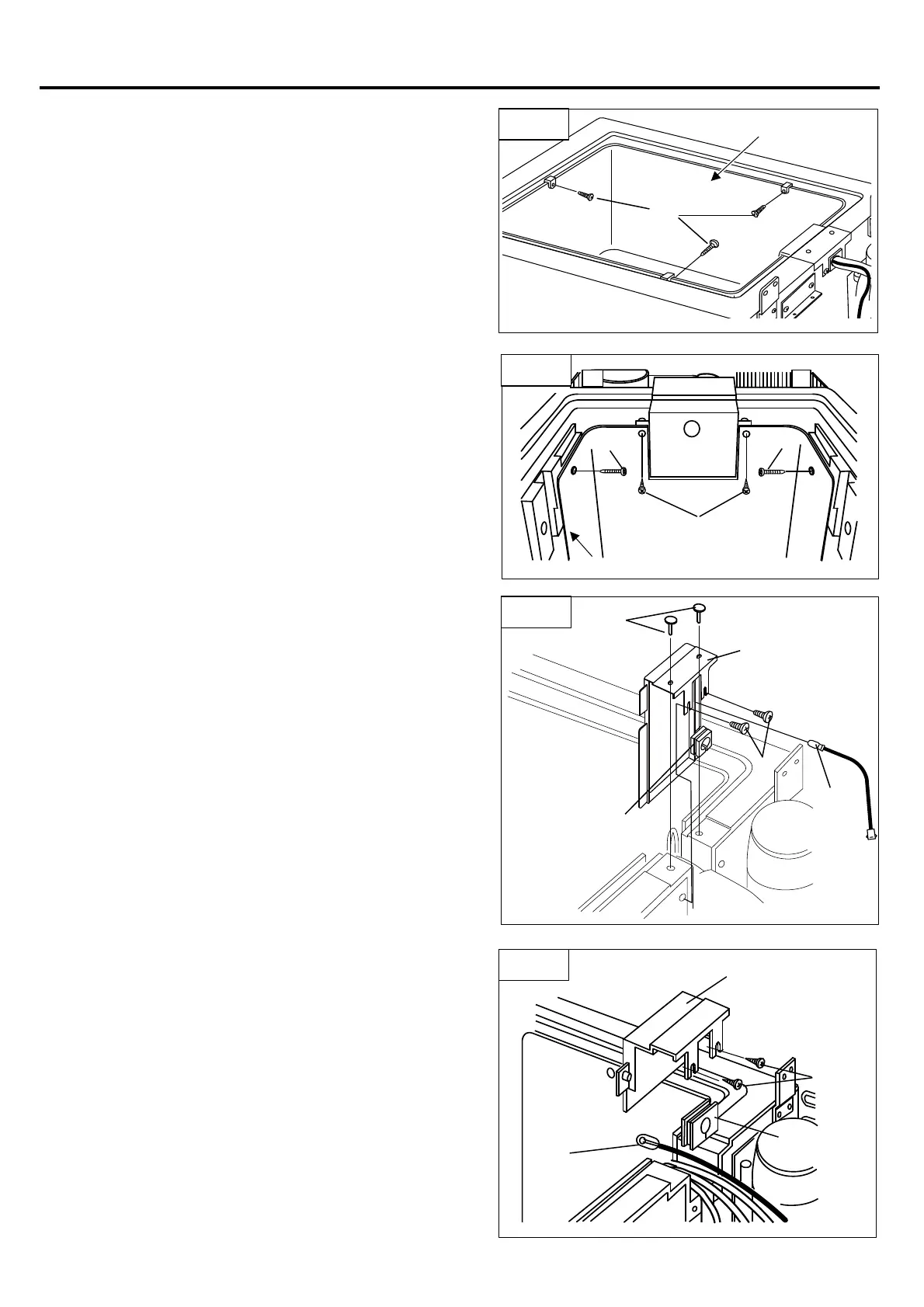

5. Remove screws of evaporator.
<For non combi type>
・Remove the 3 screws (Fig. 5-①)
＜For combi type＞
・Remove the 4 screws (Fig. 6-①)
6. Remove the cover pipe.
<For non combi type>
・Remove two screws of cover pipe. (Fig.7-①)
・Remove two fasteners of cover pipe. (Fig.7-②)
・Remove the cover pipe. (Fig.7-③)
・Remove the rubber bushing. (Fig.7-④)
・Remove LED light. (Fig.7-⑤)
<For combi type>
・Remove two screws of cover pipe. (Fig.8-①)
・Remove the cover pipe. (Fig.8-②)
・Remove the rubber bushing. (Fig.8-③)
・Remove LED light. (Fig.8-④)
To Next Page
