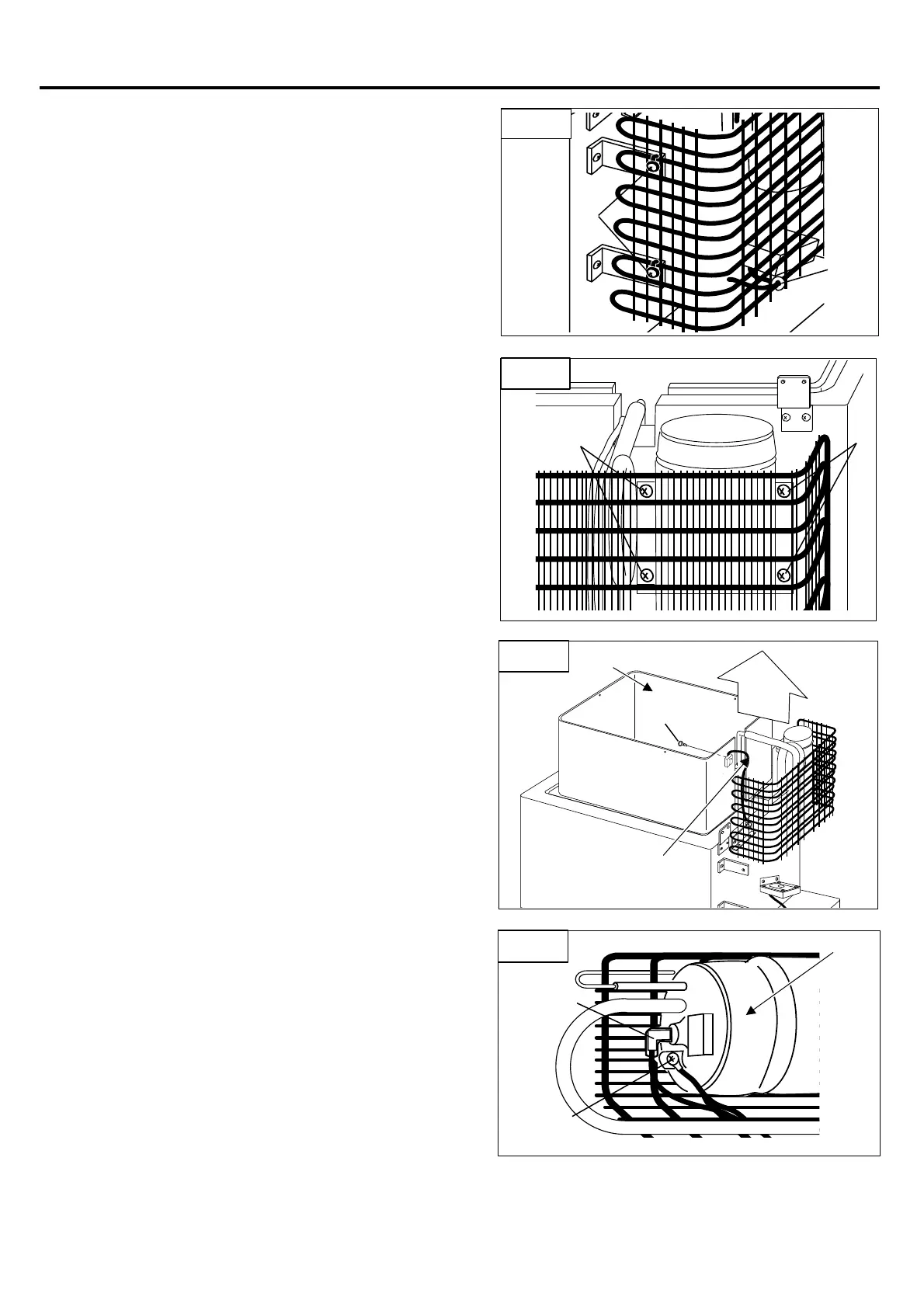

7. ・Remove two screws of wire condenser. (Fig.9-①)

・Cut the fastener. (Fig.9-②)

8. ・Remove four screws of compressor. (Fig.10)

9. Pull out cooling unit.

・Take out cooling unit from cabinet assy. (Fig.11-①)

・Remove screw of EVA. thermister. (Fig.11-②)

10. Pull out input cord from the compressor.

Pull out the positive side. (Fig.12-①)

Pull out the negative side. (Fig.12-②)

7. REPLACING PARTS

Fig.12

①

②

Fig.11

①

②

COOLING UNIT

EVA. THERMISTER

COMPRESSOR

Fig.10

①

Fig.9

①

②
