EnGenius ERB9250 User Manual

EnGenius ERB9250
58 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
Page #1 background imageLoading...
Page #1 background image

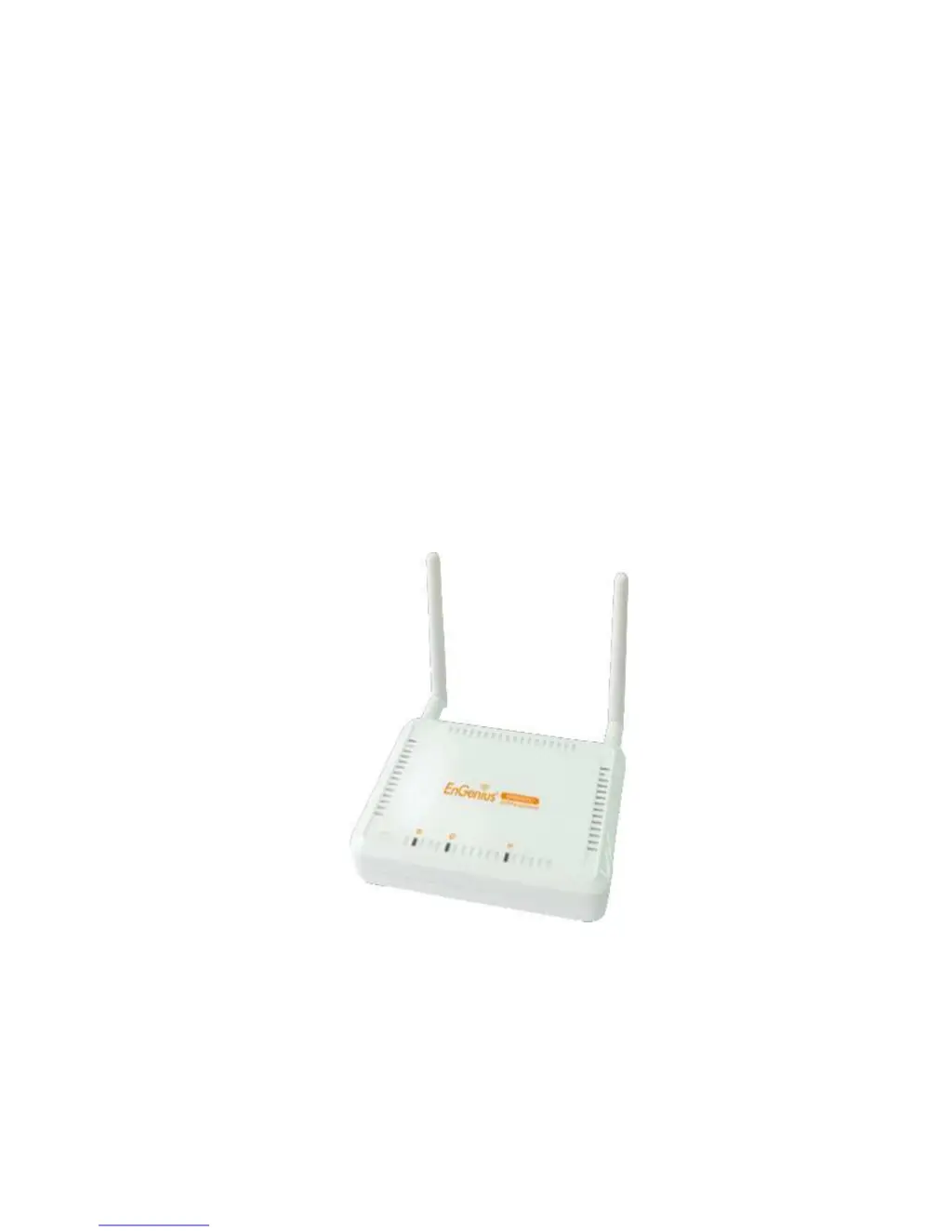

ERB9250
300Mbps Wireless N
Range Extender
User Manual
Version: 1.0

Other manuals for EnGenius ERB9250

Questions and Answers:

EnGenius ERB9250 Specifications

General IconGeneral
Frequency band2.4 GHz
Receiver sensitivityIEEE802.11n(2RX) MCS0/8 @ -91dBm • MCS7/15@ -74dBm IEEE802.11g (2RX) 6Mbps@ -92dBm • 54Mbps@ -75dBm IEEE802.11b (1RX) 1Mbps@ -93dBm • 11Mbps@ -91dBm
Ethernet LAN data rates10, 100 Mbit/s
Maximum data transfer rate300 Mbit/s
CompatibilityMicrosoft Internet Explorer 5.5/6/7, Safari ver1.2, Firefox 2.0 or later Operation Mode CB (2.5 NAT) Client Bridge
Wireless technologyWMM
Antenna typeExternal
Antennas quantity2
Antenna gain level (max)2 dBi
WAN connectionEthernet (RJ-45)
Ethernet LAN (RJ-45) ports1
Security algorithmsWPA, WPA-PSK, WPA2

Summary

Installation Guide

PC Network Adapter Setup

Guides configuring the PC's Ethernet adapter for network connectivity with the device.

Quick Setup Range Extender

One-Touch Setup

Step-by-step guide for configuring the extender using the WPS button.

Manual Setup Configuration

Detailed steps for manual configuration via Ethernet and web browser interface.

System Configuration

Device Operation Modes

Allows changing the device's operating mode between Repeater and Client Bridge.

Wireless Settings

Basic Wireless Settings

Configures fundamental wireless parameters like Mode, Band, SSID, and Channel.

Advanced Wireless Settings

Adjusts advanced wireless parameters such as Fragment Threshold and Beacon Interval.

Wireless Security Configuration

Manages wireless security protocols including WEP, WPA, and WPA2 encryption methods.

Network Configuration

LAN Settings Configuration

Configures the Local Area Network (LAN) IP address, subnet mask, and gateway.

Firewall Settings

Firewall Enable/Disable

Enables or disables the built-in firewall protection for the network.

DMZ Configuration

Sets up a Demilitarized Zone (DMZ) for unrestricted two-way internet access.

Advanced Network Features

Network Address Translation (NAT)

Manages IP address mapping for multiple users to access the internet.

Port Mapping Configuration

Redirects specified port numbers from WAN to a specific LAN IP address.

Port Forwarding Setup

Configures the device as a Virtual Server for specific service/application types.

Port Triggering for Applications

Supports applications requiring multiple connections by triggering ports.

Device Management
