INSTALLATION
1. Unpack unit and confirm all items checked off on your packing list..
2. Attach unit to optional stand or wall mount (included):
A. Assemble stand.
B. Connect stand bracket to “key holes” on the back of the unit.
C. Tighten wing nuts.
3. Place handpieces on handpiece holders.
4. Connect pressurized air / nitrogen to gray hose. DO NOT EXCEED 90 PSI. Use pressure
regulator and filter when needed. The recommended operating pressure is 80 PSI.
5. Connect water to red hose.
6. Connect power supply to power plug located at the end of the umbilical bundle.
7. Connect power supply to power outlet.
8. Test each handpiece.
To avoid unit damage and / or injury, confirm input line pressure for the air or nitrogen is set to a
maximum of 80 PSI. If using a compressor, verify your compressor pressure ratings, if it provides
more than 80 psi, a pressure regulator is required.
#5 WATER
#4 AIR OR NITROGEN,
80 PSI MAX.
#6 POWER

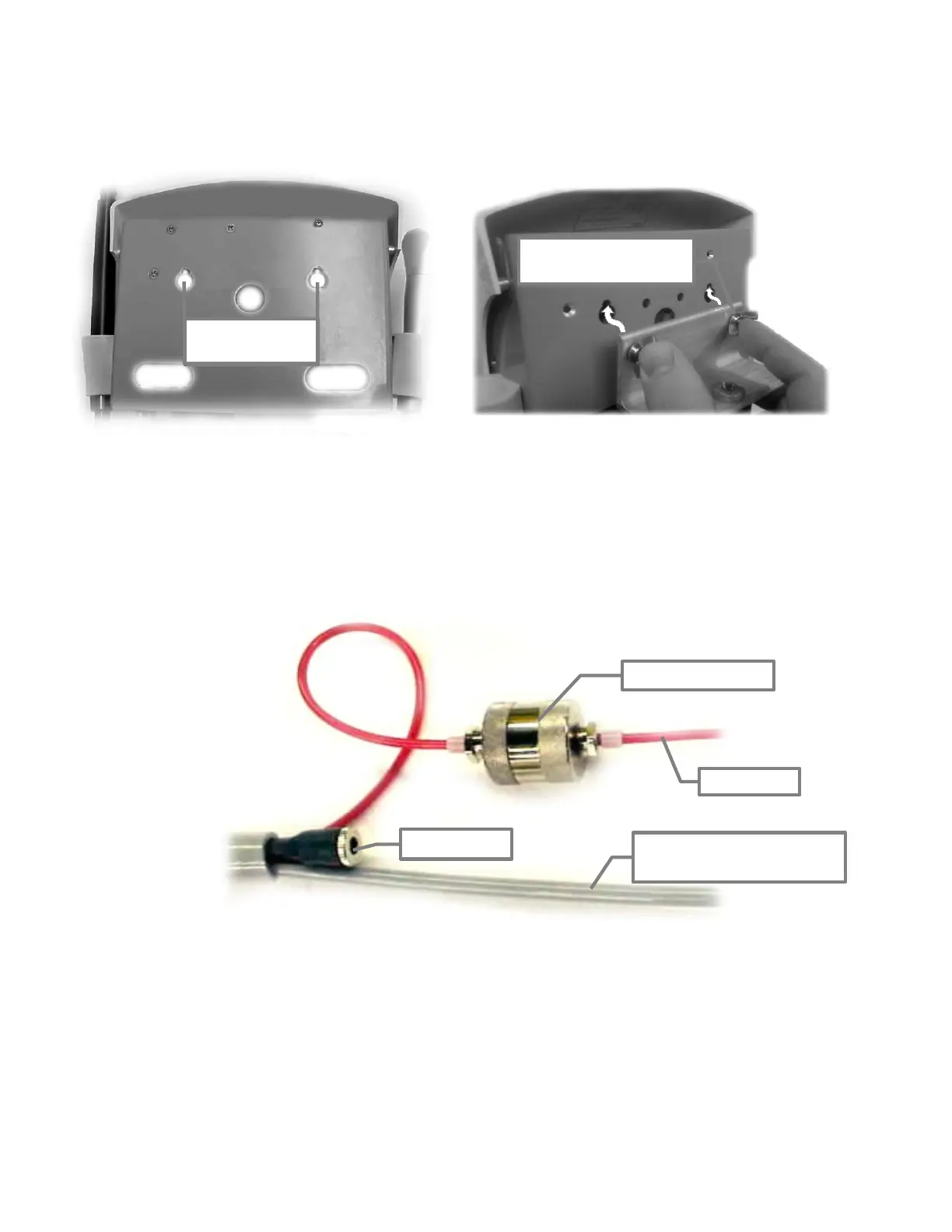

WATER FILTER
WALL
MOUNT
STAND BRACKET
WING NUTS
