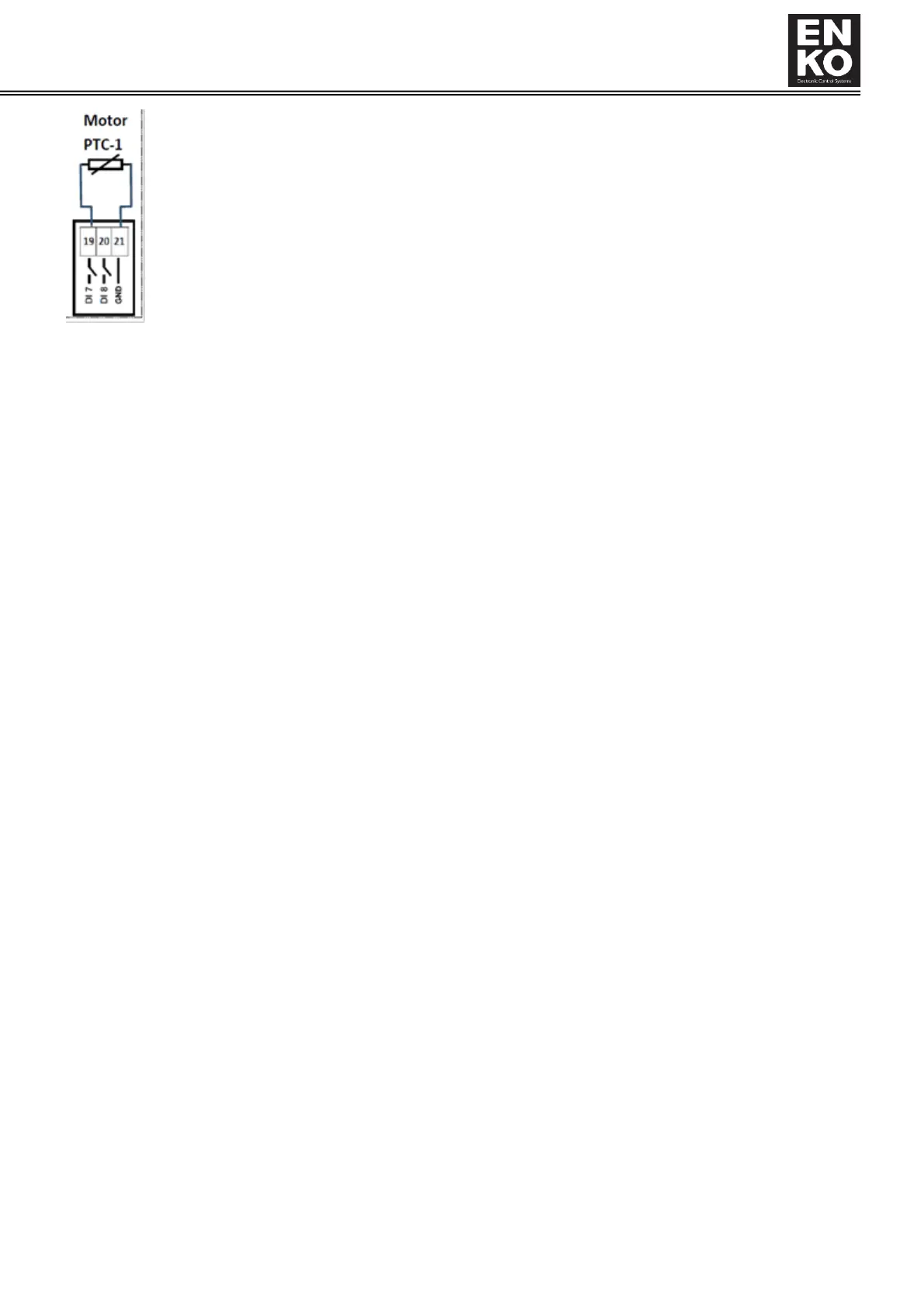

Aux1 Alarm: The first backup alarm input. When this function is assigned and the input is active, the compressor is
unconditionally stopped.
Aux2 Alarm: The second backup alarm input. When this function is assigned and the input is active, the compressor
is unconditionally stopped.
Ln Switch: This is the function to be used for line pressure in running with pressure switch. See "Application note
Running with pressure switch”.
Sc Switch: This is the function to be used for screw pressure in running with pressure switch. See "Application note
Running with pressure switch”.
AlarmReset: Remote alarm clearing function. When this function is assigned and the input is active, if the alarm in
the device is resolved, the fault is cleared.
P042: Input Function 1:
The Function parameter that will be assigned to the input on the device's terminal 12, which is defined as DI1. See
“Functions That Can Be Assigned to Inputs”, Default function is “EmerStp”.
P043: Input Delay 1:
After the relevant input is active, at the end of the time value entered to this parameter, the device takes the input
as active.
P044: Input Contact Type 1:
The contact type of the relevant input, can be selected as NO (normally open) or NC normally closed.
P046: Input Function 2:
The Function parameter that will be assigned to the input on the device's terminal 13, which is defined as DI2. See
“Functions That Can Be Assigned to Inputs”, Default function is “MThermic”.
P047: Input Delay 2:
After the relevant input is active, at the end of the time value entered to this parameter, the device takes the input
as active.
P048: Input Contact Type 2:
The contact type of the relevant input, can be selected as NO (normally open) or NC normally closed.
P050: Input Function 3:
The Function parameter that will be assigned to the input on the device's terminal 14, which is defined as DI3. See
“Functions That Can Be Assigned to Inputs”, Default function is “Separate.”.
