page 4

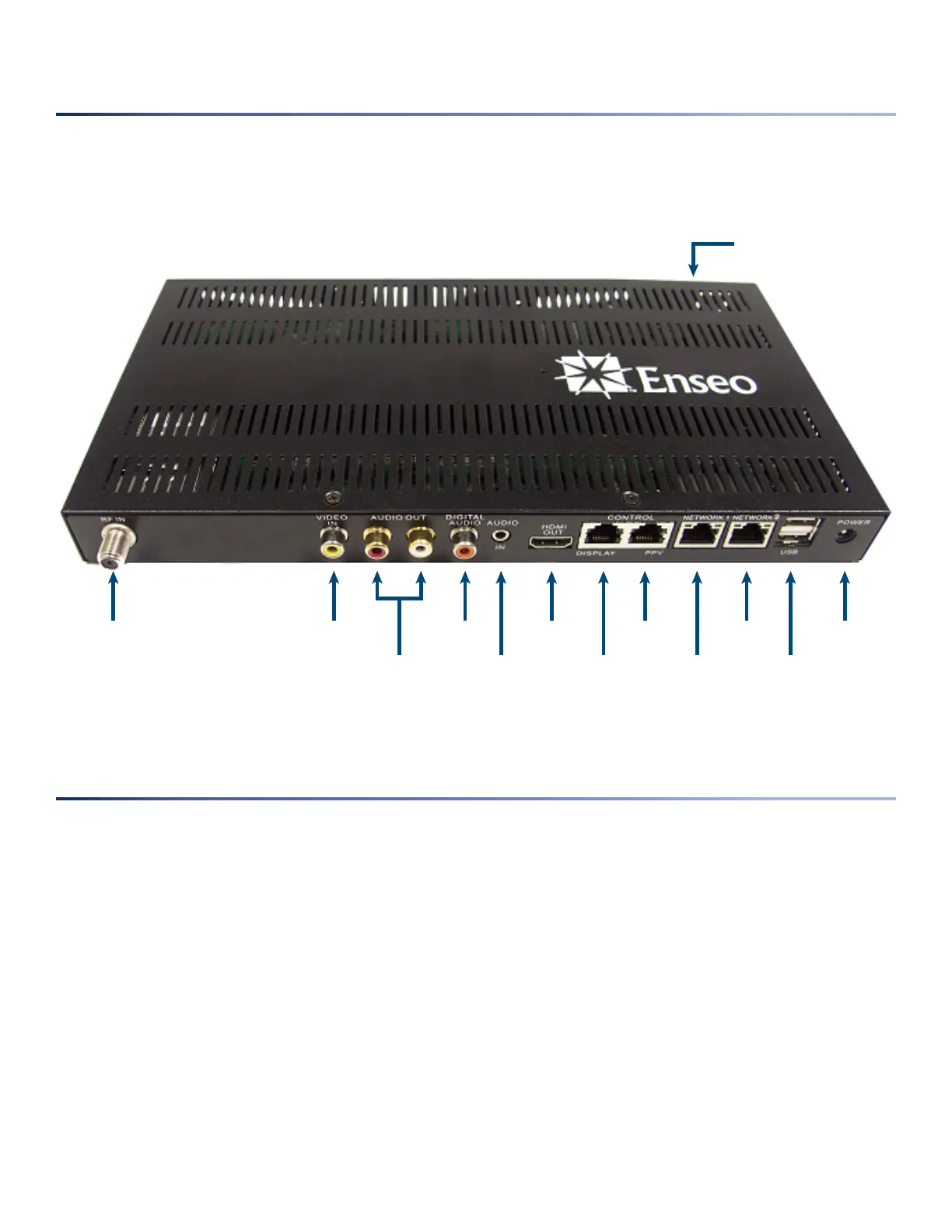

F-Connector
L/R Stereo
Audio In
Display
Control
Ethernet USB x 2
Composite
Video In
S/PDIF
Audio Out
HDMI Out PPV
Control
VLAN
Switch
12V DC
power
DB-9
• RS232
• IR
• 5V DC out
L/R Stereo
Audio Out
Connections
TheHD2000RFisdesignedtofunctionwithHDMI-HDCPenableddisplayswhichmaydifferininputtypesandcon-
nectionconfiguration.SomeDVI-HDCPproductswillfunctionifanHDMItoDVIadapterisusedandL/Raudiois
connectedwithaseparateaudiocable(notsupplied).
Installation
Installing Cables:
1. RemoveACpowerfromLGTVandHD2000RF.
2. InstalltheHD2000RF,connectingthesignalsourcetotheHD2000RFandtheHDMIcabletotheLGTV.
3. ConnecttheTVcontrolcable(220-0281-003)totheLGTV.DonotconnecttheTVcontrolcabletothe
HD2000RFyet.
Select TV Type on the HD2000 RF:
4. ApplypowertotheTVandturnitonusingtheLGremote.
5. SelectTVHDMI-1inputwithLGTVremote(notincluded).
6. ApplyACpower(plug-inpower,notthePWRbutton)totheHD2000RFandwait1minutefortheHD2000
RFtoproperlyboot.
