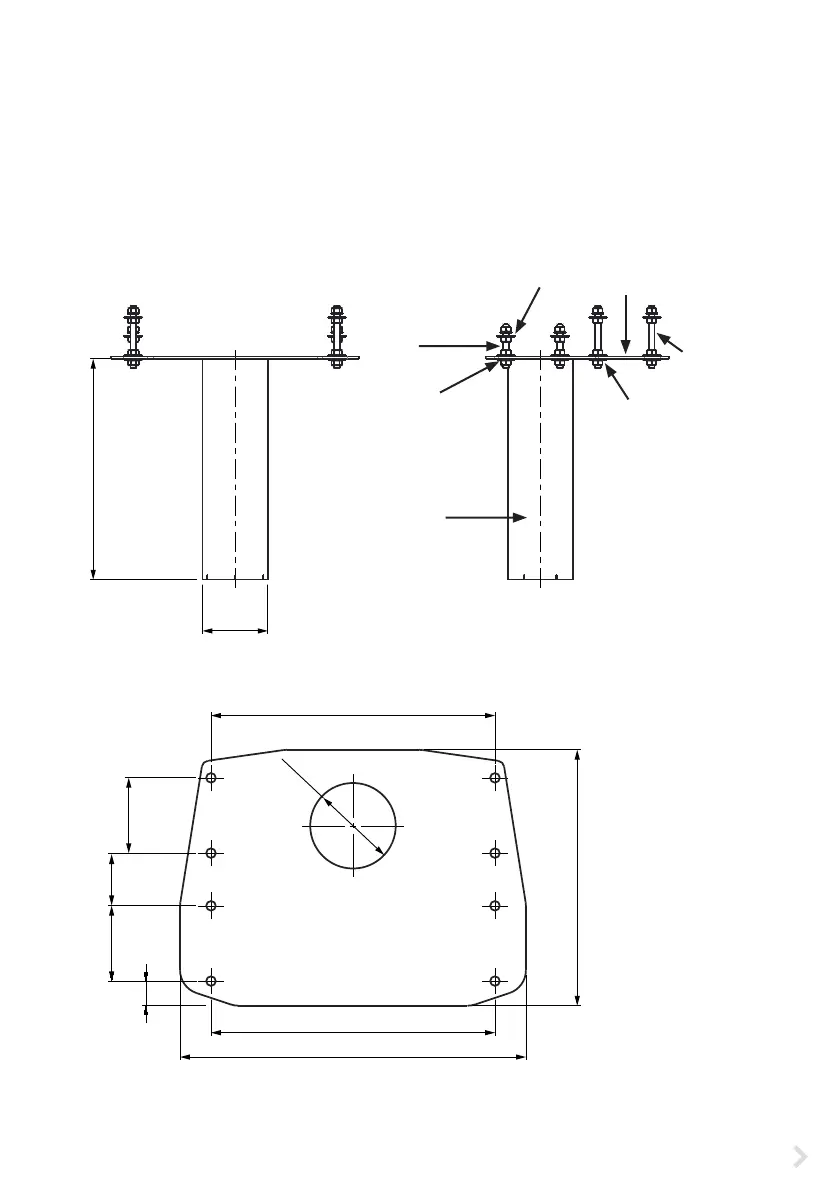

EVTL37.00 concrete foundation adapter for EVF300
The concrete foundation adapter is designed to be used with Sähkö-Jokinen SJR-08 foundation.
Please order the foundation from: https://www.sahkojokinen./en
If you want to use a foundation from another manufacturer, make sure that the foundation is compatible with
the adapter.
Washer
M12 DIN125 A2
Installation
plate
Threaded bar
M12x128 A4
Hexagon nut
M12 DIN934 A2
Tube
Washer
13/37 DIN9021 A2
Threaded bar
M12x90 A4
