137
IP2160PT - 2017-04-12
1
12

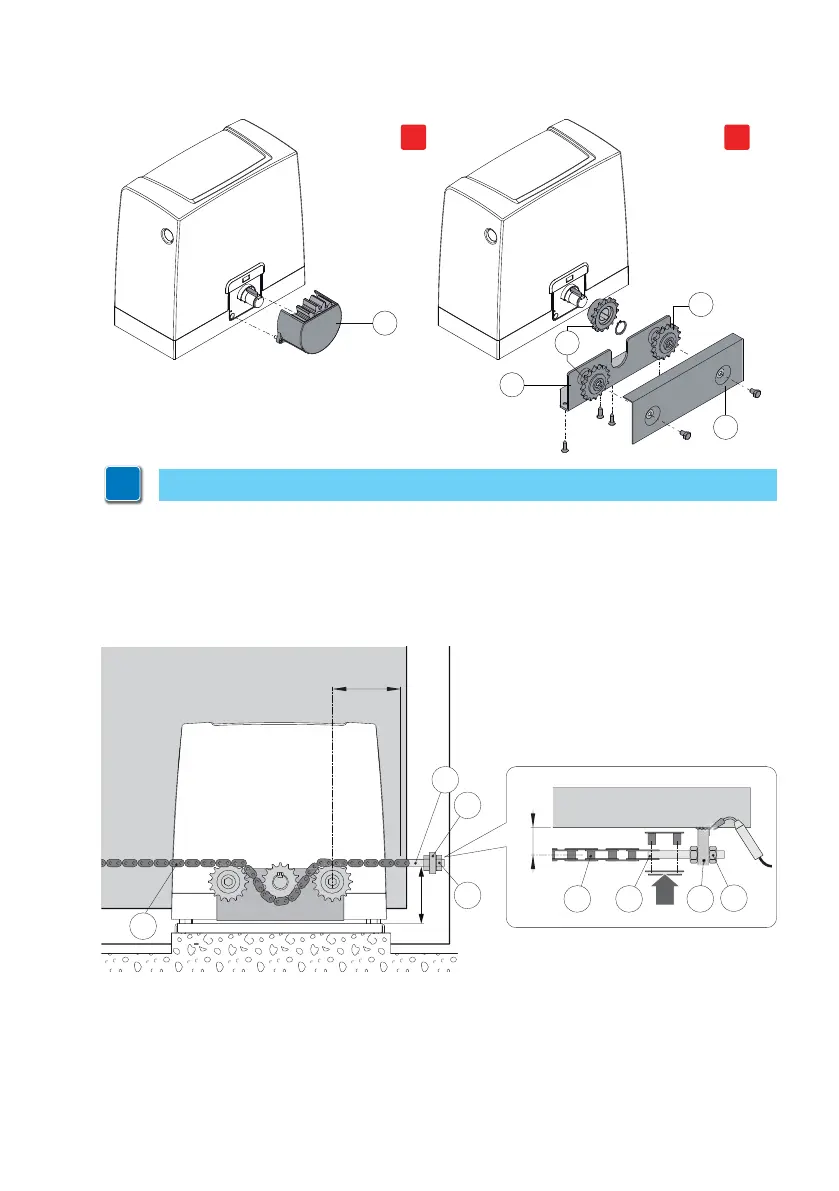

- Desbloqueie o moto-redutor (veja as instruções de uso).
- [1] Remova o pinhão [12].
- [2] Fixe a chapa porta pinhões [A] ao moto-redutor.
- Introduza os pinhões [B] conforme indicado na figura.
- [3] Faça passar manualmente a corrente entre os pinhões.
- Fixe a chapa de cobertura [C].
2
A
B
B
C
NOTA: Instale o kit de tracção da corrente antes de fixar o moto-redutor à chapa de base.
7.7 Instalação do kit de tracção em corrente
i
- Mova manualmente a portinhola para a posição de abertura e fixe os suportes [D] na portinhola
conforme indicado na figura.
- Ligue a corrente [E], anteriormente montada no moto-redutor, ao tirante [F] e fixe-a no estribo [D].
- Fixe o estribo [D] no lado oposto do portão. Ligar a corrente [E] ao tirante [F] e fixá-la ao estribo
[D] (cortar a corrente em excesso).
min 50
40
90
E F D
G
E
F
G
D
