IP2160EN - 2017-04-12

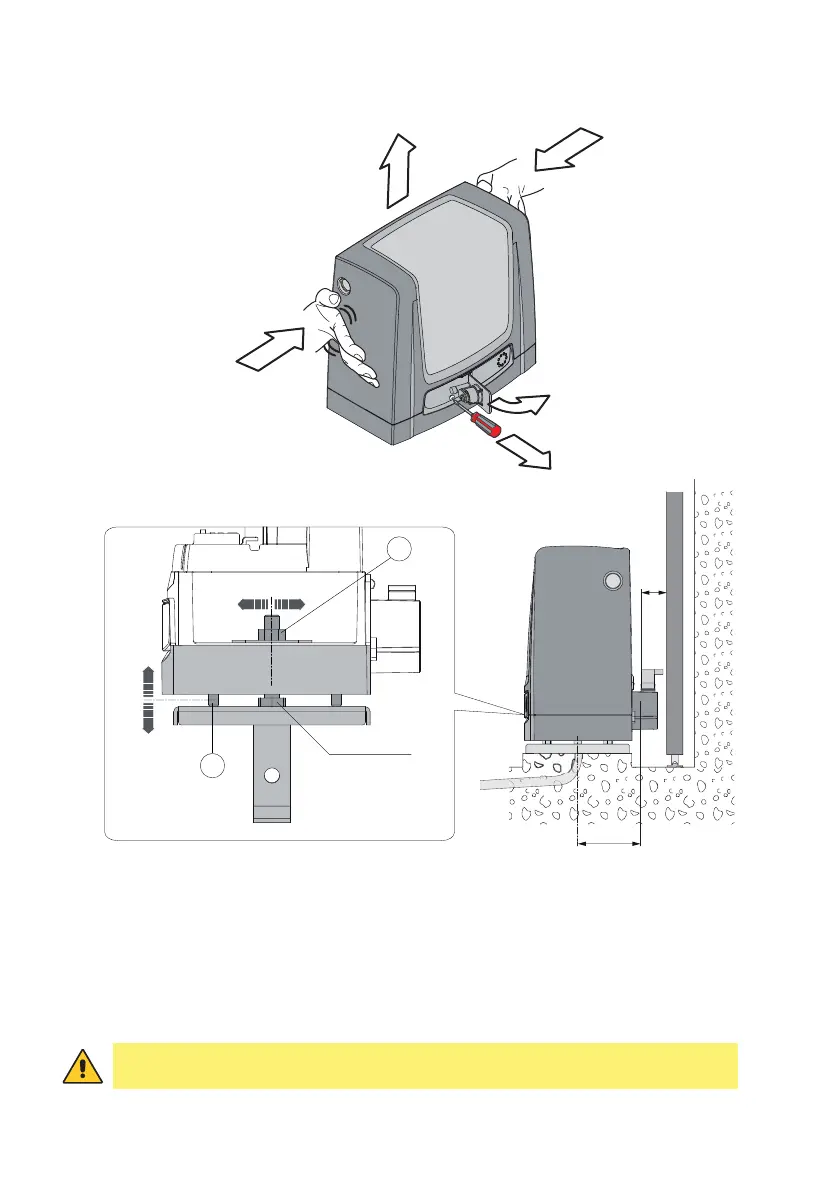

- Release the gearmotor [1] (see OPERATING INSTRUCTIONS). Loosen the front screw [2] and
remove the casing by pressing on its sides [3-4].
- Place the gearmotor on the base plate.
- Adjust the gearmotor horizontally by sliding it along the slots of the gearmotor base and vertically with
four levelling screws [A].
NB: during the vertical adjustment, keep the gearmotor slightly raised from the base plate so
that the rack can be fixed and subsequent adjustments are possible.
- After adjusting, fix the gearmotor using screws [B].
7.3 Gearmotor installation
WARNING: The gearmotor must be suitably raised from the ground to avoid flooding.
X
105
-15 +10
±5
A
B
M12-low type
M12
3
3
2
4
1
