Section 2 Gettin
started 14

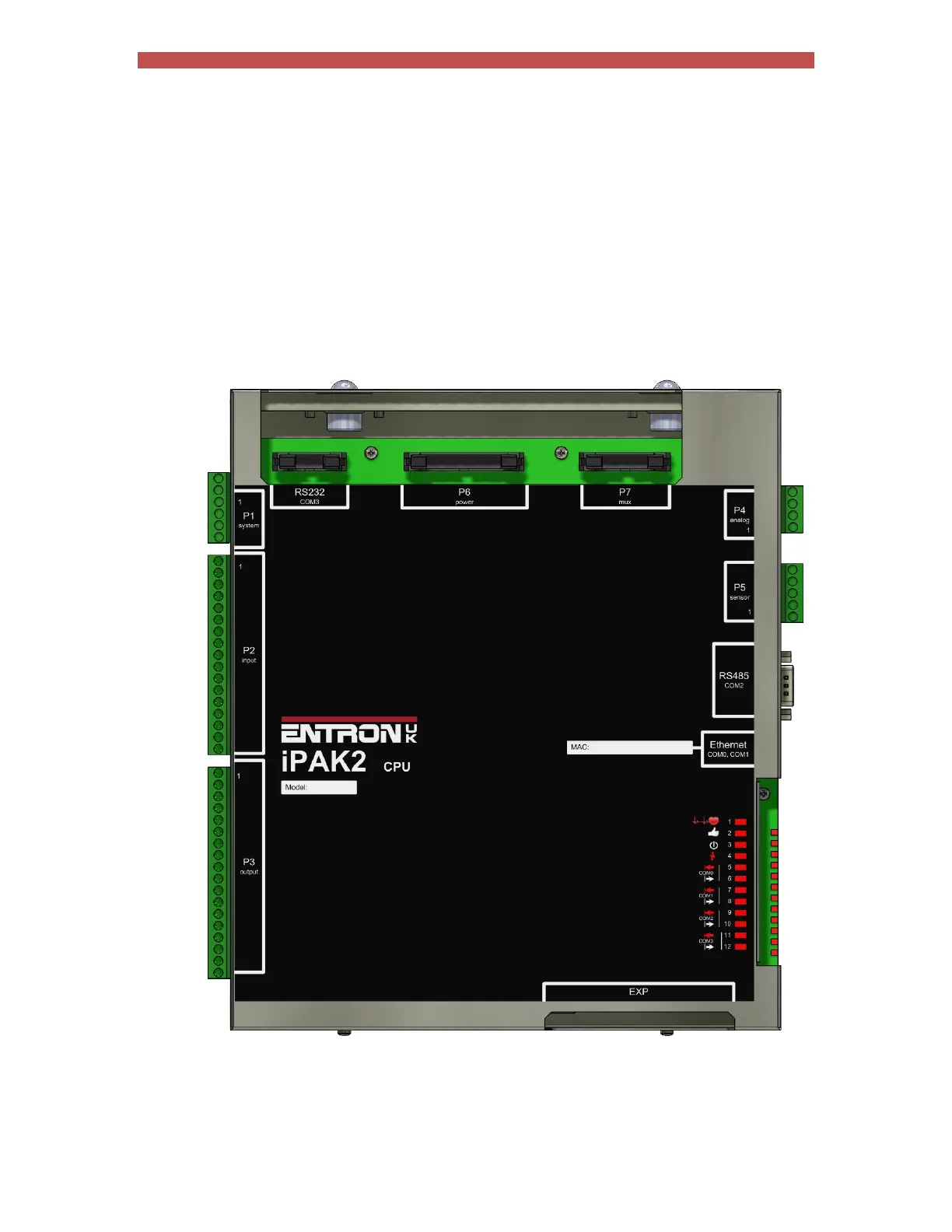

Control connectors
Connectors P1, P2, P3, P4 and P5 are two-part terminals, for use with wires up to 1mm
2
.
The RS232 port is used to connect a WSP3 programming pendant or a PC. A ribbon cable assembly is
available for converting to the standard 9-way D-sub style of connector.
Connector P6 is used internally to connect to the inverter power pack, and is not used for users
connections.
Connector P7 is used for MUX driver cards on systems with more than one transformer.
