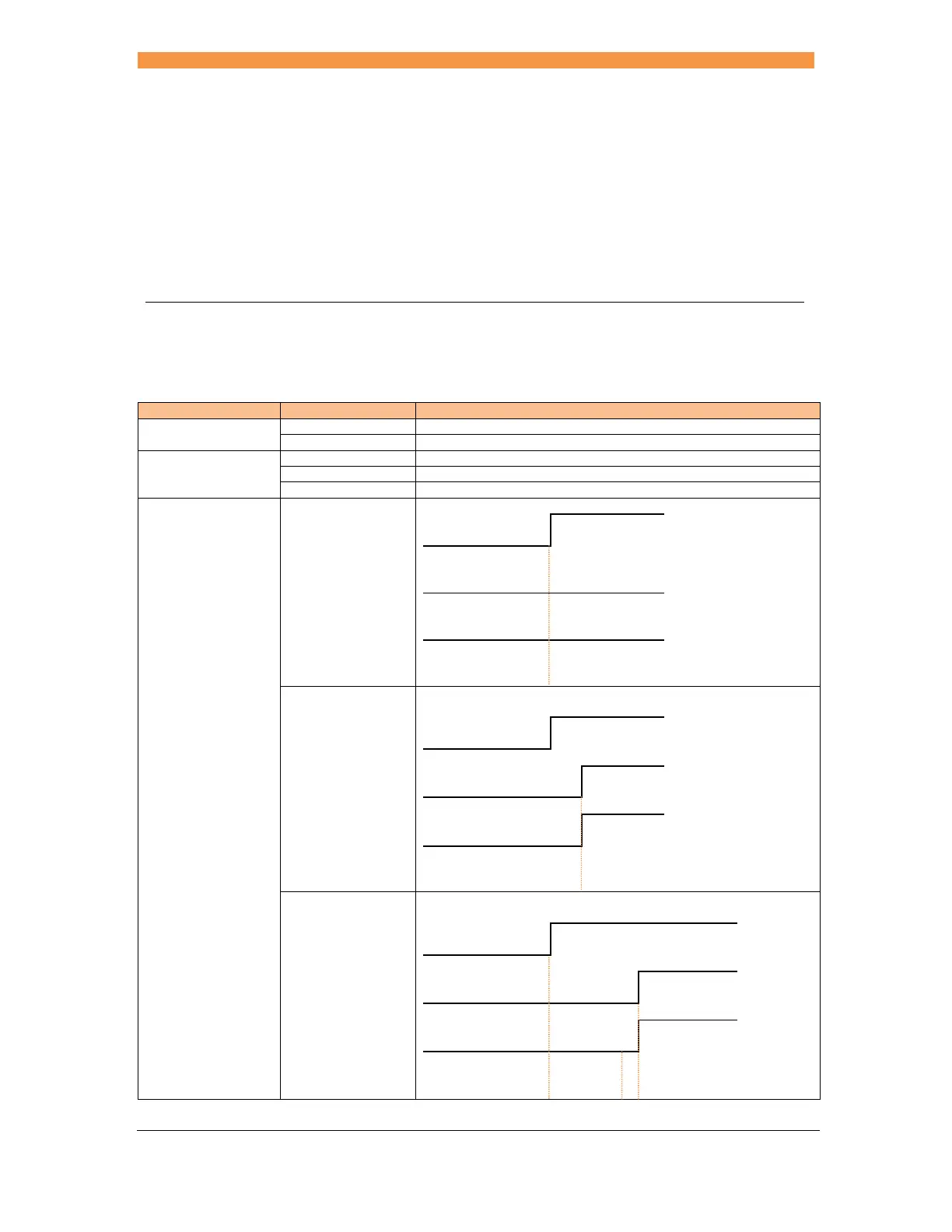

Configuration
The Configuration parameters affect the operation of the iPAK2.
Parameter Value Description
Features
Standard Use standard features
Extended Use extended features
Weld type
Spot Use spot welding features
Seam Use seam welding features
Analog Use analog welding features
2
2
nd
stage
Off The 2
nd
stage input is not used. The motor output is not used
1
.
Start input
2
nd
stage input
Motor output
Sequence
begins

Squeeze
Before Squeeze The 2
nd
stage input is checked before the Squeeze interval. The
motor output is activated when the 2
nd
stage input is confirmed
1
.
Start input
2
nd
stage input
Motor output
Sequence
begins

Squeeze
After Squeeze The 2
nd
stage input is checked after the Squeeze interval. The
motor output is activated when the 2
nd
stage input is confirmed
1
.
Start input
2
nd
stage input
Motor output
Sequence
begins

Squeeze
Sequence
continues

