Section 12 Confi
uration 62
2
nd
stage
Once The 2
nd
stage input is checked only at the start of a cascade
sequence
Every The 2
nd
stage input is checked at the start of every program within
a cascade sequence

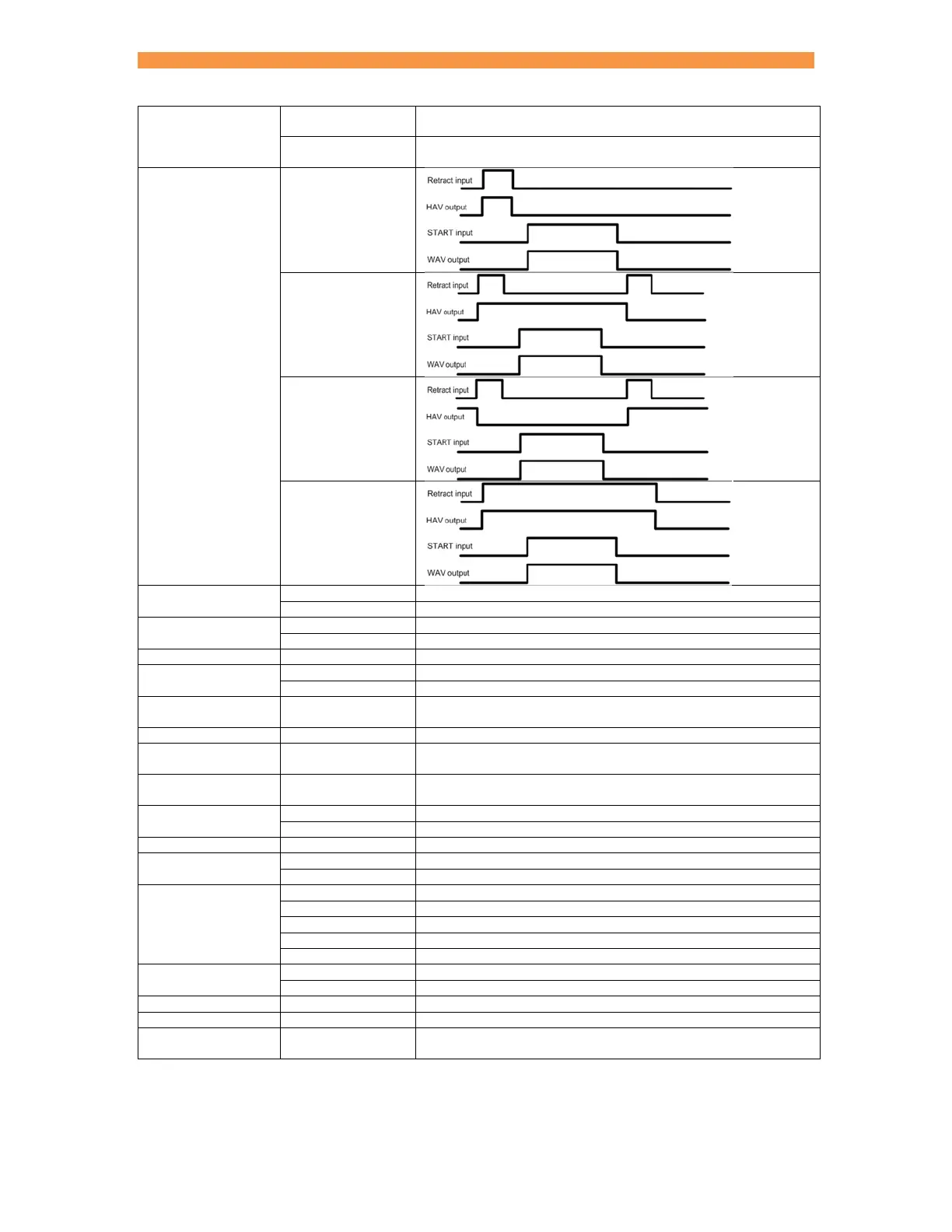

Retract
Simple
Hilift +
Hilift -
Maintained
Measure
Primary Measure primary welding current
Secondary Measure secondary welding current (requires a toroid connection)
Regulation
Primary Regulate primary current
Secondary Regulate secondary current (requires a toroid connection)
Ip limit 0
inverter specific Sets an upper limit on the inverter output current
3
Units
Metric Measure force in KN
Imperial Measure force in lbf
Stop on fault
yes/no The weld air-valve opens as normal but subsequent welds are
inhibited until a fault reset is given
EOS on fault yes/no The EOS output will be activated
Headlock on fault
yes/no The weld air-valve output is held on and subsequent welds are
inhibited until a fault reset is given
iPAK (v1) mode
yes/no Changes the sense of the READY output to NOT READY. AV4, 5
and 6 are used for MUX selection.
Program select
External The Program Select inputs select the weld program
Internal The Use Program parameter selects the weld program
Use program 0 - 255 The weld program that will be used if Internal program is selected
Electrodes
Single Use one electrode for the weld programs
Multi Use up to 8 electrodes for the weld programs
I/O source
Discrete Use the discrete inputs and outputs
COM0 Use MODBUS TCP/IP (Ethernet) on COM0
COM1 Use MODBUS TCP/IP (Ethernet) on COM1
COM2 Use MODBUS RTU (RS485) on COM2
COM3 Use RS232 on COM3
Analog output
Force The analog output is used to control force
Current The analog output corresponds to the measured weld current
Analog scaling 10V = 0
500kA The analog output scaling
Contactor 0
99 seconds The contactor output is sustained for this time following a weld
Toroid test Off / On The connection to an external toroid will be tested. The measured
resistance must lie within the range 10 to 300 Ohms.
1
Seam mode only
