Entron iPAK2

Section 14 Tutorials 81
Tutorials
The iPAK2 has a number of features that can improve weld quality, diagnostics and maintenance. Before each
tutorial:
 Section 12 Configuration: ensure the Configuration parameters are set appropriately for the
application.
 Section 7 Electrode management: ensure the Calibration parameters are set.
01 Testing the weld current
The current for each weld can be tested against upper and lower limits.
1. In the weld program, enable the Monitor option for each weld to be tested.
2. Set the Low limit and High limits appropriately. The limits correspond to a percentage of the
required current.
If the weld current falls outside the limits, iPAK2 will signal a weld fault.

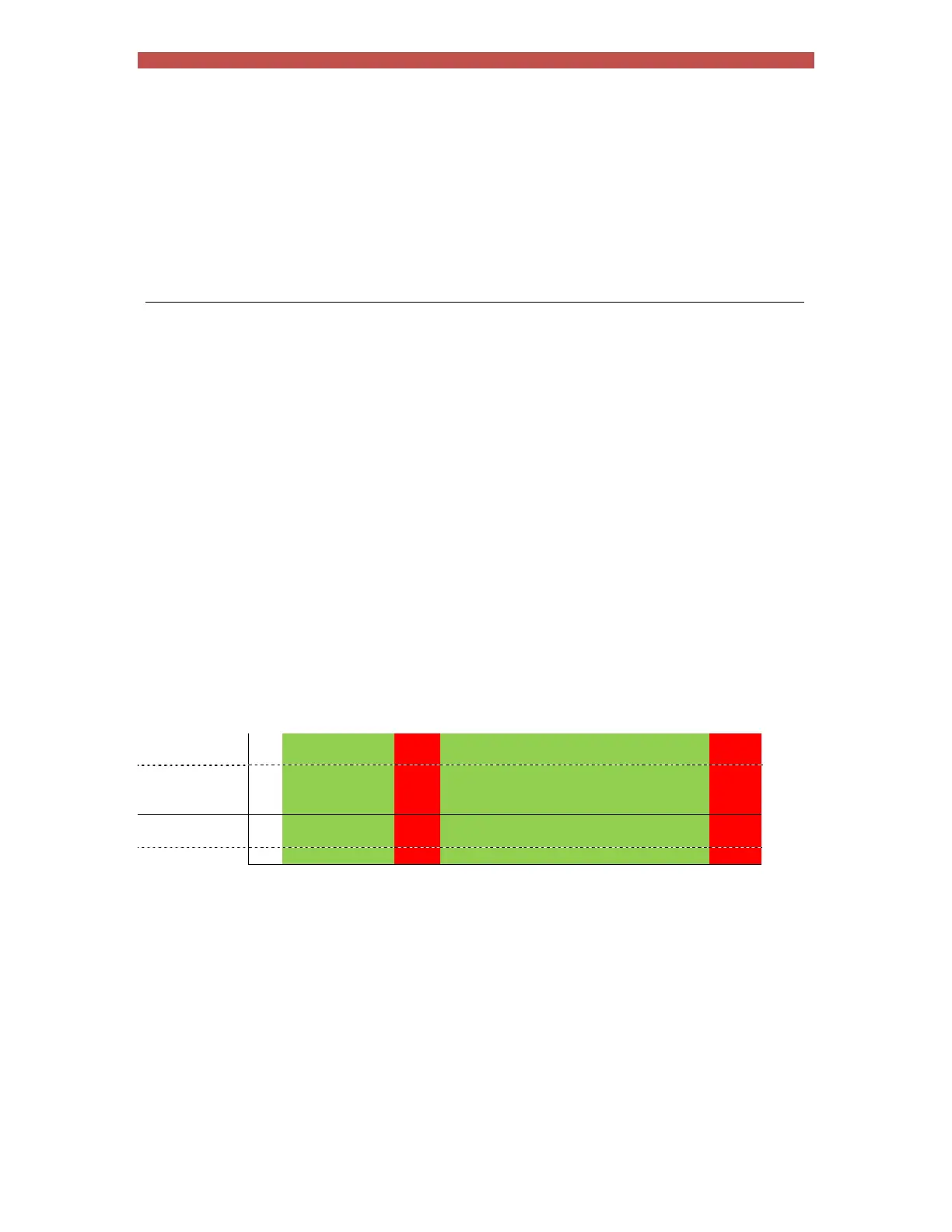

Current
Pass Fault Pass Fault
High limit

 
  
Target
 

Low limit


Spots
