Entron iPAK2

Section 7 Electrode mana
g
ement 45
Multi-electrode operation (extended feature)
Multi-electrode operation allows each welding program to be triggered independently and also allows
the assignment of an electrode to a transformer.
Parameter Units Range Description
Electrode 0 - 7 The electrode number
Transformer 0 - 7 The transformer that the electrode is connected to

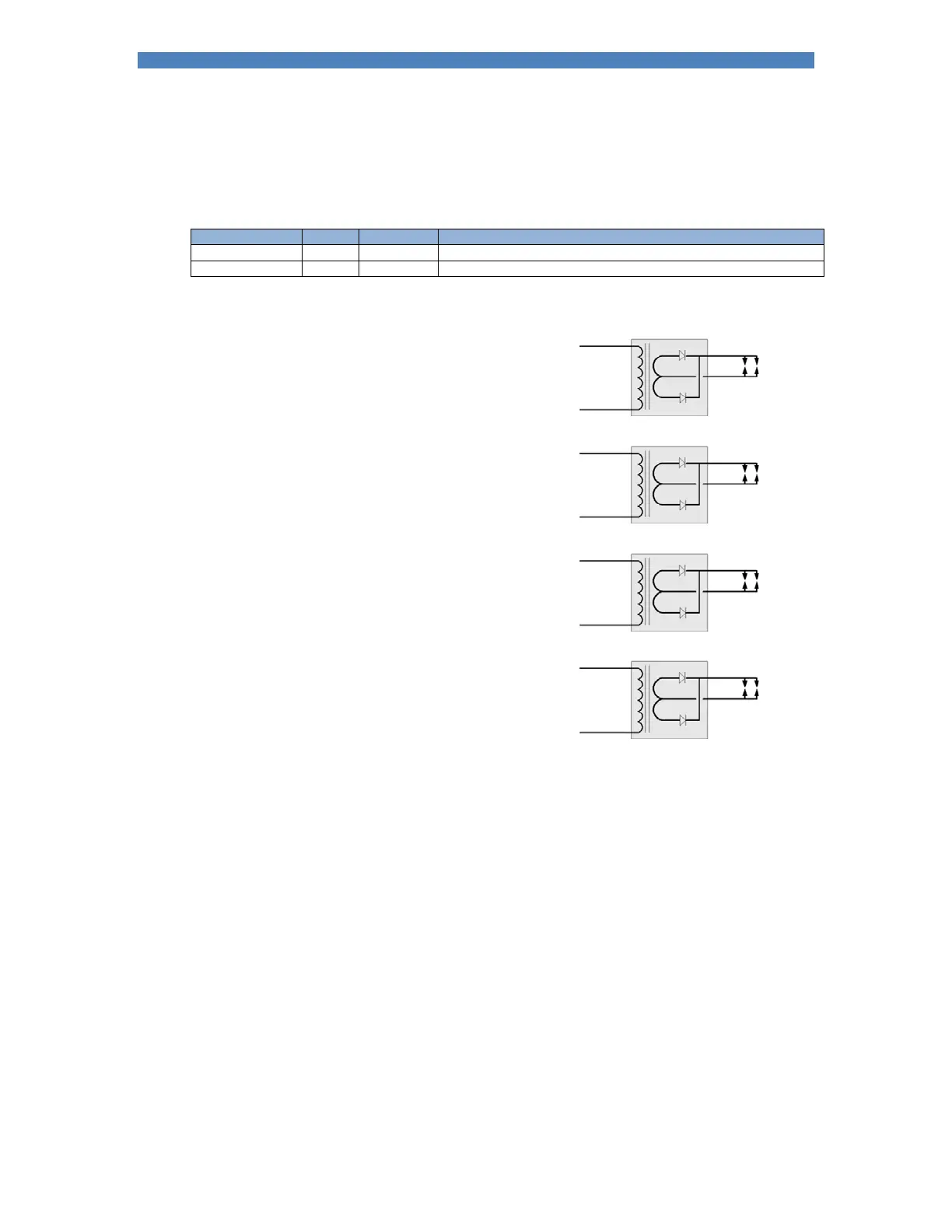

The diagram shows how the electrodes can be assigned to transformers
Electrodes 0 and 1 are assigned to transformer 0
T0
Electrodes 2 and 3 are assigned to transformer 1
T1
Electrodes 4 and 5 are assigned to transformer 2
T2
Electrodes 6 and 7 are assigned to transformer 3
T3
The electrodes are assigned to weld programs in the same way.
E0
E1
E2
E3
E4
E5
E6
E7
