Entron iPAK2

Section 10 Multiweldin
g
51

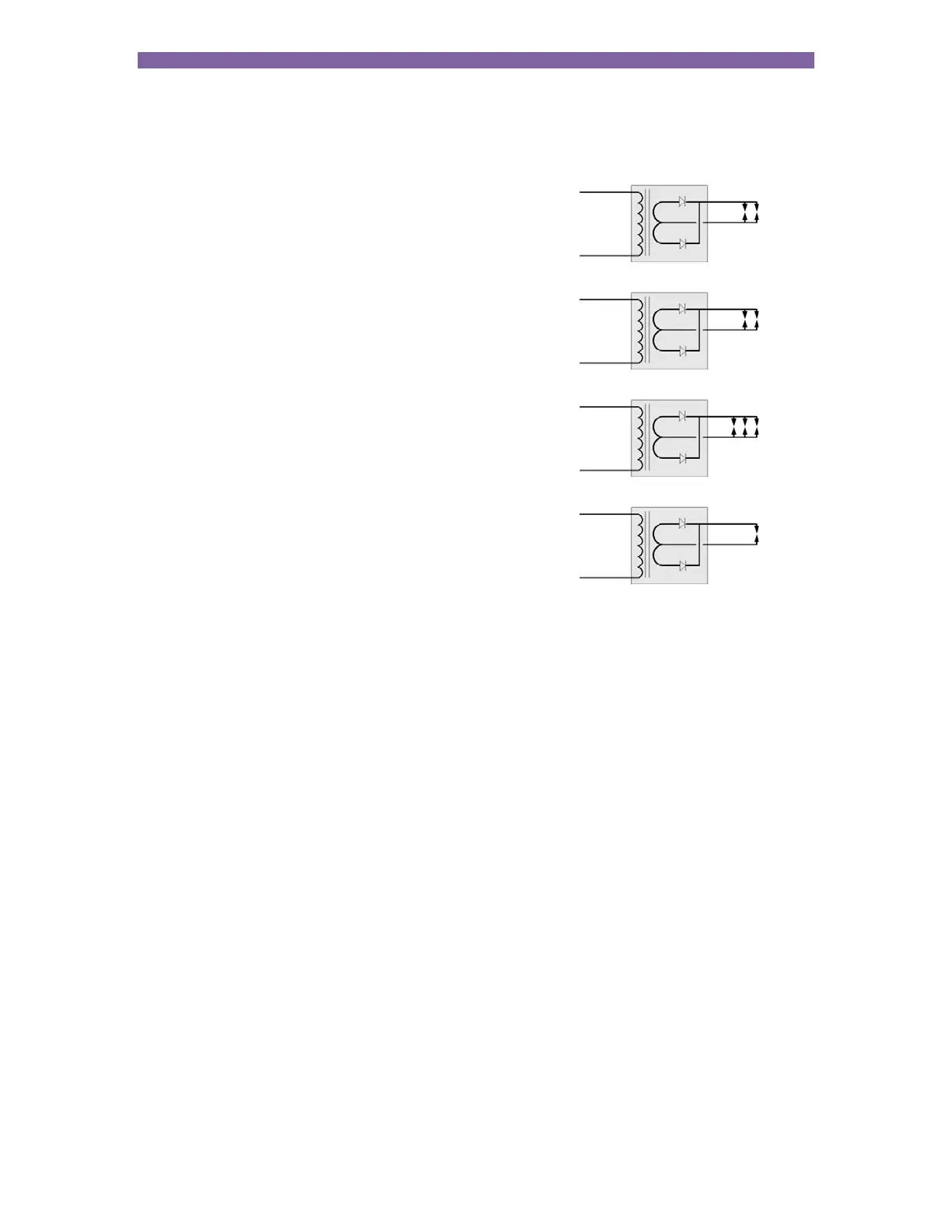

The diagram shows how the electrodes can be assigned to transformers
Electrodes 0 and 1 are assigned to transformer 0
T0
Electrodes 2 and 3 are assigned to transformer 1
T1
Electrodes 4, 5 and 6 are assigned to transformer 2
T2
Electrode 7 is assigned to transformer 3
T3
There are two methods available for multiwelding.
 Multi-gun operation allows each welding program to be triggered independently but allows for selection
of a transformer and electrode.
 Multi-gun cascade operation allows up to sixteen welding programs to be linked together and triggered
from a single start command. The programs then ripple through with minimal time between them,
selecting transformers and electrodes on the fly. The linked programs are known as a cascade.
E0
E1
E2
E3
E4 E6
E5
E7
