Multi-gun cascade operation
Different electrodes and transformers can still be selected but the welding programs are linked together
and started by a single Start command. Cancelling the Start command at any time will abort the cascade
sequence
In multi-gun cascade operation the program select inputs select the first program in the cascade.
If a fault occurs during a cascade sequence:
Stop on fault
1
Description
Off Cascade will continue. Fault output will remain on only until next weld.
On Cascade will pause. Cascade will continue when the fault is reset.
1

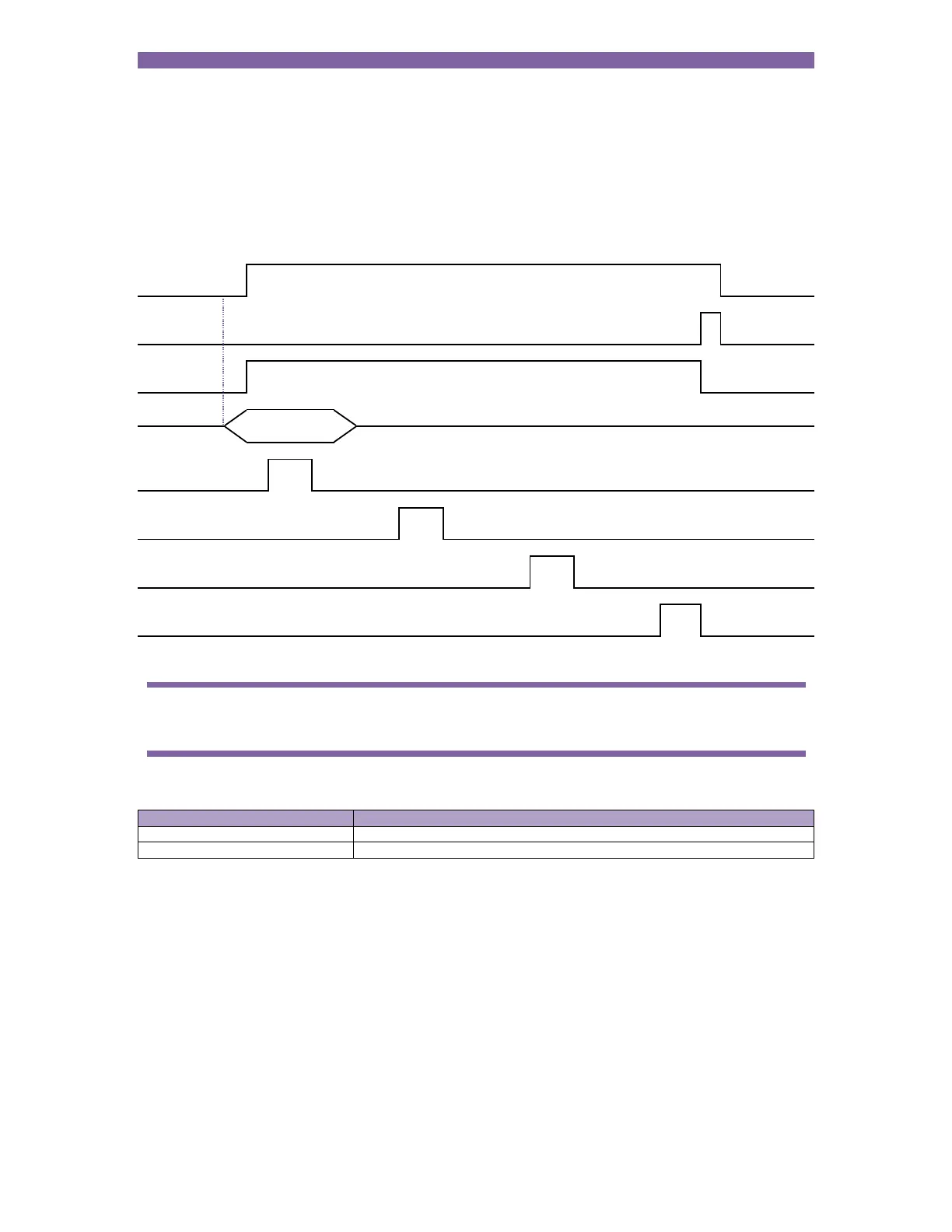

Section 12 Configuration
Start input
EOS output
WAV output
Program
First
program #
select
Current
(transformer 0)
Current
(transformer 1)
Current
(transformer 2)
Current
(transformer 3)
