Low battery alarm
Key Lock
Room
Temperature
Dimmer ON
Set Point
Temperature/Level/State
Flame ON
Thermostat OFF/
ON/SMART
Comfort fan
Transmission
Split Flow
Aux ON
CPI mode
Operating Instructions

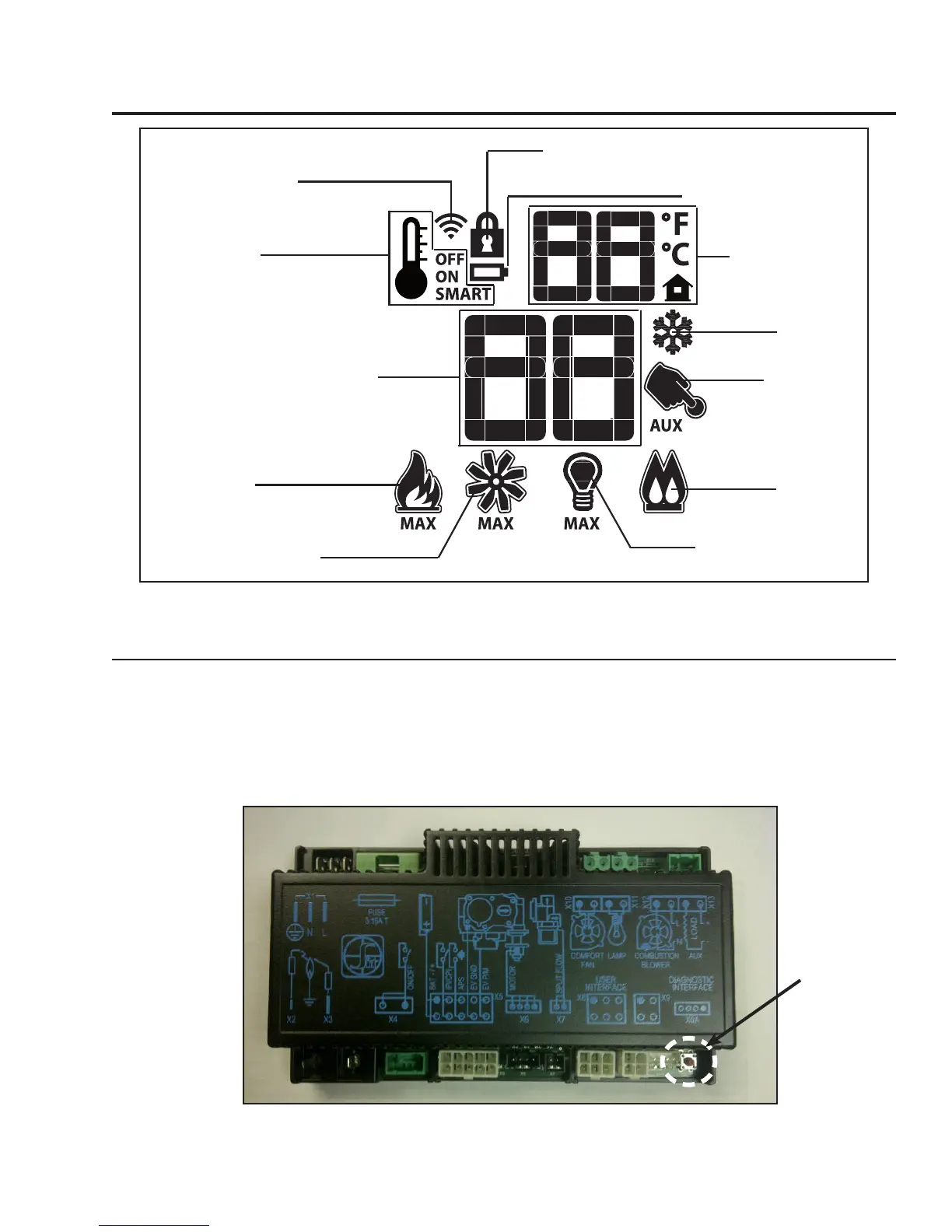

Figure 6: Proame 2 Transmitter LCD Screen.
[Not used oN eX32]
The Proame 2 IFC (Figure 7) connects directly to the gas valve, stepper motor, pilot, covection fan, and accent
lights with wiring harnesses. The IFC is mainly powered by 120 VAC but can also run off a battery backup four
(4) AA type batteries for shorter periods of time. The IFC accepts commands via radio frequency from the
Transmitter to operate the appliance in accordance with the particular Proame 2 system conguration. The
IFC has a red reset button at the front right corner that is used is to synchronize the Transmitter when using
the for the rst time, or after the batteries have been replaced.
Figure 7: Integrated Fireplace Controller
integRateD fiRepLace contRoLLeR (ifc):
Reset Button
