noRmaL sounDs DuRing opeRation:
Component Sound & Reason
Fire Box Creaking when heating up or cooling down.
Burner Light pop or poof when turned off; this is more common with LP units.
Pilot Flame Quiet whisper while the pilot ame in on.
Blower / Fan Air movement that increases and decreases with the speed of the blower.
Gas Control Valve Dull click when turning on or off, this is the valve opening and closing.
IFC Beeps when remote control buttons are pressed.
Table 4: Normal Sound
VentuRi aDjustment:
Remote contRoL opeRations:
The Proame 2 GTMFLSA is a modular remote control system that directs the functions of the EX32.
The Proame 2 GTMFLSA is congured to control the on/off main burner operation, its ame levels and
provides on/off and Smart thermostatic control of the appliance. The system controls a remotely actuated
top light, as well as bottom lights and fan speed each through six (6) levels.
Warning: Incorrect venturi adjustment may lead to improper combustion, which is a safety hazard.
Contact the dealer if there is any concern about the venturi adjustment.

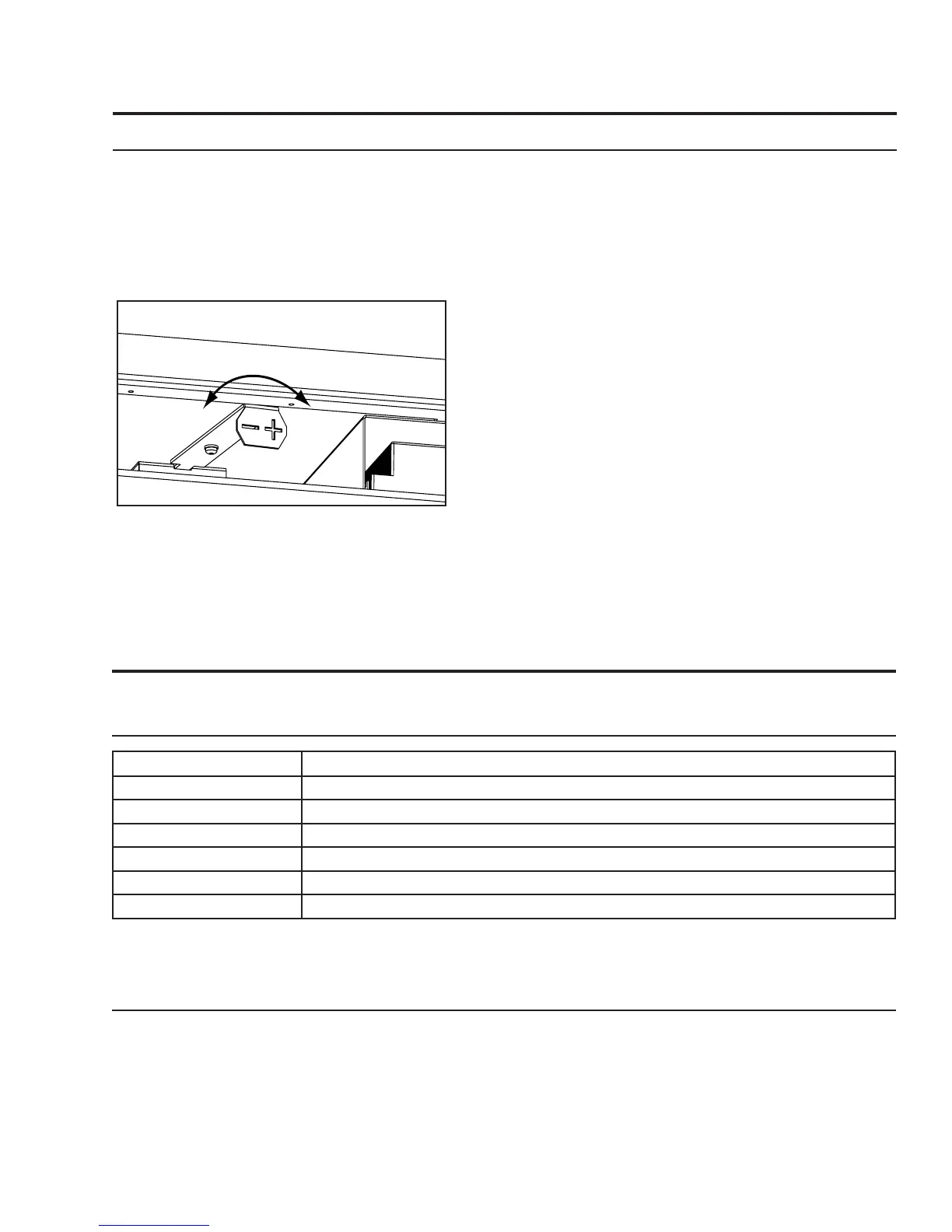

Figure 4: Adjusting the venturi air setting.
The venturi adjustment lever is located on the right side of the unit, below the door (see Figure 4).
The venturi allows the amount of air coming into the replace to be adjusted in order to accommodate
different climates and venting arrangements. Start the pilot and then the burner. Make sure the pilot
ame is burning normally and none of the burner ports are plugged. Let the replace burn for roughly
fteen (15) minutes and then examine the ames. The ideal ame will be blue at the base and light
orange above. The ames should be of medium height. If
the ames look like this, no venturi adjustment is needed.
If the ames are fairly short and mostly blue, the replace
is getting too much air. Therefore, the air shutter should
be closed (push left) slightly until the correct ames are
achieved. Flames that are very orange, with tall dark
stringy tips are not getting enough air. Open (push right)
the venturi until the ames clean up. If the venturi is
opened, then closed all the way, and the correct ames
cannot be attained, turn off the gas and contact the
dealer.
Less Air
More Air
