Secondary Installation
optionaL 3 anD 4 siDeD tRimmabLe paneLs:
Modifying the Surround Panel:
Trimmable Surround Panels are large rectangular panels that may be cut for use in cases that a non-standard
replace opening (e.g. an arched opening) is to be lled. Optionally this surround can be left uncut and placed
in front of the replace opening.
1. Measure the replace opening and/or make a template of the replace opening.
2. Transfer the measurement to the Trimmable Surround.
3. If desired, offset the measurements by approximately
1
/8” (3mm) to the inside; this will allow for the panel
to be placed just inside the replace opening for a cleaner appearance.
4. Cut along the preferred line (from direct measurements of offset) and remove any sharp edges.
5. The panel can be touched up with a high temperature metallic black paint available from your dealer.
INSTALLATION:

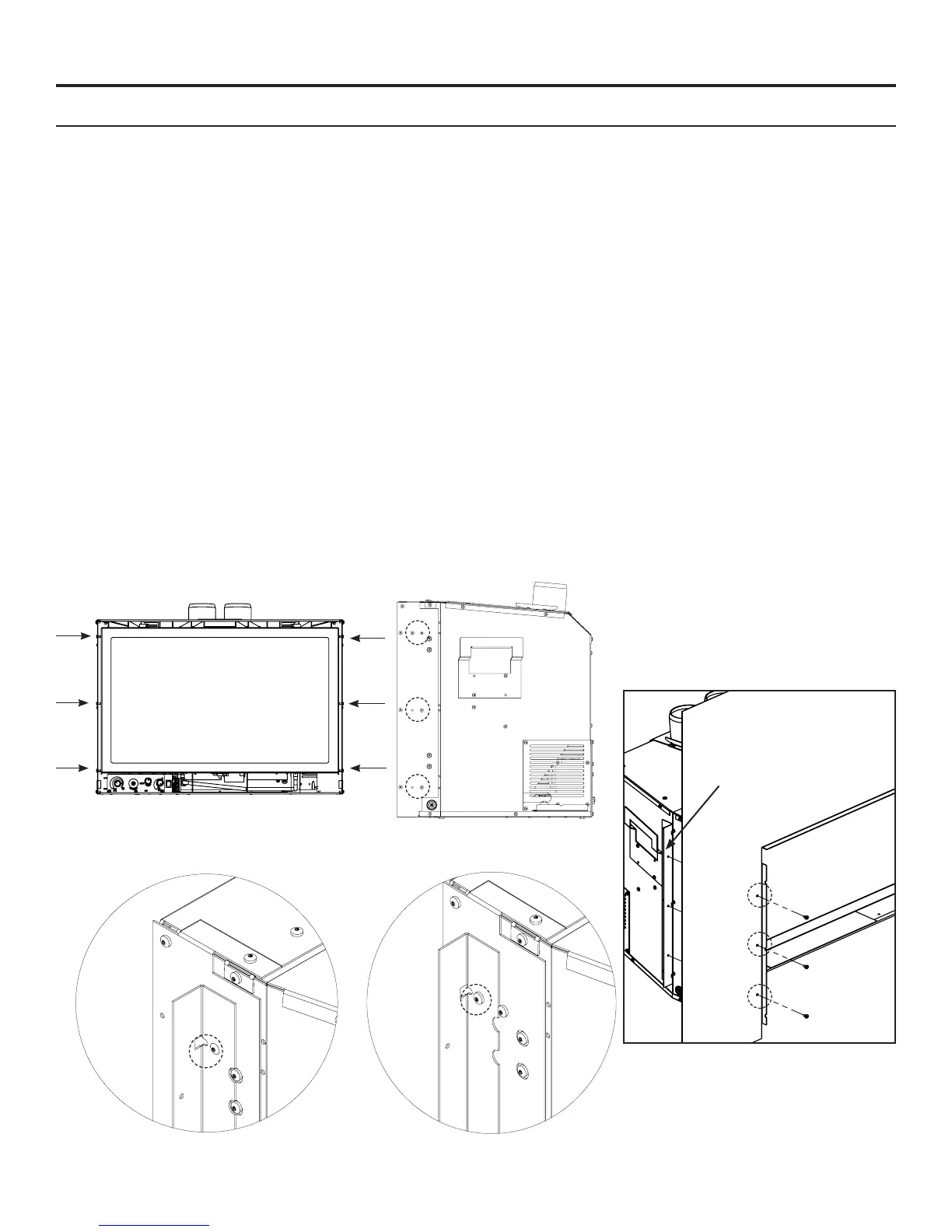

1. Install the two Trimmable Panel brackets onto the unit using a T-20 Torx screwdriver. See Figures 40-44.
for the screw installation locations. There are three sets of hole patterns on cabinet side depending on which
Surround Panel is being installed. See Figures 42 and 43.
Figure 40: Screw
Installation Locations.
Figure 42: Installation for Contemporary
and Extruded Surround.
Figure 41: Screw
Installation Locations.
Figure 43: Installation
for Regular Surround.
DATE: 13/01/2012
BY
SHERWOOD INDUSTRIES LTD.
INTERNAL ASSEMBLY MANUAL
STATION:
THIS DRAWING IS THE PROPERTY OF SHERWOOD INDUSTRIES LTD. AND MAY NOT BE COPIED, REPRODUCED, OR OTHERWISE DISCLOSED WITHOUT THE PRIOR APPROVAL OF SHERWOOD INDUSTRIES LTD.
STEP:
1 of 1
SHEET:
E30 Master
PART NUMBER:
UPDATED: ----/--/--
BY
--
STATION 1
STATION 3
STATION 4
STATION 2
Figure 44: Screw
Installation Locations.
Installed Brackets
NOTE: The Extruded and Contemporary Surround Panels use the same holes for mounting the Side Cabinet
Extensions. The Regular Surround Panel uses its own set of holes.
