Initial Installation
QUALIFIED INSTALLERS ONLY

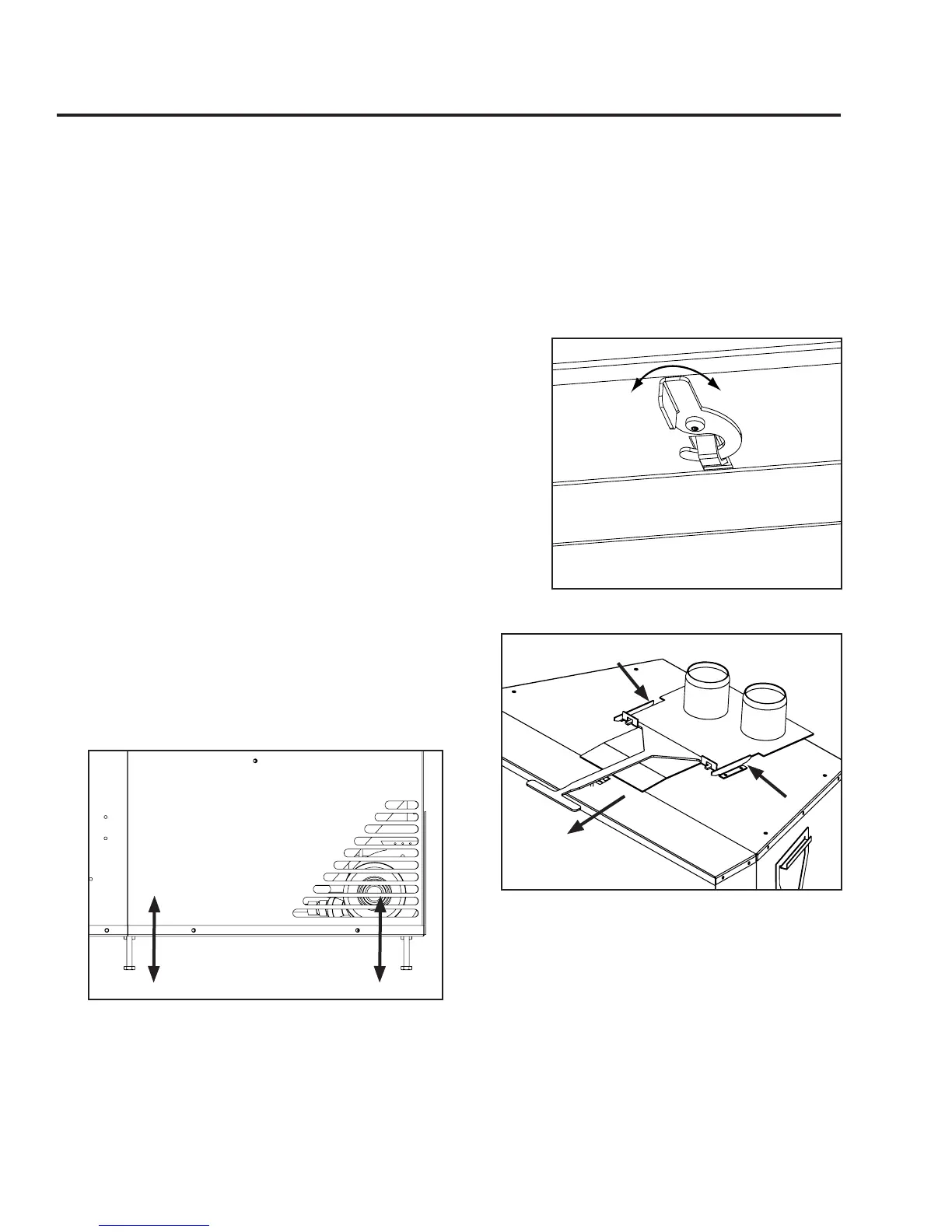

Figure 31: Levelling Legs Position.
10. If the replace opening is lower than 24” (610 mm), remove the vent collar plate from the top of
the insert by unlatching the hook located on the center top of the stove above the door opening (see
Figure 29). Slide the collar plate backwards. Properly secure the vent collar plate to the exible vent
pipe liner(s) previously installed in the chimney. Be careful not to over-stretch the liner(s).
11. Apply a bead of stove cement sealant to the top section of the Ø3” (76mm) exhaust vent collar plate.
Slide the Ø3” (76mm) ex vent over the ue collar and secure with three (3) sheet metal screws
evenly spaced.
Figure 29: Vent Collar Plate Latch.
Unlatch
Latch
12. Place a bead of high temperature silicone on the intake collar
of the replace, slide the Ø3” (76mm) ex intake liner over the
collar, secure the ex liner with three (3) sheet metal screws
evenly spaced.
13. Place the unit part way into the replace. Connect the gas
line to the ⅜” NPT tting on the right side of the unit using
locally approved methods (see
InItIal InstallatIon - gas lIne
ConneCtIon). Route the power cord so it can be connected to
the power supply.
14. As you push the unit into its nal position in the replace, if
the vent collar plate was removed, reinstall it on the stove by
pulling it into the brackets on top using the supplied tool and
latch it back in place (shown in Figure 30).
15. Adjust the levelling legs to ensure the unit is level
and high enough if a base shelf and/or riser is to be
installed. There are four levelling legs on the bottom of
the unit (shown in Figure 31).
Figure 30: Vent Collar Plate Tool.
Pull
Brackets
