Secondary Installation
INSTALLATION OF LOG SET AND EMBERS:
The placement of the logs is not arbitrary.
If they are positioned incorrectly, the
ames can be “pinched” and will not burn
correctly. The burner come with four (4)
locator pins, and the right log has two (2)
ledges which make alignment easier. Using
the pictures provided, carefully set the logs
in place.
NOTE: The logs are fragile and should
be handled gently.
CAUTION: Use only the type of ember
material supplied with this appliance. Due
to the irregular size of the ember material
there may be more than required. The use
of other foreign materials on the burners
may create dangerous conditions.
If over time, through cleaning and
servicing, these embers require
replacement, contact the nearest ENVIRO
dealer for replacement embers.
1. Carefully remove logs from box. Check
to ensure there is no damage. It is very
important to install all logs in their proper
position to insure safe, optimum operating
conditions.
2. Place the log set into the rebox.
Locate each log by seating it down onto
the burner tray support pins. Follow
Figures 43 to 49 proper log placement.
Placement for
Front Left Log
Placement Pin
for Center Log
Placement Pin for Left Rear Log

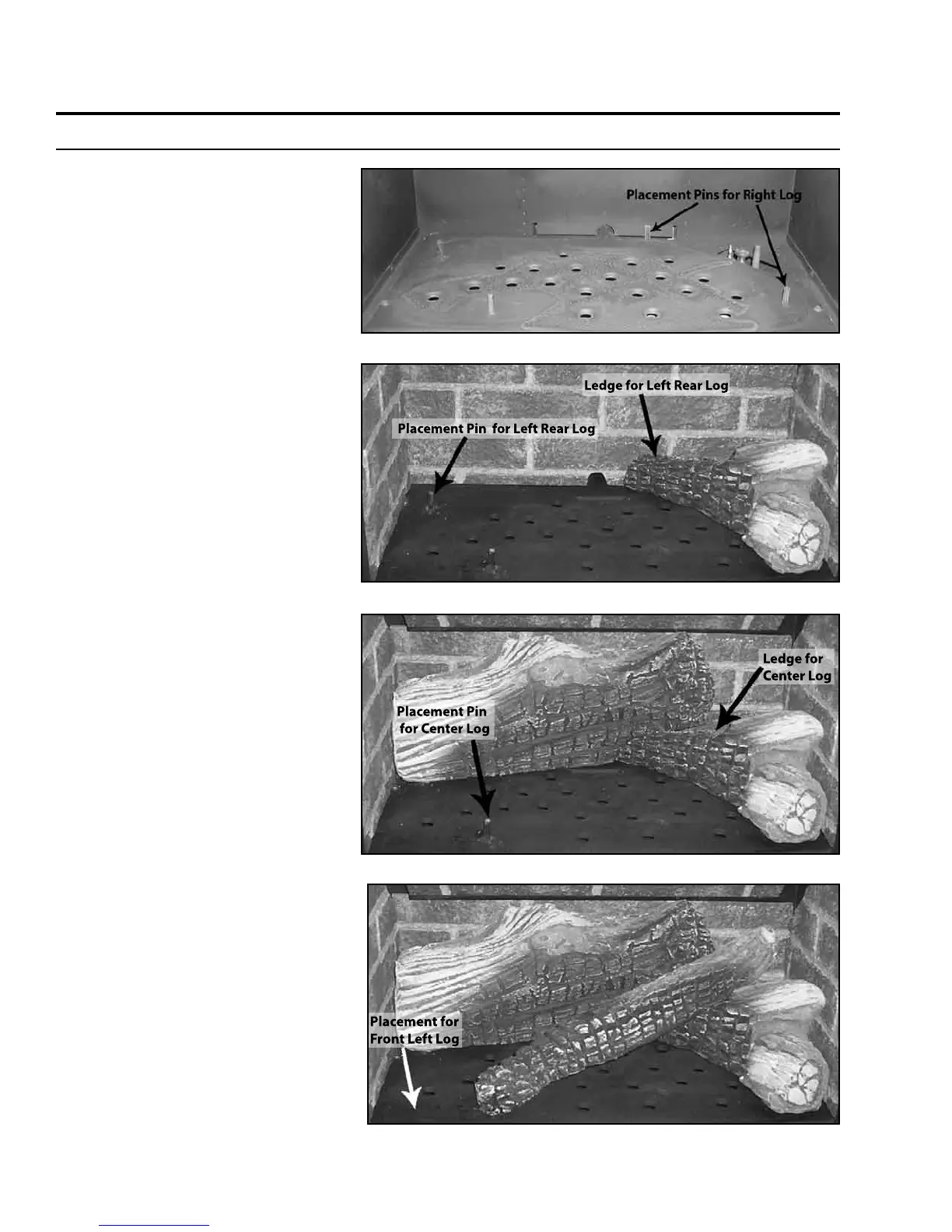

Figure 43: Step 1 of Log Placement.
Figure 44: Step 2 of Log Placement.
Figure 45: Step 3 of Log Placement.
Figure 46: Step 4 of Log Placement.
To Next Page
