Secondary Installation

INSTALLATION OF PANEL SET:

The brick panel set is fragile. Handle panels with care and avoid knocking them on

the placement pins or any other object.

1. Insert two (2) screws, using a ” socket or a at head screwdriver, half way in to the two (2) holes along the

bottom of the bafe. Slide the slots of one (1) of the s-bent brackets (see Figure 51) over the screws.

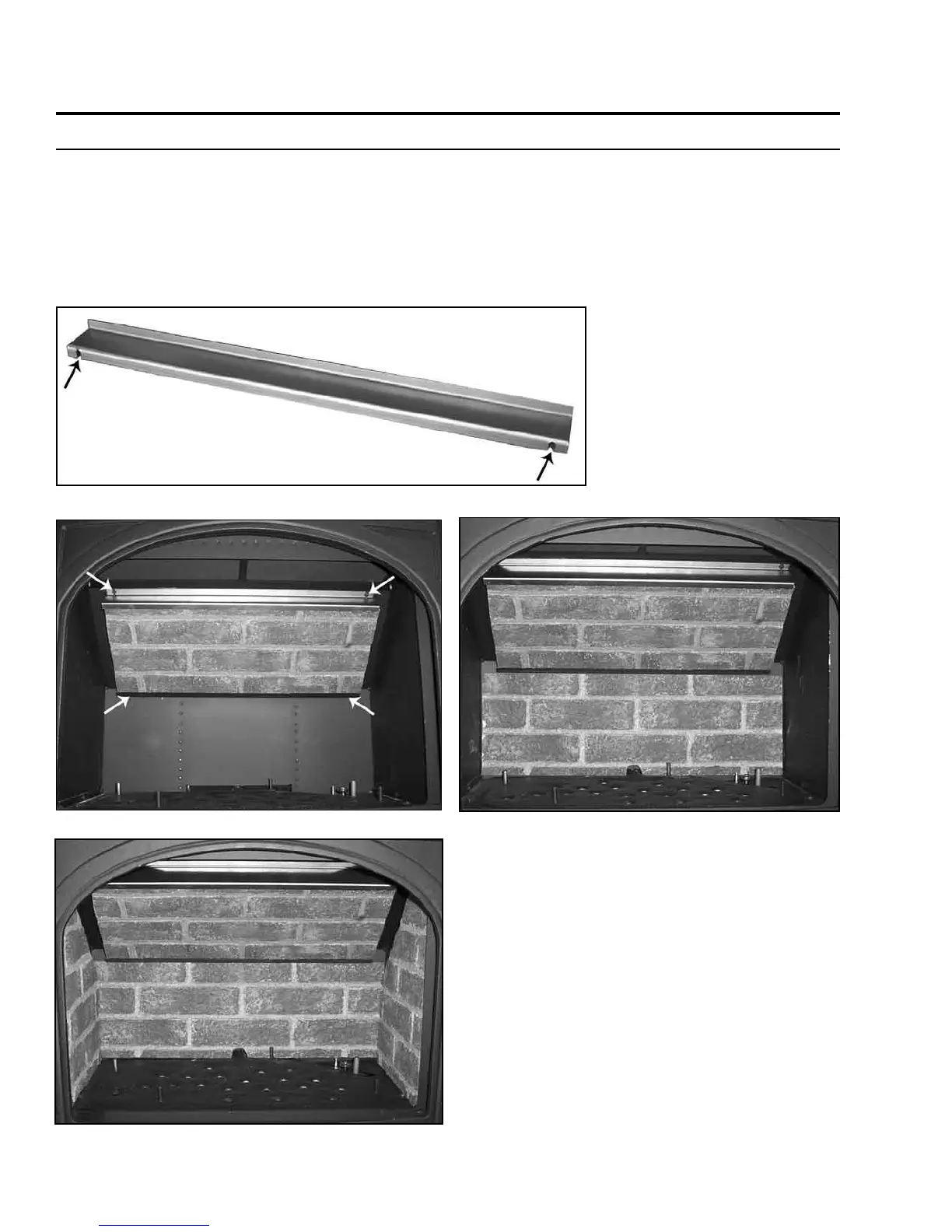

Figure 52: Top brick panel in place, screws shown. Figure 53: Back brick panel in place.

Figure 54: Side brick panels in place.

Figure 51: Brick panel s-bent bracket, slots shown.

2. Slide the top brick panel into the

bottom bracket and place the

other s-bent bracket over the top

of the panel and line up the slots

on the bracket with the holes at

the top of the bafe. Use two

(2) screws to hold the bracket

in place. Ensure the top panel

is centered before tightening the

four (4) screws completely. Refer

to Figure 52.

3. Slide the bottom brick panel into place under/behind

the top panel bracket, notched side is to rest on the

rebox bottom. The panel should rest ush with the

back of the rebox. Refer to Figure 53.

4. Slide each side brick panel into place along the sides

of the rebox. The panels should rest ush with the

back panel and the sides of the rebox. Refer to

Figure 54.
