ENVISION RESIDENTIAL INSTALLATION MANUAL
Moving and Storage
Move units in the normal “up” orientation. Horizontal units may be moved and stored per the information on the packag-
ing. Do not stack more than three units in total height. Vertical units may be stored one upon another to a maximum height
of two units. Do not attempt to move units while stacked. When the equipment is received, all items should be carefully
checked against the bill of lading to be sure all crates and cartons have been received. Examine units for shipping damage,
removing the units from the packaging if necessary. Units in question should also be internally inspected. If any damage is
noted, the carrier should make the proper notation on the delivery receipt, acknowledging the damage.
Unit Location
 Locatetheunitinanindoorareathatallowsforeasyremovalofthelterandaccesspanels.Locationshouldhave
enoughspaceforservicepersonneltoperformmaintenanceorrepair.Providesufcientroomtomakewater,electrical
andductconnection(s).Iftheunitislocatedinaconnedspace,suchasacloset,provisionsmustbemadeforreturnair
tofreelyenterthespacebymeansofalouvereddoor,etc.Anyaccesspanelscrewsthatwouldbedifculttoremoveafter
the unit is installed should be removed prior to setting the unit. On horizontal units, allow adequate room below the unit for
a condensate drain trap and do not locate the unit above supply piping. Care should be taken when units are located in
unconditioned spaces to prevent damage from frozen water lines and excessive heat that could damage electrical
components.
Installing Vertical Units
Prior to setting the unit in place, remove and discard the compressor hold down
shipping bolt located at the front of the compressor mounting bracket.
 Verticalunitsareavailableinleftorrightairreturncongurations.Topairdis-
charge vertical units should be mounted level on a vibration absorbing pad slightly
largerthanthebasetoprovideisolationbetweentheunitandtheoor.Itisnot
necessarytoanchortheunittotheoor(seeright).
 Bottomowunitsshouldbemountedlevelandsealedwelltooortopreventair
leakage.Bottomowunitsrequirethesupplyairopeningtobecutatleast1/2˝larger
thantheunit’sairoutlet.Protecttheedgesofcombustibleooringwithsheetmetal
over-wrap or other non-combustible material.
WARNING: Before performing service or maintenance operations on a system, turn off main
power switches to the indoor unit. If applicable, turn off the accessory heater power switch.
Electrical shock could cause personal injury.
Installing and servicing heating and air conditioning equipment can be hazardous due to system pressure and electrical
components.Onlytrainedandqualiedservicepersonnelshouldinstall,repairorserviceheatingandairconditioningequip-
ment.Untrainedpersonnelcanperformthebasicmaintenancefunctionsofcleaningcoilsandcleaningandreplacinglters.
All other operations should be performed by trained service personnel. When working on heating and air conditioning equip-
ment, observe precautions in the literature, tags and labels attached to the unit and other safety precautions that may apply.
Follow all safety codes. Wear safety glasses and work gloves. Use a quenching cloth for brazing operations and have a
reextinguisheravailable.
Safety Considerations
General Installation Information

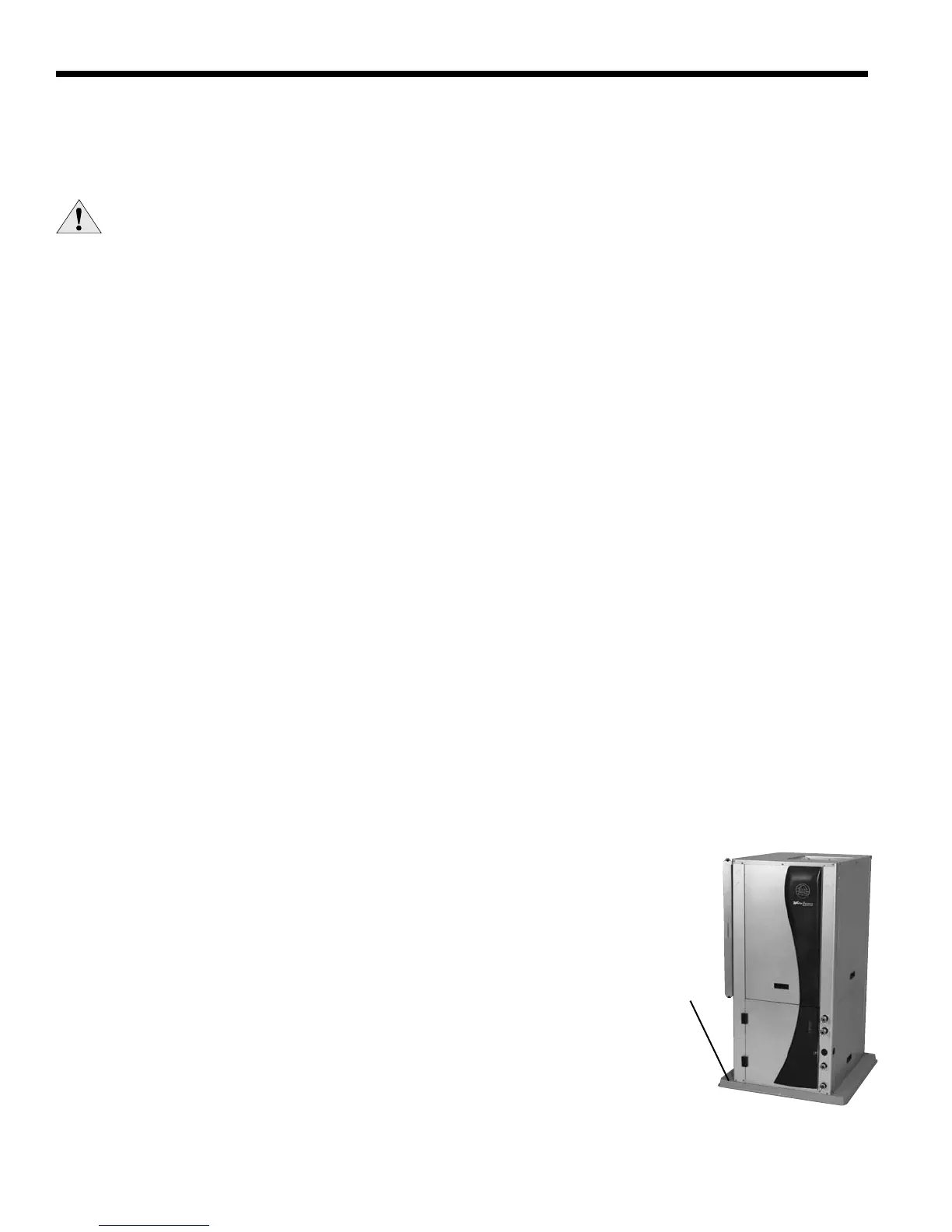

Figure 1: Vertical Unit Mounting
2” Extruded
Polystyrene
