FUEL PUMP TYPE DANFOSS BFP11 L3
Technical Data

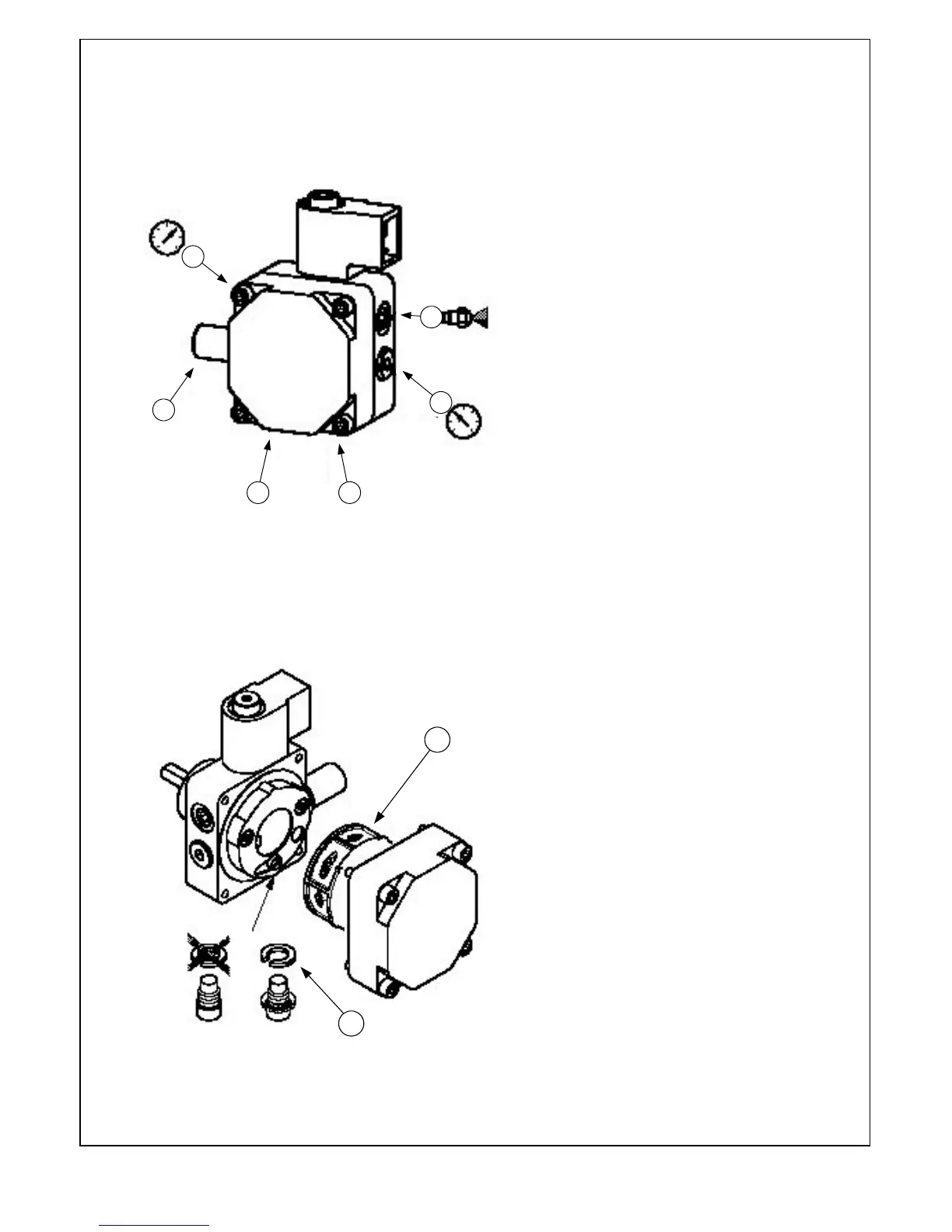

1 or 2 pipe operation
Oil Viscosity range: 1.3 – 12.0 cSt
Pressure range: 7 – 15 bar
Oil temperature: -10 - +70ºC
1 - Nozzle port 1/8”
2 - Vacuum gauge port 1/8”
3 - Suction line port 1/4”
4 - Return line port 1/4”
5 - Pressure adjustment (4mm allen key)
6 - Pressure gauge port 1/8”
The fuel filter and bypass
washer are located within the
pump housing. By removing the
4 fixing screws the housing can
be removed allowing access.
The bypass washer is located
under the bottom of the 3
internal screws.
In case of one-pipe operation
the horseshoe-shaped coppe
r
washer will be mounted unde
r
the screw head, and in case
of two-pipe operation, the
horseshoe-shaped coppe
r
washer will be removed.
1
2
3
6
5
4
2
1
⑥
⑤
①
④ ③
②
1 - Filter
2 – Bypass Washer
