ELECTRICAL INFORMATION

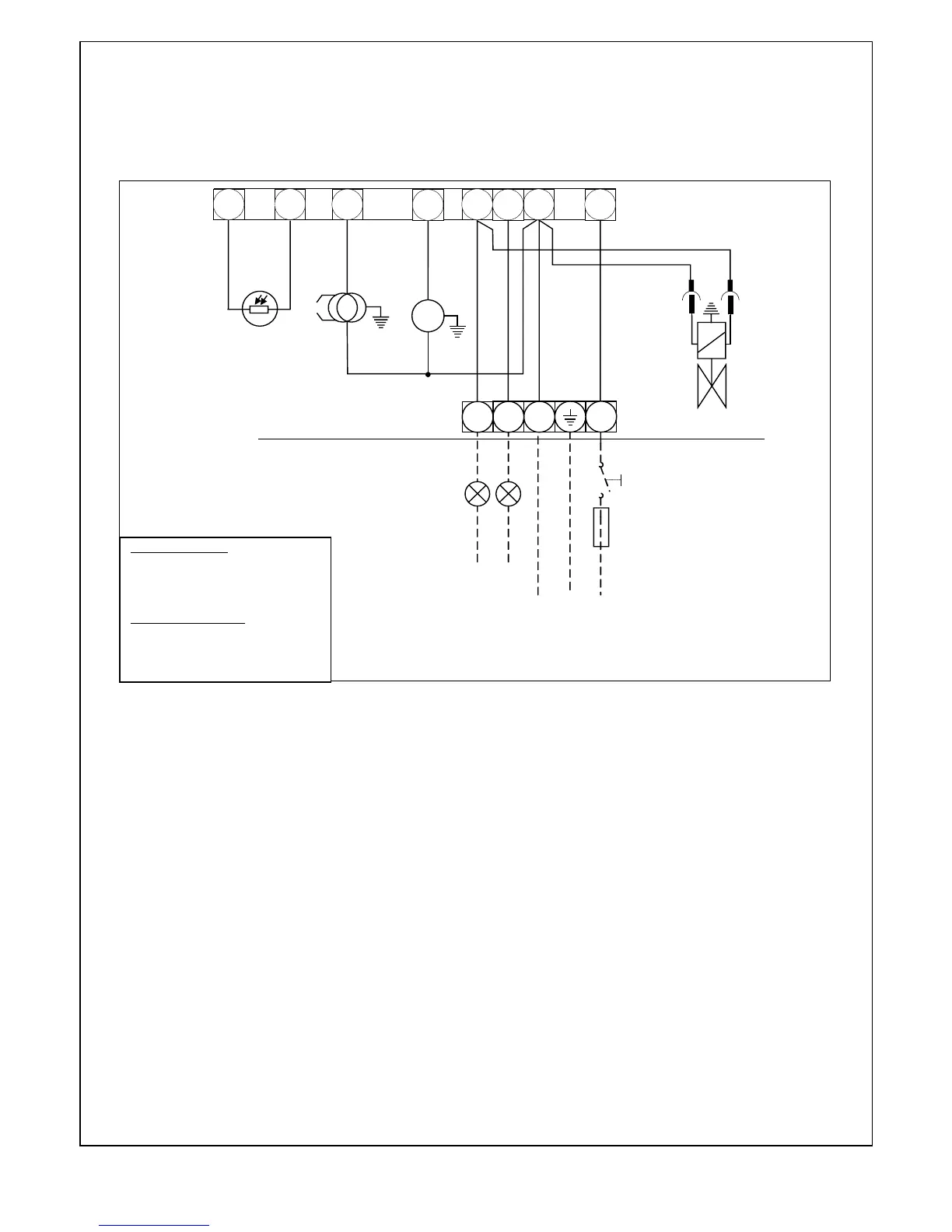

Fig B1 Wiring Diagram – (E03-002)
Technical Data
Burner Control TF830.3
Operating voltage 220/240 V (-15% - +10%) 50 Hz
Fuse rating 10 A fast, 6 A slow
Power consumption 5 VA
Pre-purge time 12 sec
Pre-ignition time 12 sec
Post ignition time 20 sec
Lockout safety time 10 sec
Reset time from lockout 90 sec
Flame detector MZ770S
Light sensitivity >6 Lux
Sensor operating current min. 30µA
Protection class IP44
Ambient temperature 0ºC …. +60ºC
Approval standard EN 230
A1
1
2
5
8
3
9
7
4
1 ~
X3 V1
M
T
PE
ENL
1 ph 230V ~ 50Hz
NN
F
H2H1
S1
L
N
S3
B4
BURNER COMPONENTS
