TECHNICAL SPECIFICATIONS

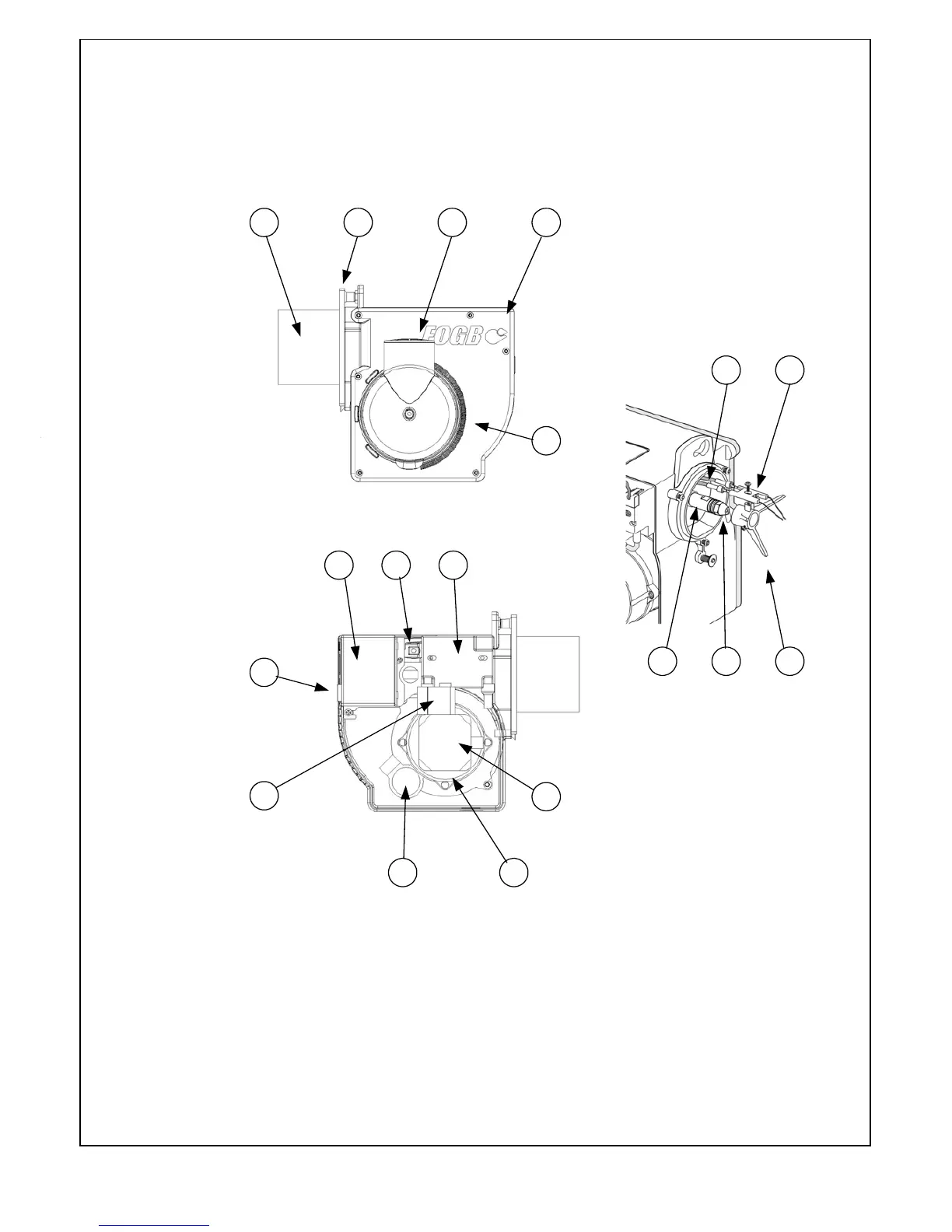

Components
1
18
17 16
15
14
13
12
11
10
9
8
7
6
5
432
① Blast tube
② Mounting flange
③ Air intake
④ Fan housing
⑤ Air adjustment
⑥ Lockout reset button
⑦ Control box
⑧ Photocell
⑨ Ignition transformer
⑩ Fuel pump
⑪ Motor
⑫ Capacitor
⑬ Solenoid valve
⑭ HT leads
⑮ Ignition electrodes
⑯ Electrode holder
⑰ Nozzle
⑱ Nozzle assembly
