RF1B Wireless Receiver CP4
V2

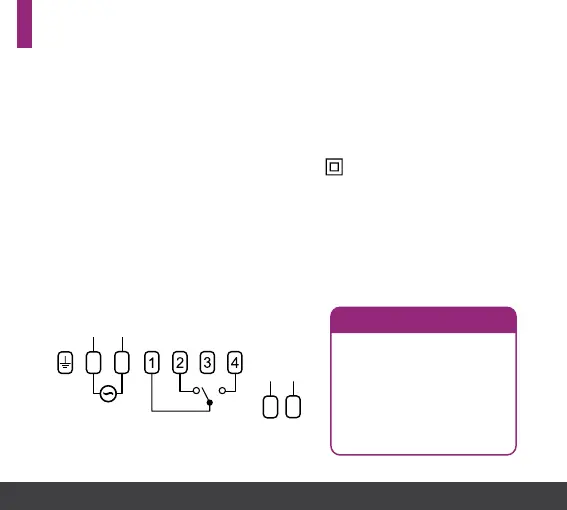

Internal wiring diagram for RF1B
Specications & Wiring
Power supply: 200 - 240Vac 50-60Hz
Contact rating: 250 Vac 10(3)A
Ambient temperature: 0 … 45˚C
Automatic action: Type 1.C.Q
Appliance classes: Class II appliance
Pollution degree: Pollution degree 2
IP Rating: IP20
Rated Impulse Voltage: Resistance to voltage surge 2500V
as per EN 60730
LN
TO
TO
COM OFF ON
200-240V~
50/60Hz
Mains Switching
- Link L to 1.
Low Voltage Switching
- Remove the external controls link
from the boiler PCB.
- Connect 1 and 4 to these terminals.
Switching Options
To Next Page
