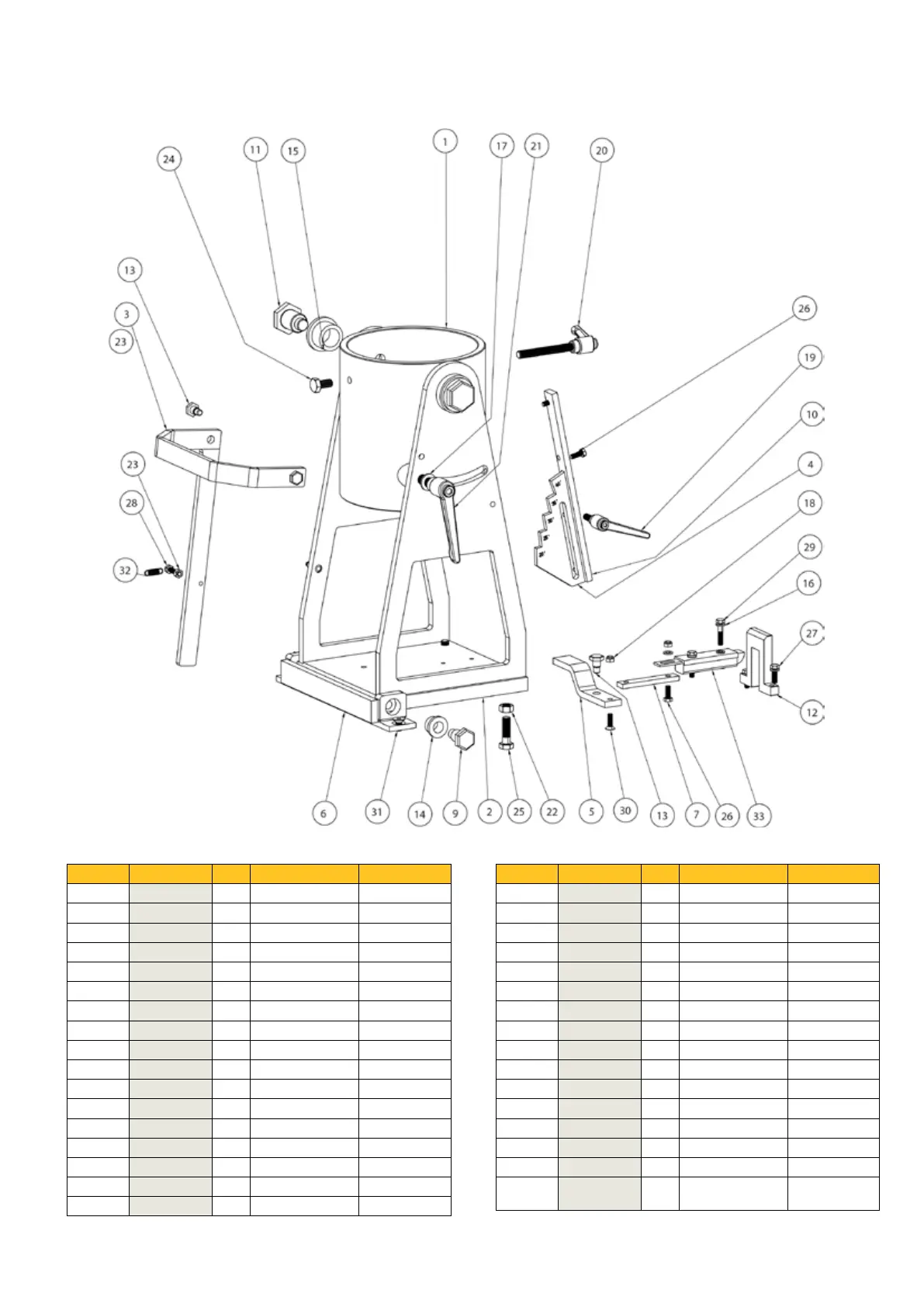

Epiroc BQ3-DTH - Page 19

19
Ref� No� Product No� Qty Description Specification
1 87002324 1 Inner holder
2 87002319 1 Outer holder
3 87003839 1 Handle bar
4 87003841 1 Angle scale
5 87003918 1 Link snap lock
6 87003845 1 Hinge plate
7 87003917 1 Link snap lock
9 87000775 2 Screw
10 87003840 1 Support
11 87002027 2 Screw
12 87003844 1 Lock shackle
13 87003919 3 Nut
14 87000127 2 Bushing
15 87001426 2 Bushing
16 87000788 5 Washer BRB 6.4
17 87000430 1 Washer BRB 13
18 87003920 2 Nut M6
Ref� No� Product No� Qty Description Specification
19 87003893 1 Locking bar
20 87002361 1 Locking bar
21 87002360 1 Locking bar
22 87000185 2 Nut M10
23 87000838 1 Nut M6
24 87004210 1 Screw 10x20
25 87000449 2 Screw 10x35
26 87001899 5 Screw 6x16
27 87000145 2 Screw 6x20
28 87001338 1 Screw 6x25
29 87000829 2 Screw 6x30
30 87000421 1 Screw 6x20
31 87003912 4 Screw 8x15
32 87003764 1 Spring 1x8x25
33 87003892 1 Snap lock
87003836 1 Clamping device
Complete
Ref. 1-33
Bit holder for DTH and COPROD bits
