Epiroc BQ3-DTH - Page 18

18

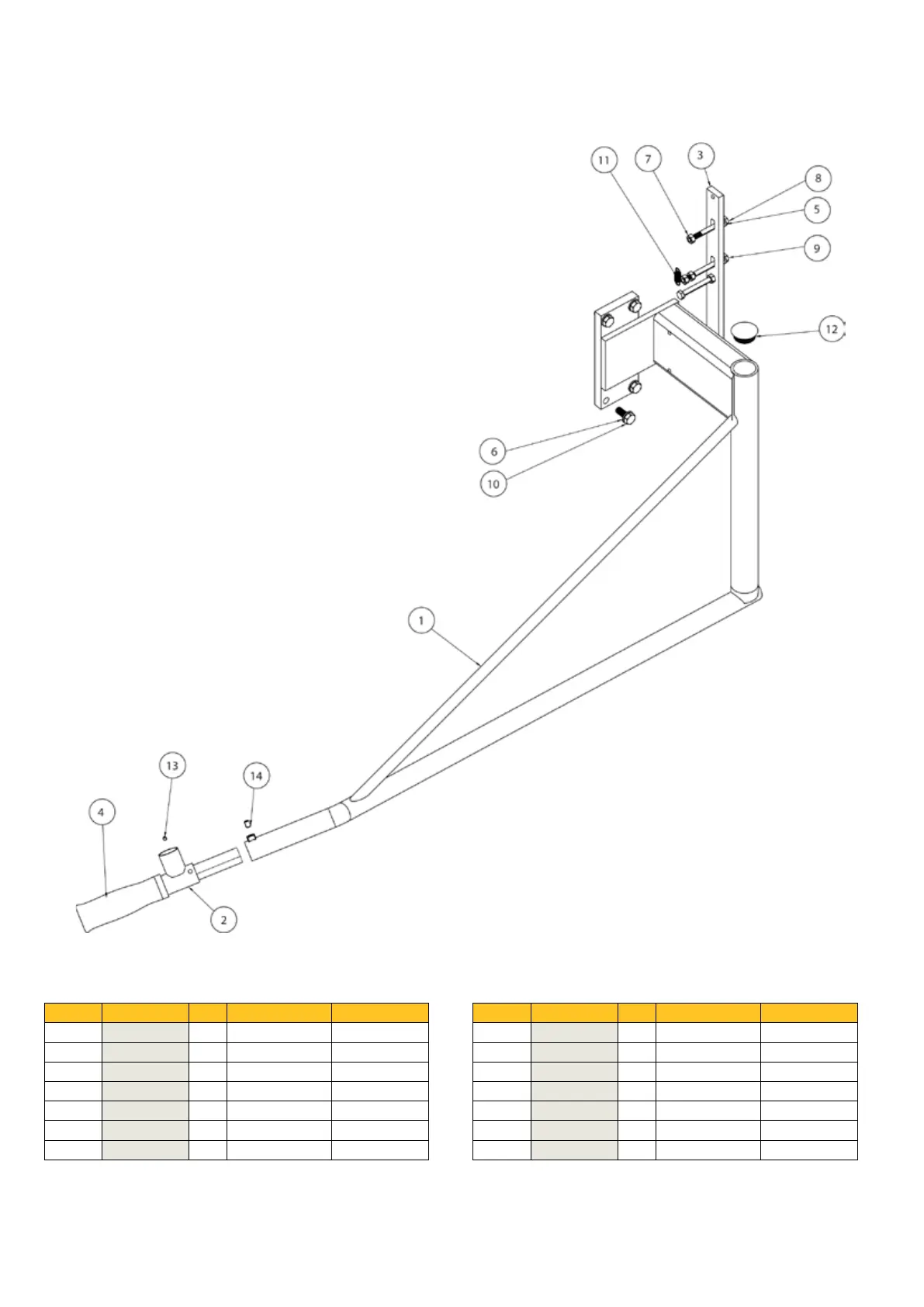

Lifting arm
Ref� No� Product No� Qty Description Specification
1 87004747 1 Arm
2 87004649 1 Handle
3 87003773 1 Bar
4 87001888 1 Rubber grip
5 87000788 2 Washer BRB 6.4
6 87000131 4 Washer BRB 8.4
7 87000838 4 Nut M6
Ref� No� Product No� Qty Description Specification
8 87004748 1 Screw 6x 55
9 87004749 2 Screw 6x65
10 87001071 4 Screw 8x20
11 87003764 1 Spring 1x8x25
12 87004750 1 Plug Ø 25
13 87004289 1 Screw 4x5
14 87003430 1 Screw 6x8
