Epiroc BQ3-DTH - Page 17

17

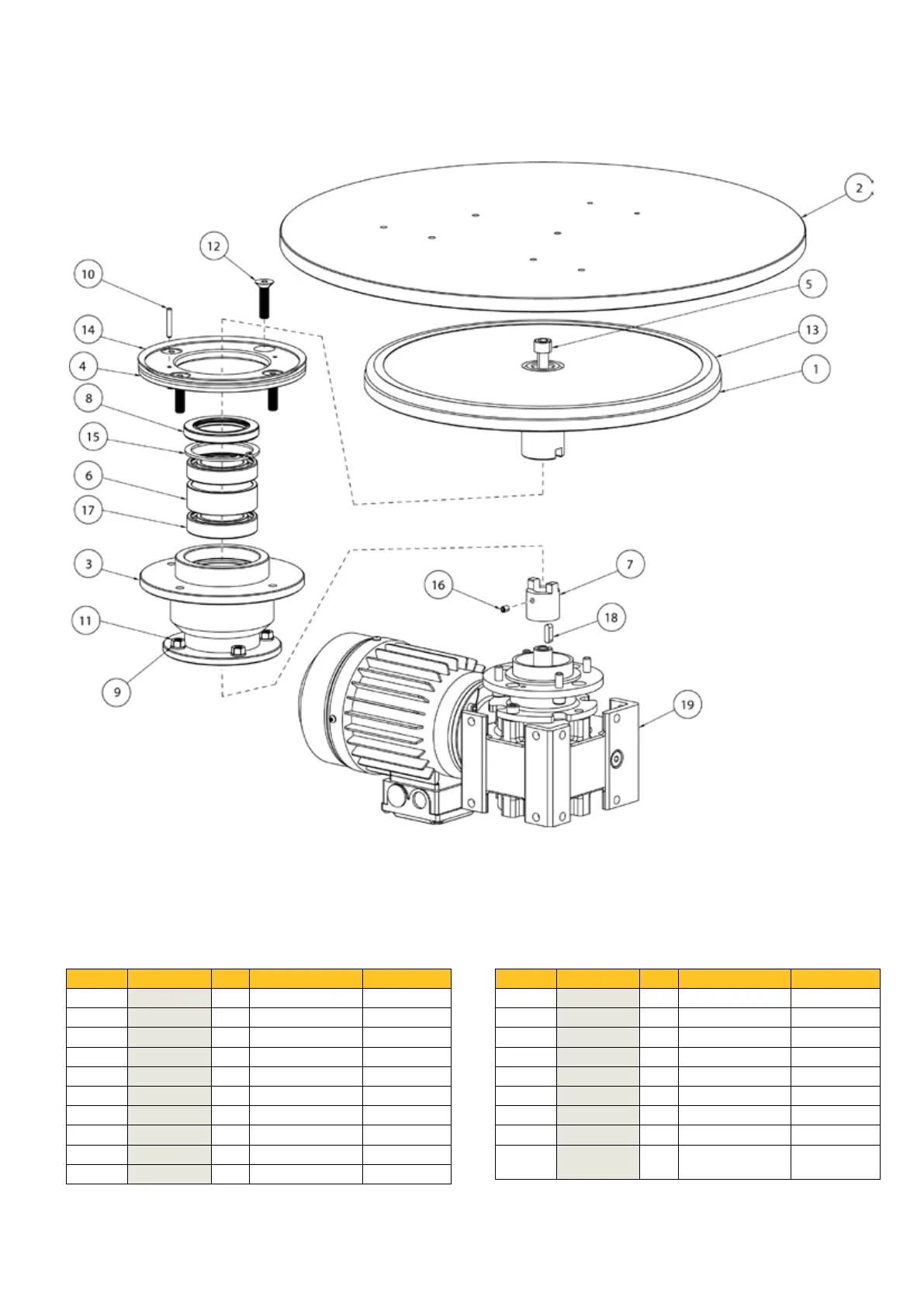

Rotating table
Ref� No� Product No� Qty Description Specification
1 87004626 1 Dog
2 87003858 1 Grinding disc
3 87003852 1 Bearing housing
4 87003853 1 Washer
5 87003854 1 Screw
6 87003855 1 Spacer ring
7 87004058 1 Claw sleeve
8 87004625 1 Radial sealing
9 87000131 4 Washer BRB 8.4
10 87001998 2 Tension pin 5x32
Ref� No� Product No� Qty Description Specification
11 87000496 4 Nut M8
12 87000174 4 Screw 10x40
13 87001482 1 O-ring 340x11
14 87003894 1 V-ring Vl-180
15 87003880 1 Circlip SgH 75
16 87003430 1 Screw 6x8
17 87001424 2 Ball bearing
18 87000846 1 Wedge 6x6x20
19 87003891 1
Motor and gear-
box
