Epiroc BQ3-DTH - Page 16

16

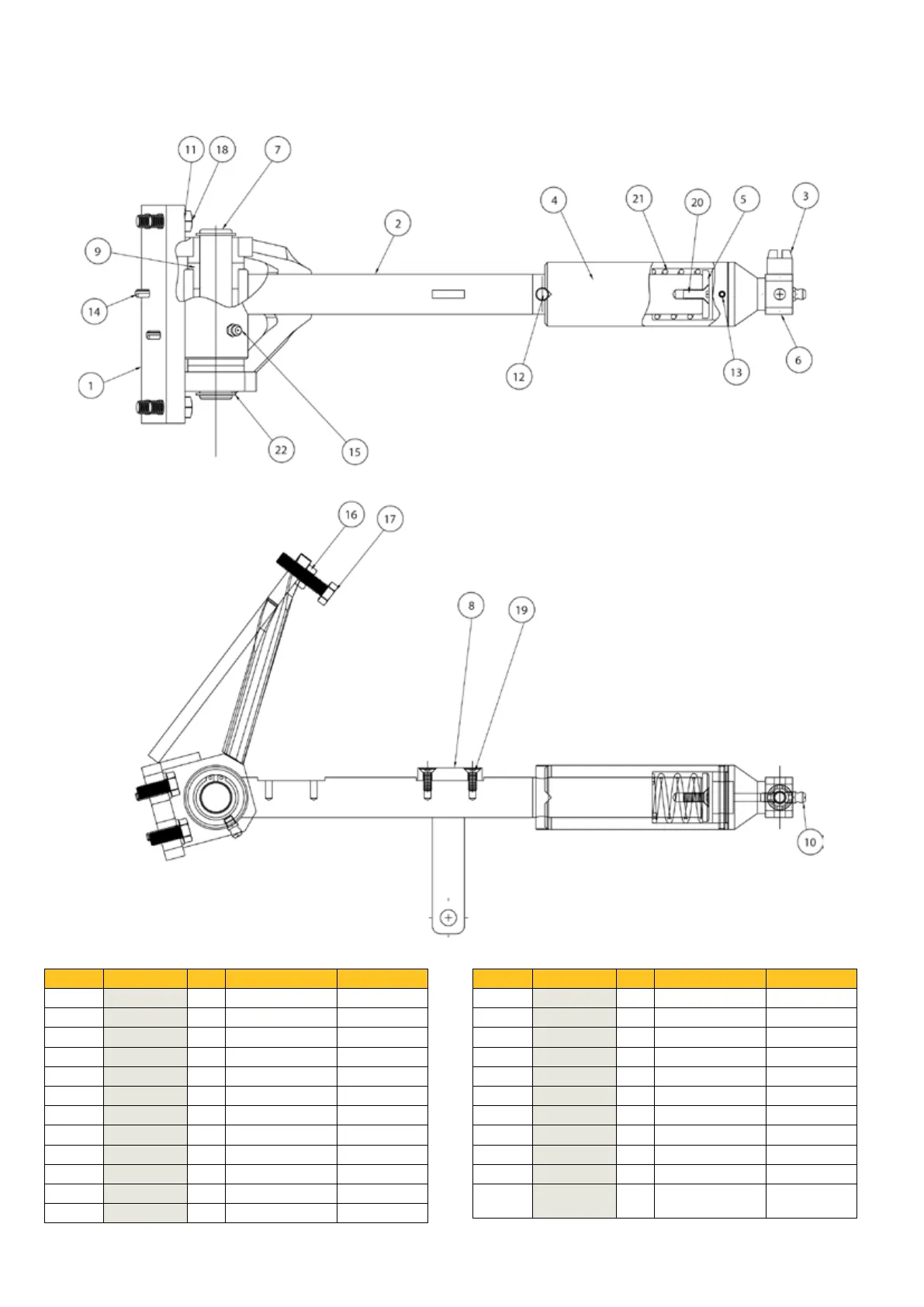

Centring device
Ref� No� Product No� Qty Description Specification
1 87004746 1 Bracket
2 87003850 1 Centering arm
3 87001387 1 Centering cup 16 mm
4 87003586 1 Turning sleeve
5 87003582 1 Lock washer
6 87003585 1 Centering head
7 87003583 1 Shaft
8 87003573 1 Stop lug
9 87000527 4 Bushing
10 87004014 1 Grease nipple M6
11 87000131 4 Washer BRB 8.4
12 87003581 1 Cylindrical pin 8x40
Ref� No� Product No� Qty Description Specification
13 87003579 1 Tension pin 4x40
14 87001333 2 Tension pin 6x20
15 87004015 1 Grease nipple M6
16 87001703 1 Nut M8
17 87003707 1 Screw 8x1x35
18 87001071 4 Screw 8 X 20
19 87003576 2 Screw 5x14
20 87000453 1 Screw 6x16
21 87003578 1 Spring 3x25x40
22 87003577 2 Circlip SgA 20
87004745 1
Centering device
complete
Ref 1-22 (ref
3 incl.)
