Safety and operating instructions
© Anbaufräsen PC GmbH | 3390 5221 01 | 2020-09-07
Original Instructions
49

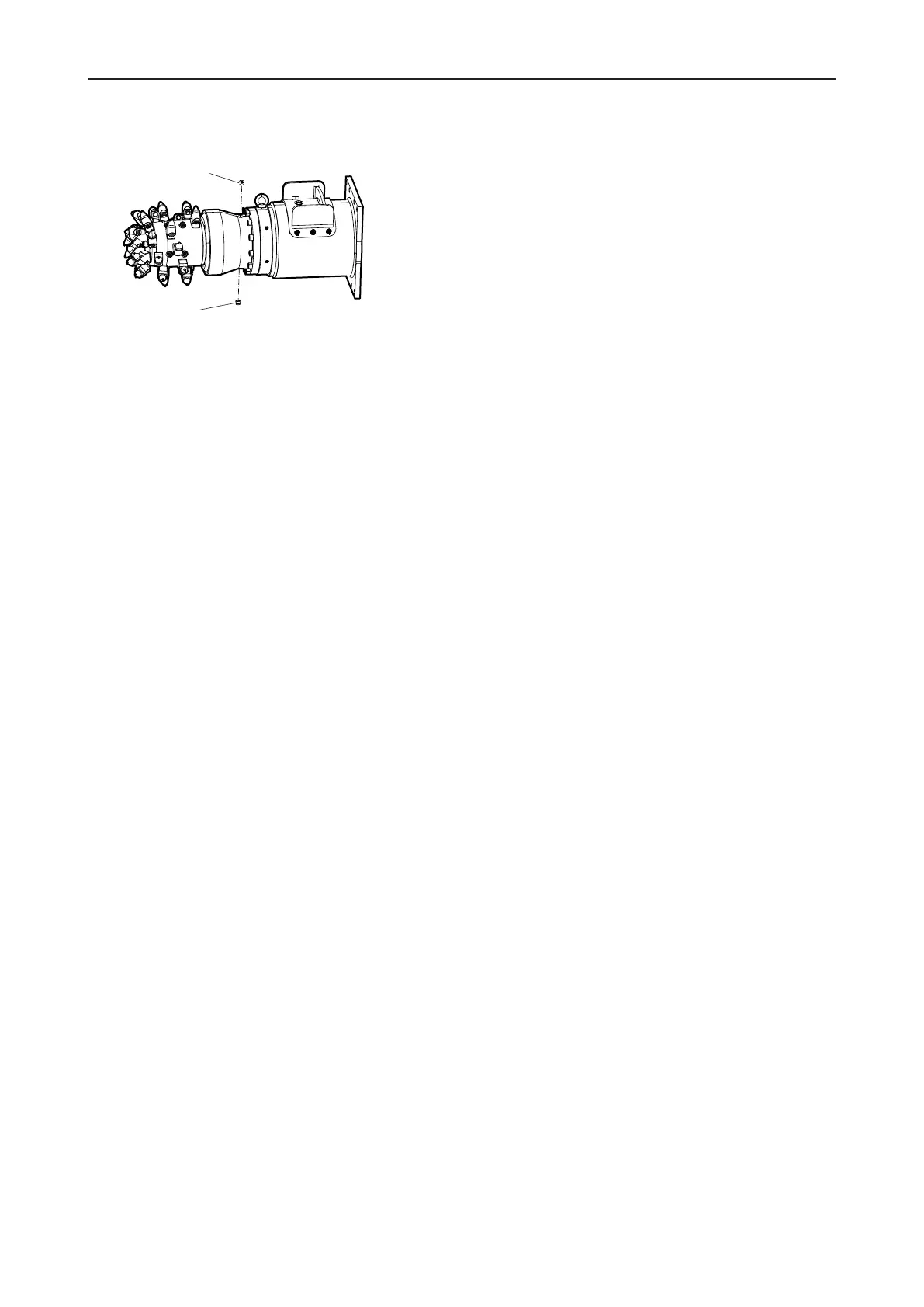

7.8.2 Preparation
A. Oil filler screw
B. Oil drain plug (only ER100L, ERL700, ERL1100)
n
Position the drum cutter horizontally on the assembly
stand.
n
Switch off drum cutter and safeguard.
7.8.3 Drain off gear oil
n
Position the oil receiver tank beneath the oil drain
plug.
n
Carefully loosen the oil filler screw(A) using an Allen
key and allow any pressure in the gear to drop.
Any available oil pressure will drop.
n
Fully unscrew the oil filler screw(A).
Note: It is important that the oil filler screw(A) is un-
screwed first. This allows the oil to run off more
quickly and effectively.
n
Loosen and unscrew the oil drain plug(B) using an
Allen key.
Note: The oil drain plug (B) is located exactly oppo-
site the oil filler screw (A).
n
Allow the oil to fully drain off.
n
Clean the oil drain plug (B) and opening with a cotton
cloth.
Note: The oil drain plug (B) and oil filler screw (A) are
fitted with a magnet that attracts metal filings.
n
Check the oil drain plug (B) for metal particles, if nec-
essary remove.
n
Screw in the oil drain plug (B) and tighten using an
Allen key.
n
Dispose of used oil in accordance with the applicable
environmental regulations.
7.8.4 Fill up gear oil
n
Clean the oil filler opening with a cotton cloth.
n
Fill up gear oil as per the specifications (see chapter
Media/consumables). Gear oil volumes (see chapter
Technical specifications).
Note: It is important to fill until the oil is level with the
oil filler screw with the drum cutter in a vertical posi-
tion (cutter drums down). Always check that the sys-
tem has been correctly filled with the drum cutter in-
stalled on the carrier.
n
Clean the oil filler opening with a cotton cloth.
n
Screw in the oil filler screw and tighten using an Allen
key.
n
Clean the drum cutter (see chapter Cleaning).
