7.10.1 Replace round attack pick with
knock on retainer
The following special equipment is required to replace
the round attack picks:
• Mounting tool for knock on retainer
• Dismantling tool for knock on retainer
The special equipment is included in the scope of deliv-
ery.

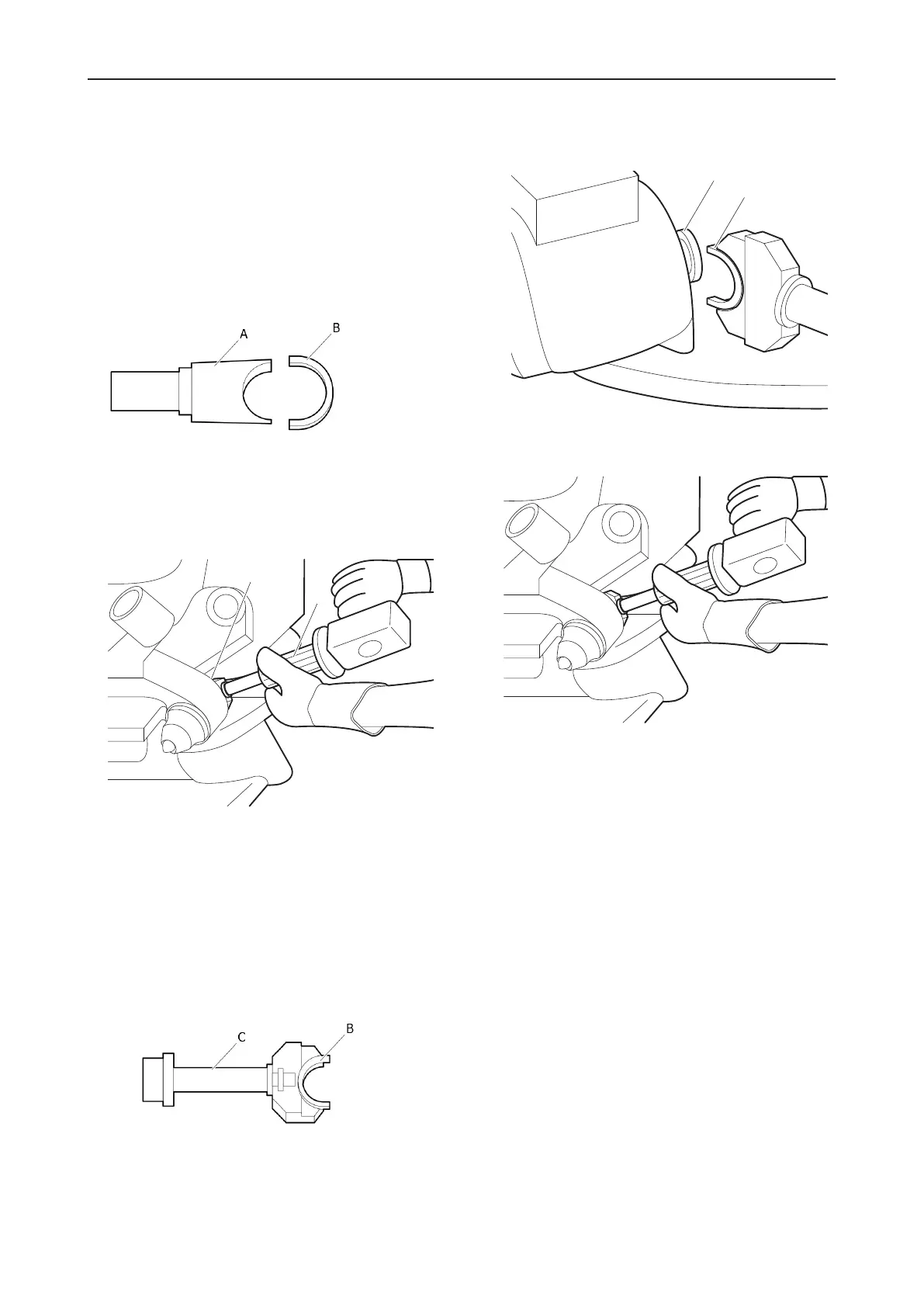

A. Dismantling tool
B. Knock on retainer
1.
Place the dismantling tool(A) with the semi-circular
opening onto the opening of the knock on re-
tainer(B).
2.
Remove the knock on retainer(B) with a forceful
hammer blow onto the dismantling tool(A).
3.
Pull round attack pick out of the pick box.
4.
Clean the pick box.
5.
Insert a new round attack pick.
6.
Place a new knock on retainer(B) in the mounting
tool(C).
Note: The retainer of the mounting tool is magnetic
and holds the knock on retainer.
7.
Place the mounting tool with the knock on retainer(B)
on the pick shaft(D).
8.
Drive in the knock on retainer with a forceful hammer
blow onto the mounting tool.
