Safety and operating instructions
58 © Anbaufräsen PC GmbH | 3390 5221 01 | 2020-09-07
Original Instructions
n

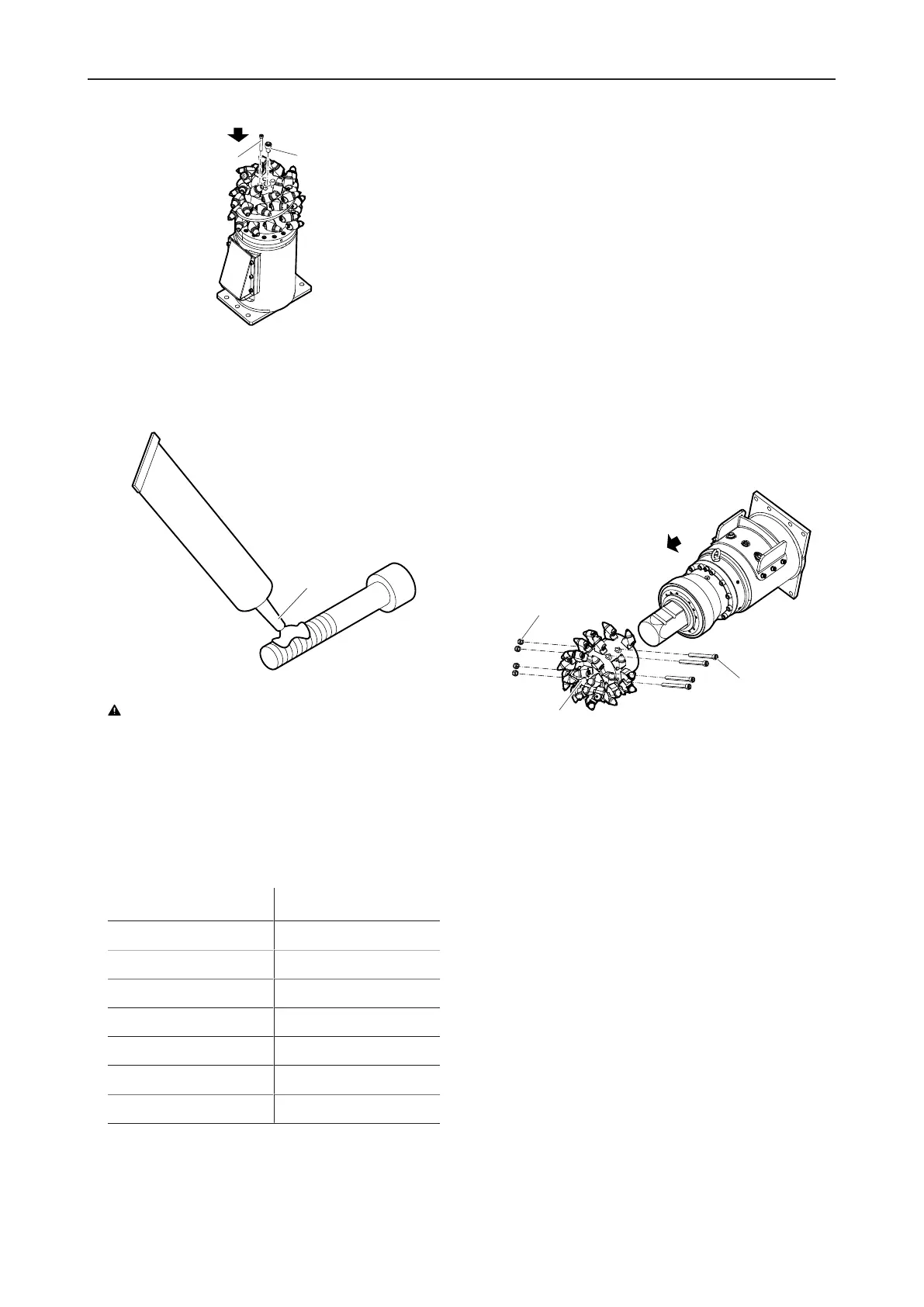

Insert and tighten the facing screw screws.
n
Apply thread locking adhesive(K) to the screw
threads of the fastening screws(A).
WARNING Risk of fatal injury due to a failure to
observe the required tightening torques
Accidents can happen due to negligence and these
can lead to severe injuries or damage to property.
u Tighten the fastening screws with the required
tightening torque.
n
Insert the fastening screws(A) and tighten crosswise
with the required tightening torque.
Type Tightening torque
ER 100 L 120 Nm (89 ft lbs)
ER 250 L 300 Nm (221 ft lbs)
ER 400 L 300 Nm (221 ft lbs)
ER 450 L 300 Nm (221 ft lbs)
ER 600 L 560 Nm (413 ft lbs)
ER 1500 L 950 Nm (701 ft lbs)
ER 2000 L 1400 Nm (1033 ft lbs)
7.11.3.2 Assemble cutter drum ERL700,
ERL1100
Actual details may differ.
Note: The drum cutter is attached to the carrier.
n
Place the cutter drum on a level working area with
sufficient bearing strength.
n
Switch on the carrier and push the hexagon of the
drive shaft fully into the cutter drum(E). The holes of
the cutter drum(E) must flush with the notches of the
hexagon of the drive shaft.
n
Switch off the carrier.
n
Secure the carrier such that it cannot move unexpect-
edly.
n
Fit the fastening screws(P) and nuts(O).
n
Fix the fastening screws(P) and nuts(O) and tighten
as required.
7.12 Checking hydraulic lines
n
Secure the carrier such that it cannot move unexpect-
edly.
n
Perform a visual inspection of all lines (pipes and
hoses) from the pump to the hydraulic attachment
and back to the tank, before starting work.
n
Tighten loose bolted connections and hose clamps to
the torque required (see Chapter Bolted connec-
tions / tightening torques).
n
Replace damaged pipes and/or hoses.
