Safety and operating instructions
© Anbaufräsen PC GmbH | 3390 5221 01 | 2020-09-07
Original Instructions
81
13 Appendix

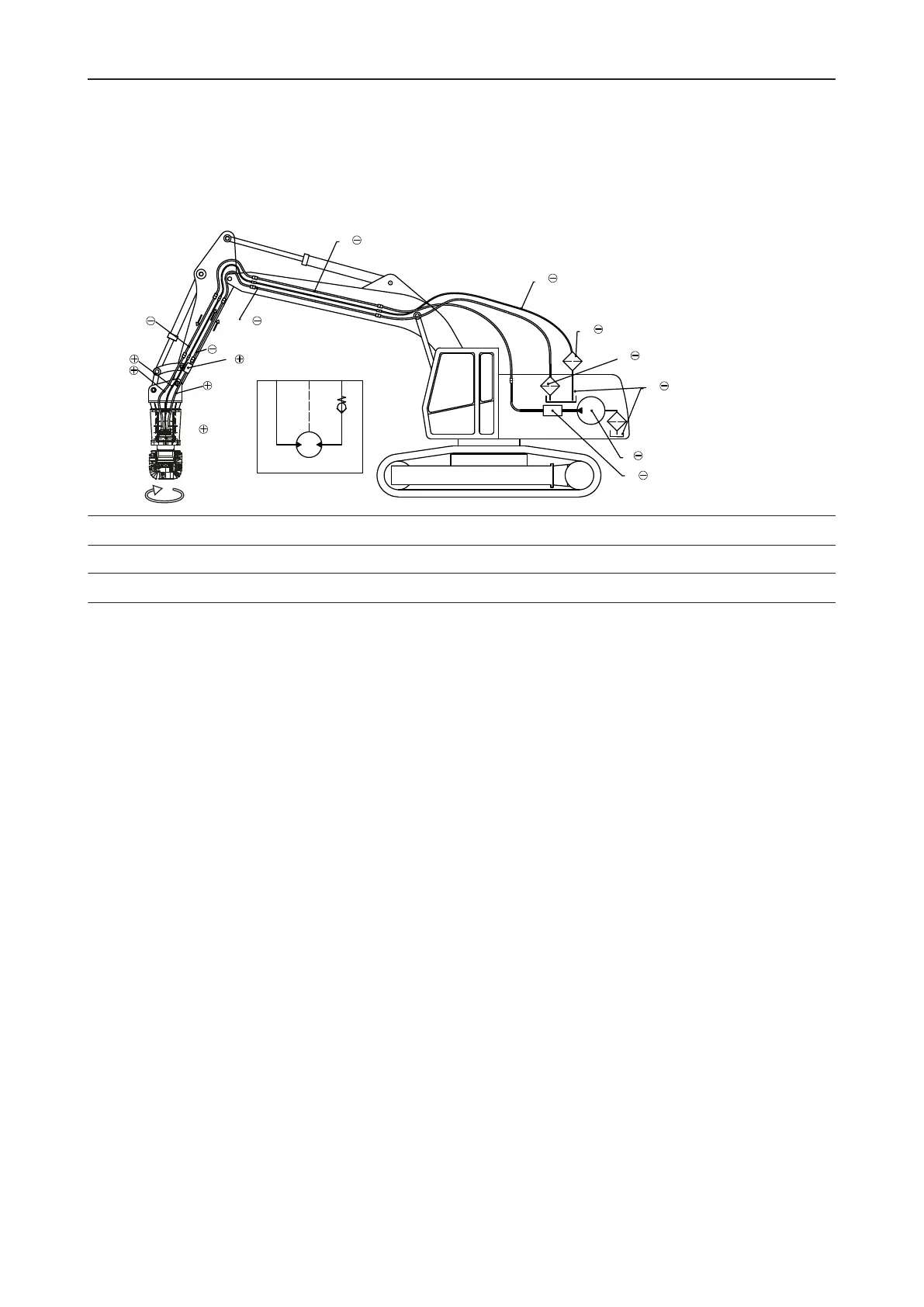

13.1 Hydraulic installation version 1 for hydraulic hammer
A
min. 5 bar
72.5 PSI
HP LP
C
D
E
F
G
J
B
H
I
- Parts not included in the scope of delivery
+ Parts included in the scope of delivery
HP = high pressure, LP = low pressure
A. Pressure line (High pressure HP) 350 bar (5075 psi) max., Q = X l/min (Y gal/min)
B. Leakage oil line, Leakage oil pressure 3 bar (43.5 psi) max.
C. Additional leakage oil filter
D. Tank line filter
E. Oil tank
F. Oil pump
G. Valve block
H. Hydraulic motor
I. Check valve 8 bar (116 psi)
J. Tank line (Low pressure LP)
